Troubleshooting Flowchart - Shift Control System
Troubleshooting Flowchart - Shift Control System

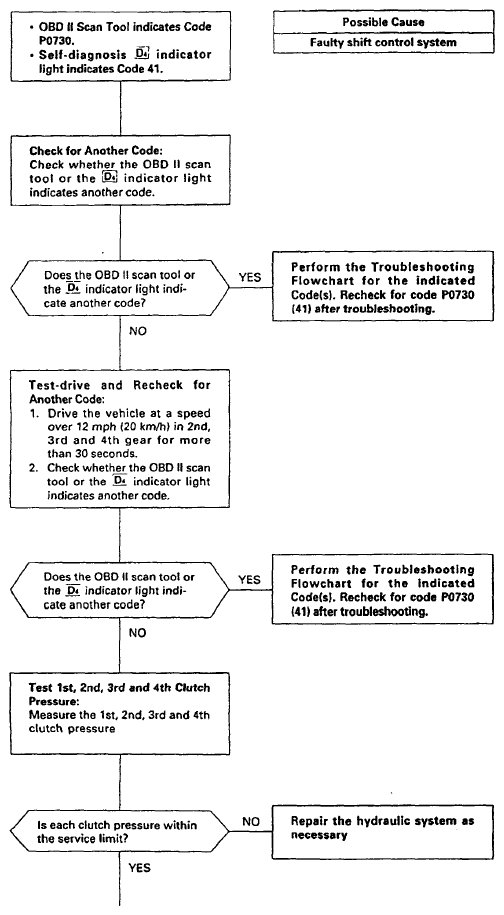

Fig 1: Troubleshooting Flowchart - Shift Control System (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

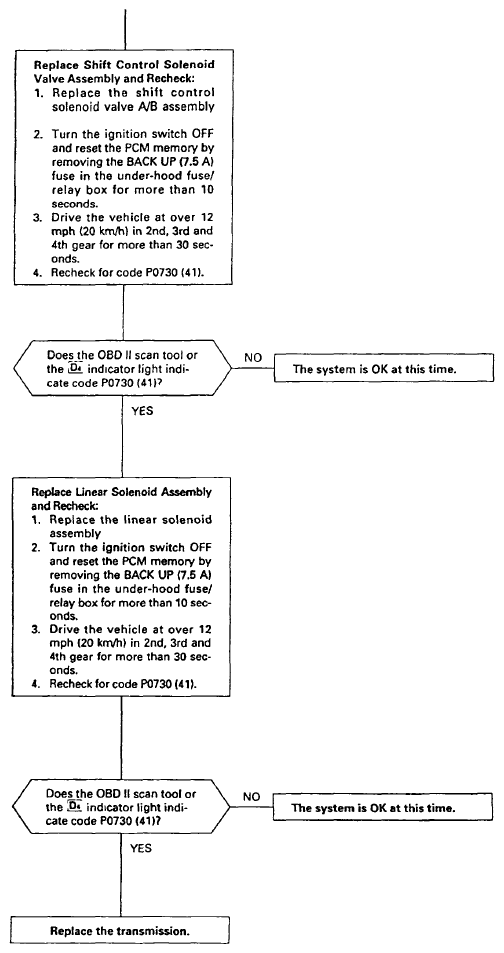

Fig 2: Troubleshooting Flowchart - Shift Control System (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
