Countershaft Assembly: Index

Prior to reassembling, clean all the parts in solvent, dry them and apply lubricant to any contact surfaces. The 3rd, 4th, and 5th gears, however, should be installed with a press before lubricating them.

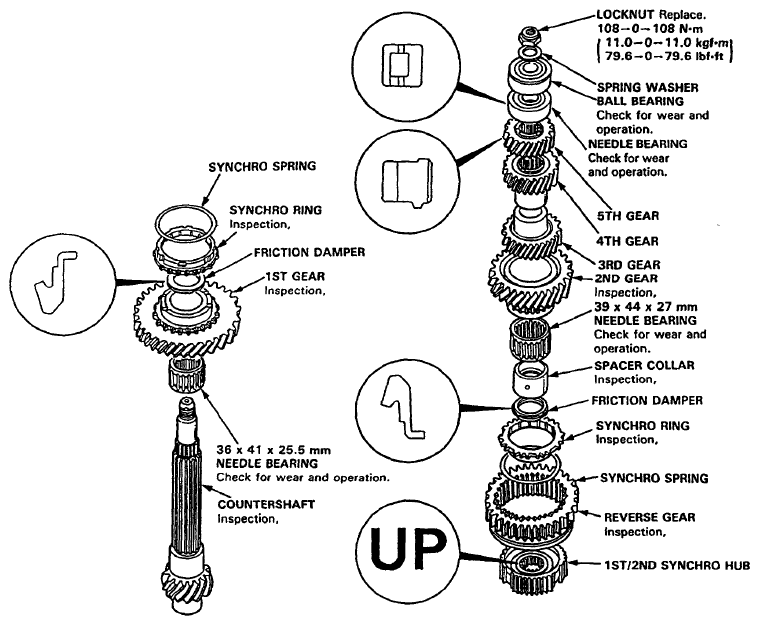

Fig 1: Countershaft Assembly Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
