Mainshaft Assembly: Index

Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact surfaces. The 3rd/4th and 5th synchro hubs, however, should be installed with a press before lubricating them.

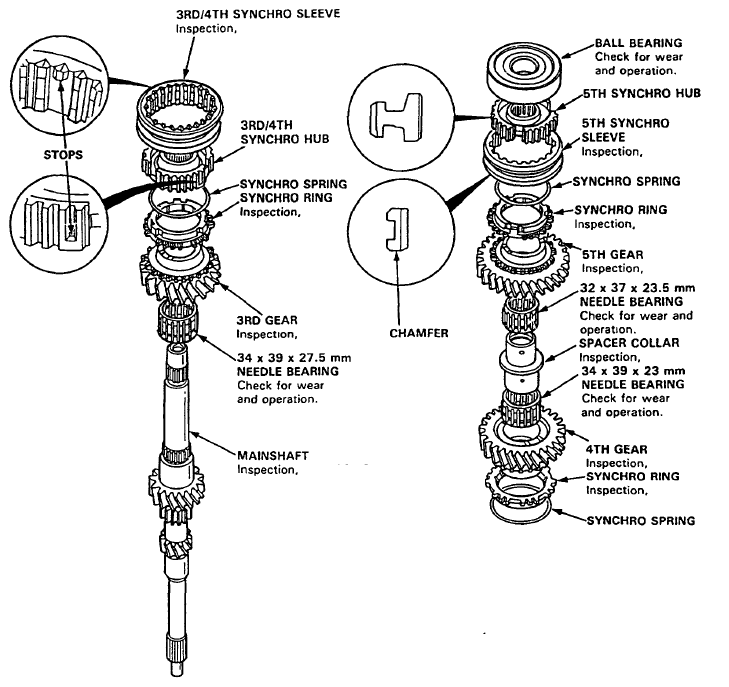

Fig 1: Exploded View Of Mainshaft Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
