Under-hood Fuse/Relay Box
›
1998-2000 Model
1998-2000 Model

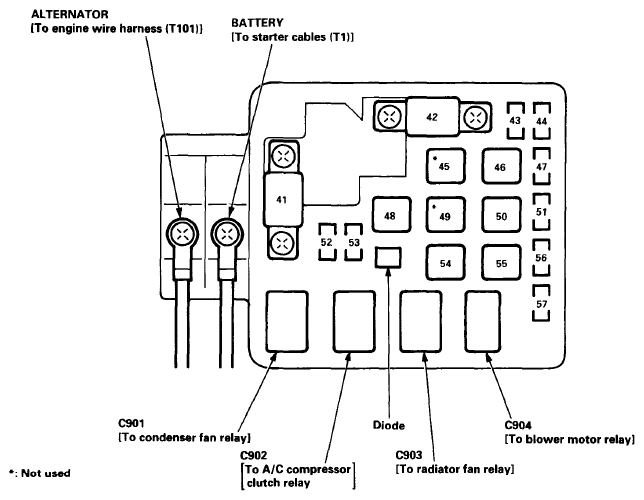

Fig 1: Identifying Under-Hood Fuse/Relay Box
NOTE:
View from the backside of the under hood fuse/relay box.
Fig 2: Identifying Under-Hood Fuse/Relay Box
