Component Locations: Index

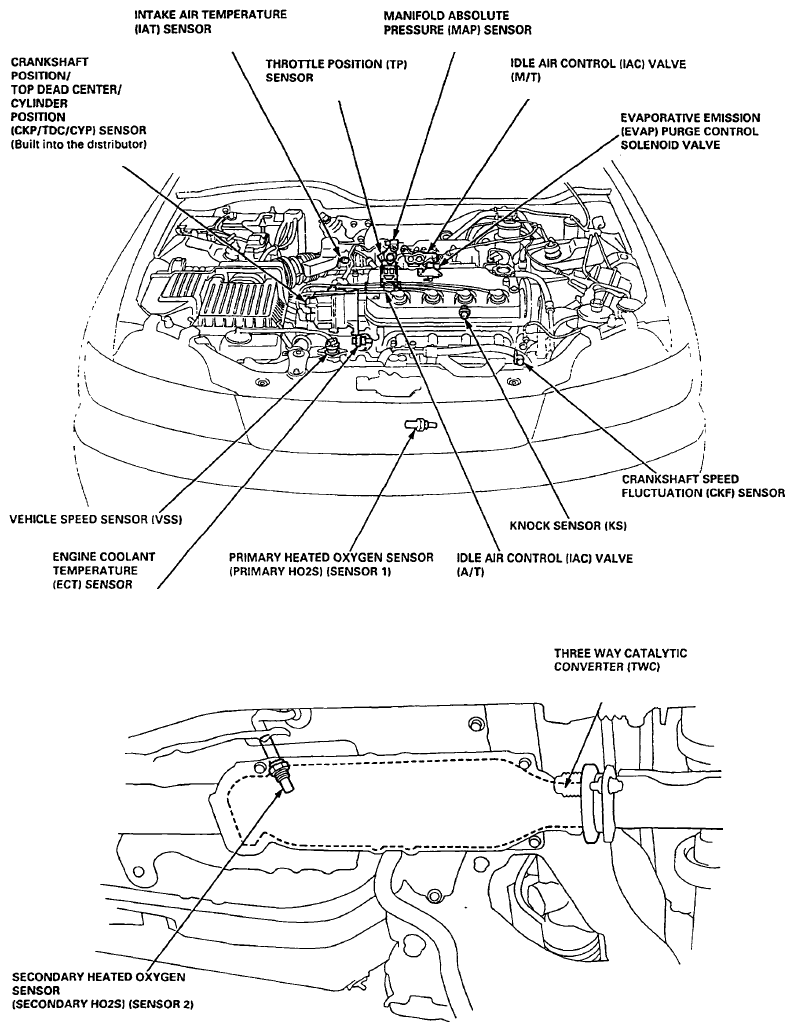

Fig 1: Identifying Vehicle Sensor Component Locations (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

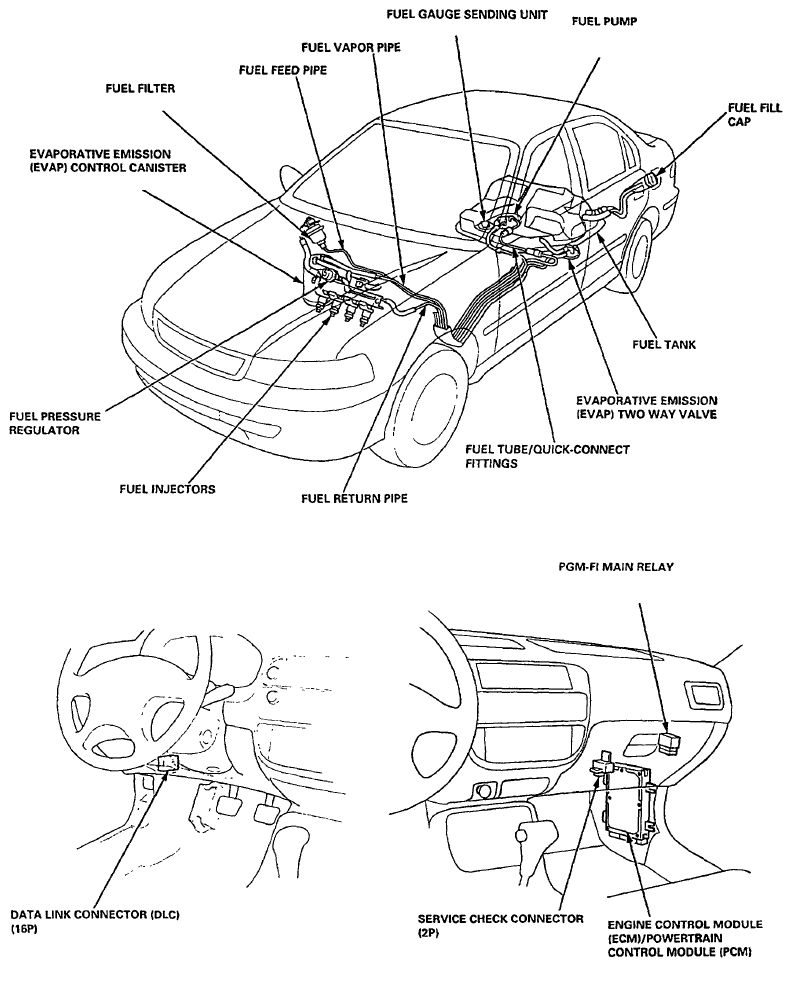

Fig 2: Identifying Vehicle Sensor Component Locations (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

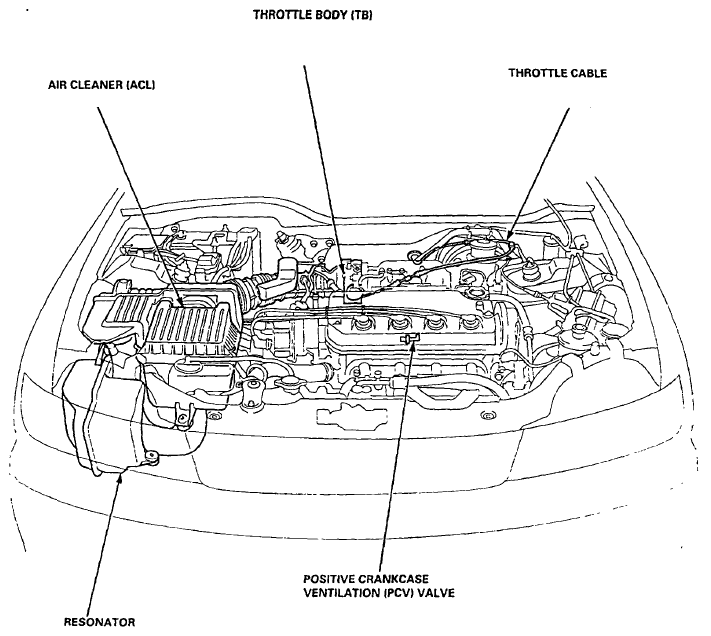

Fig 3: Identifying Vehicle Sensor Component Locations (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
