Brake Switch Signal
›
1999-2000 Models
1999-2000 Models

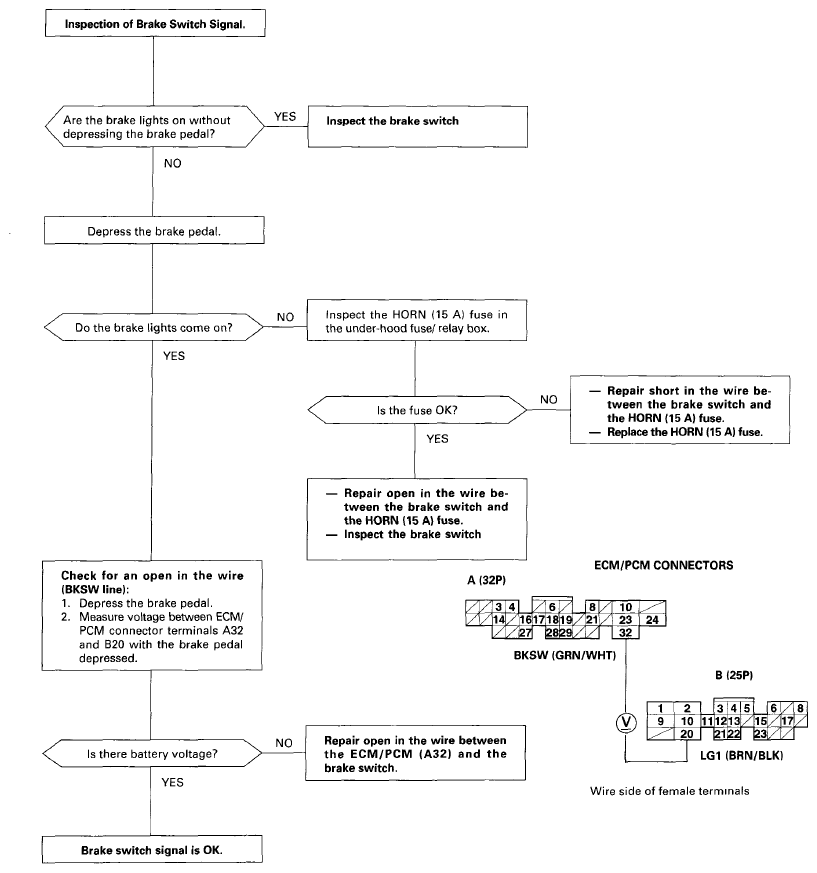

Fig 1: Brake Switch Signal Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
