FixVault
Home
›
Acura
›
2000
›
1.6EL XS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Idle Control System
›
Troubleshooting Flowcharts
›
Starter Switch Signal
›
1999-2000 Models
1999-2000 Models

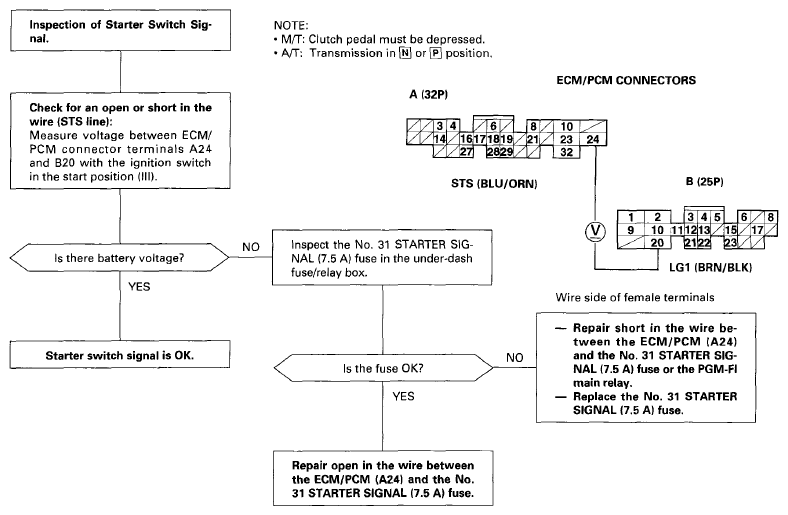

Fig 1: Starter Switch Signal Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
