Backlash Inspection

Place differential assembly on V-blocks and install both axles.

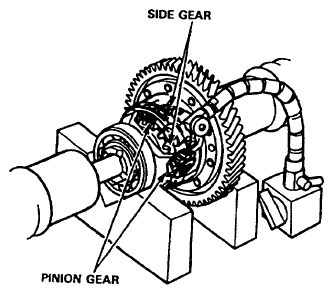

Fig 1: Checking Backlash Of Pinion Gears
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check backlash of both pinion gears.
Standard (New): 0.05 - 0.15 mm (0.002 - 0.006 in)
If backlash is out of tolerance, replace the differential carrier (see DIFFERENTIAL CARRIER REPLACEMENT ).
