Troubleshooting Flowchart - Mainshaft Speed Sensor

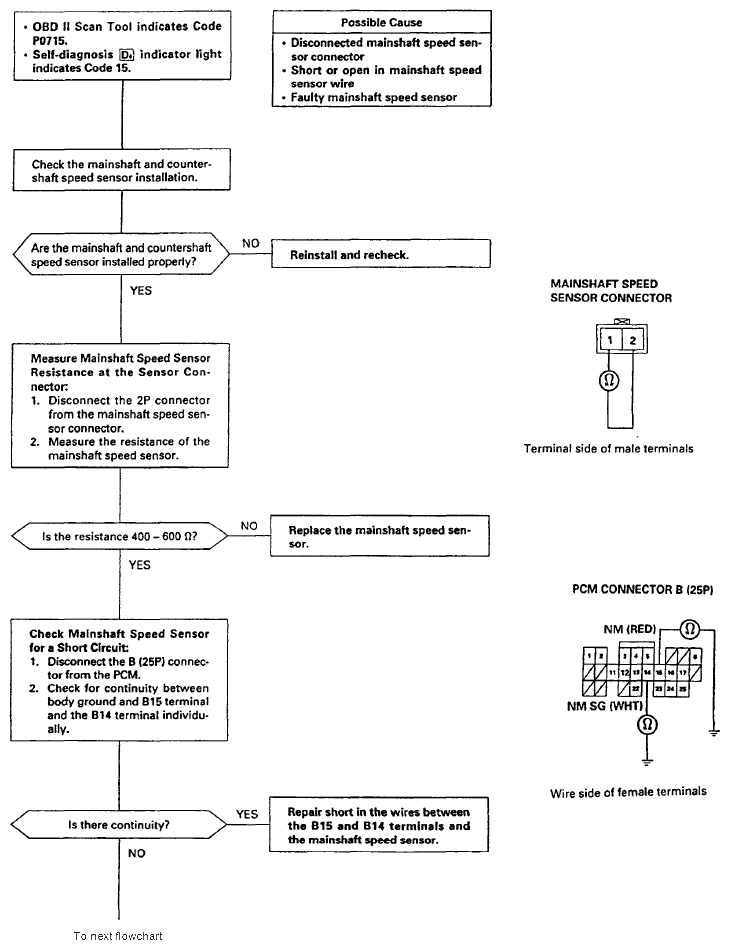

Fig 1: Troubleshooting Flowchart - Mainshaft Speed Sensor (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

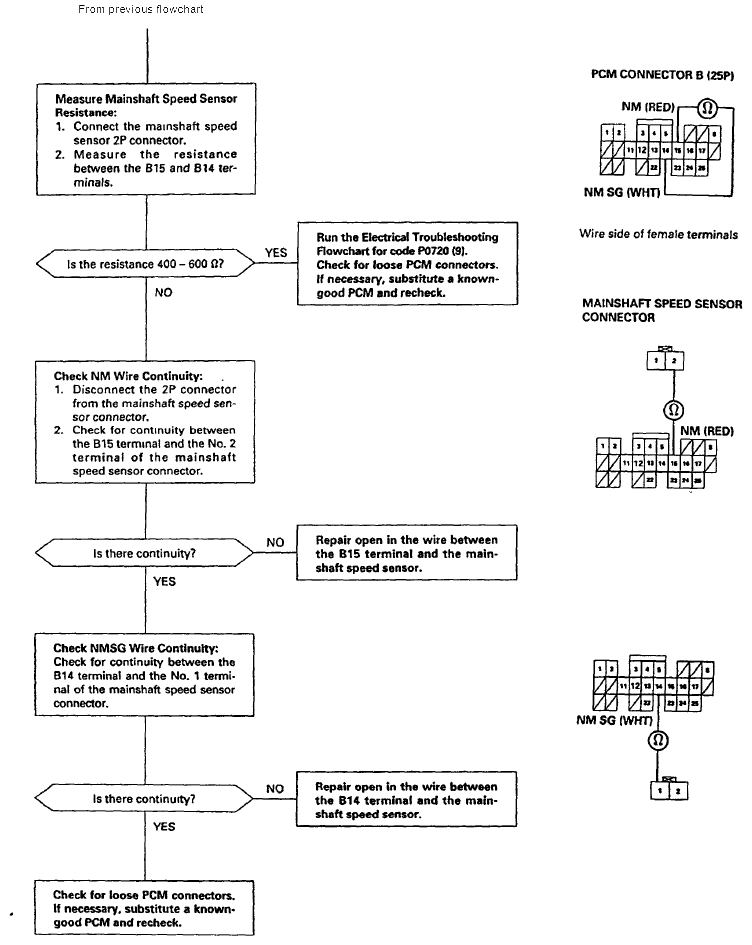

Fig 2: Troubleshooting Flowchart - Mainshaft Speed Sensor (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
