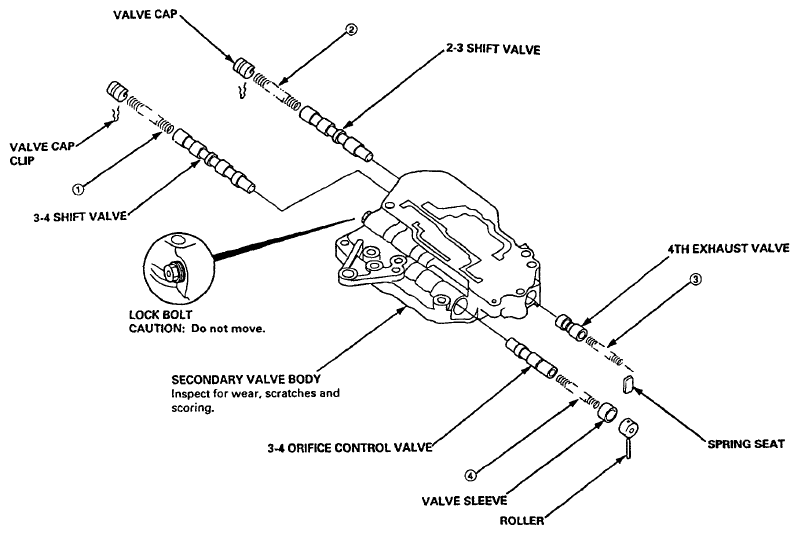

Secondary Valve Body: Disassembly/Inspection/Reassembly
NOTE:
- Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air. Blow out all passages.
- Replace the secondary valve body kit, P/N 27700 - P4R - 305 (The secondary valve body kit includes the linear solenoid assembly) if any parts are worn or damaged.
- Check all valves for free movement. If any fail to slide freely, see VALVE BODY REPAIR on .
- Coat all parts with ATF during assembly.
- The CPC valve is installed in the secondary valve body, held in place by the lock bolt.
SPRING SPECIFICATIONS
SPRING SPECIFICATIONS
| Unit: mm (in) | |||||
|---|---|---|---|---|---|
| No. | Springs | Standard (New) | |||
| Wire Dia. | O.D. | Free Length | No. of Coils | ||
| (1) | 3-4 shift valve spring | 0.9 (0.035) | 7.6 (0.302) | 57.0 (2.244) | 26.8 |
| (2) | 2-3 shift valve spring | 0.9 (0.035) | 7.6 (0.302) | 57.0 (2.244) | 26.8 |
| (3) | 4th exhaust valve spring | 0.9 (0.035) | 6.1 (0.242) | 36.4(1.433) | 19.5 |
| (4) | 3-4 office control valve spring | 0.7 (0.028) | 6.6 (0.262) | 37.5(1.476) | 24.6 |
