Acura
›
2000
›
1.6EL XS, Standard
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System/Security Alarm System
›
Circuit Diagram
Circuit Diagram

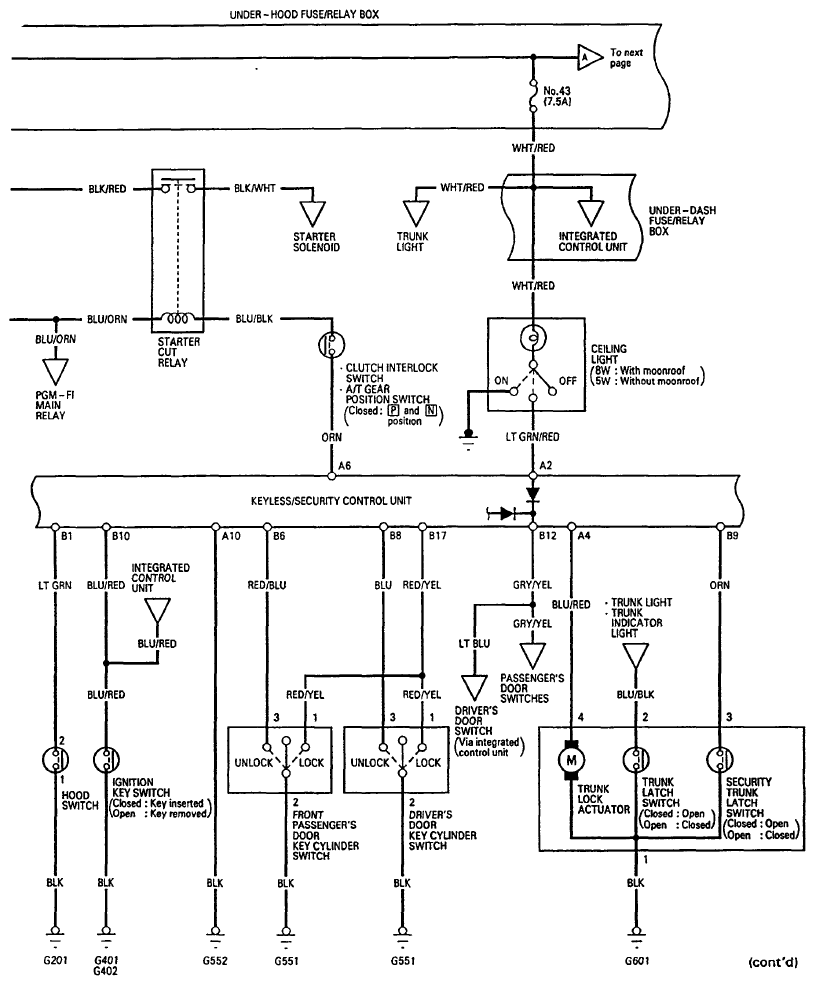

Fig 1: Security Alarm System - Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

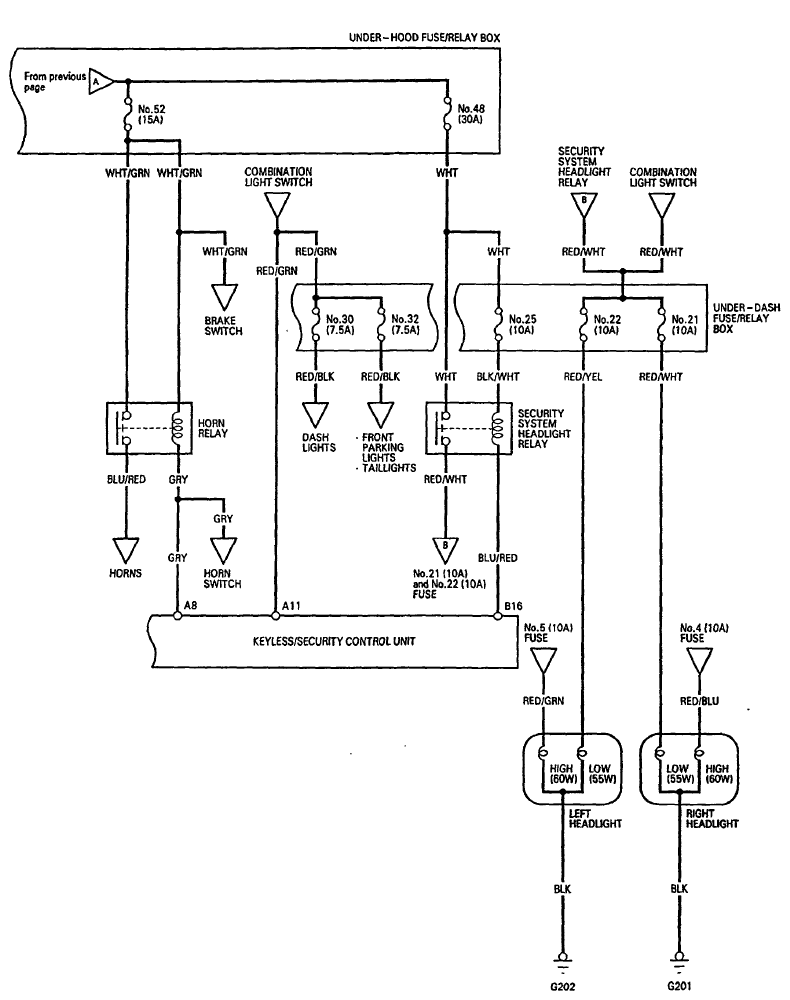

Fig 2: Security Alarm System - Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

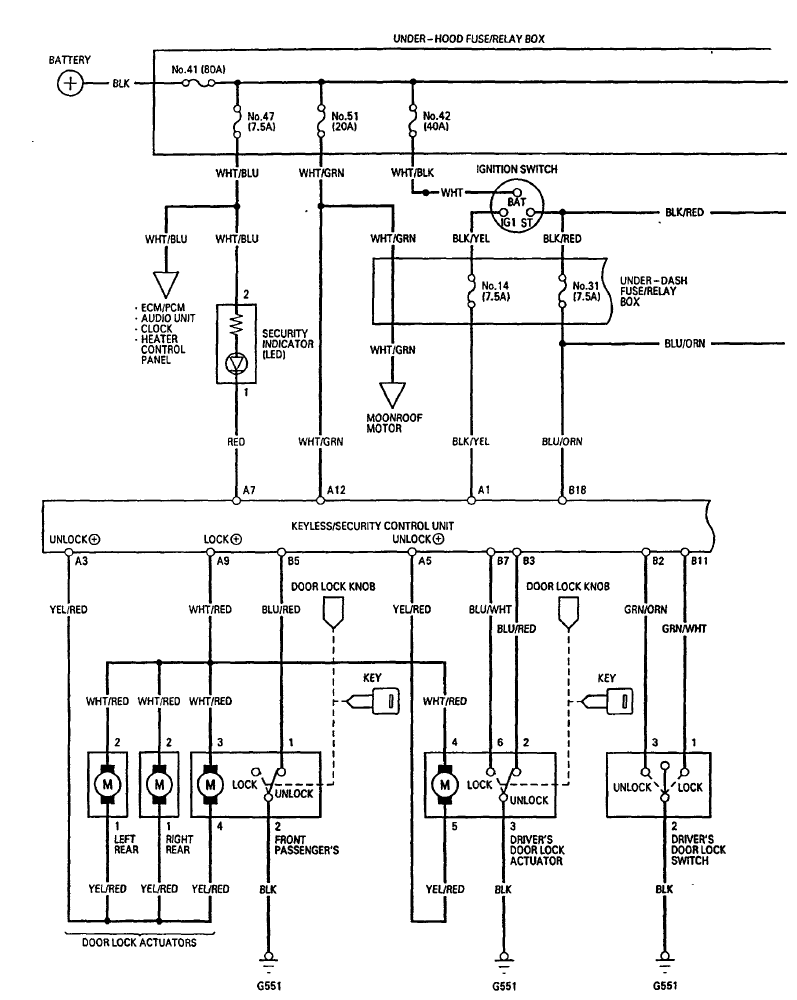

Fig 3: Security Alarm System - Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
