FixVault
Home
›
Acura
›
2000
›
1.6EL XS, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Idle Control System
›
Troubleshooting Flowcharts
›
Idle Air Control (IAC) Valve (A/T)
›
1999-2000 Models
1999-2000 Models

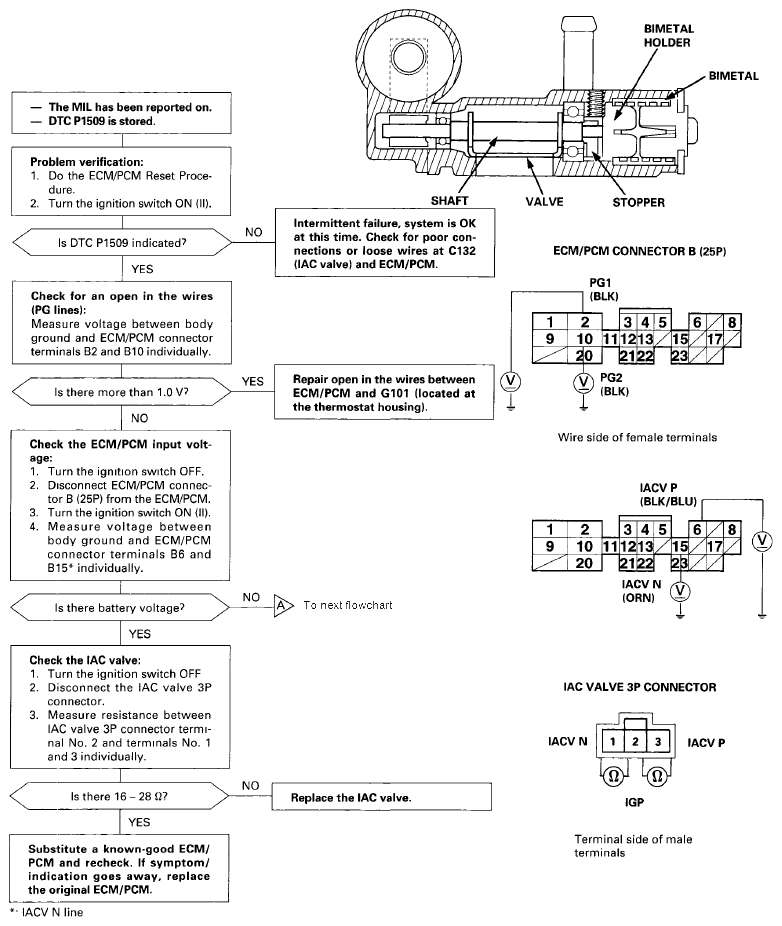

Fig 1: Idle Air Control Valve (A/T) Troubleshooting Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

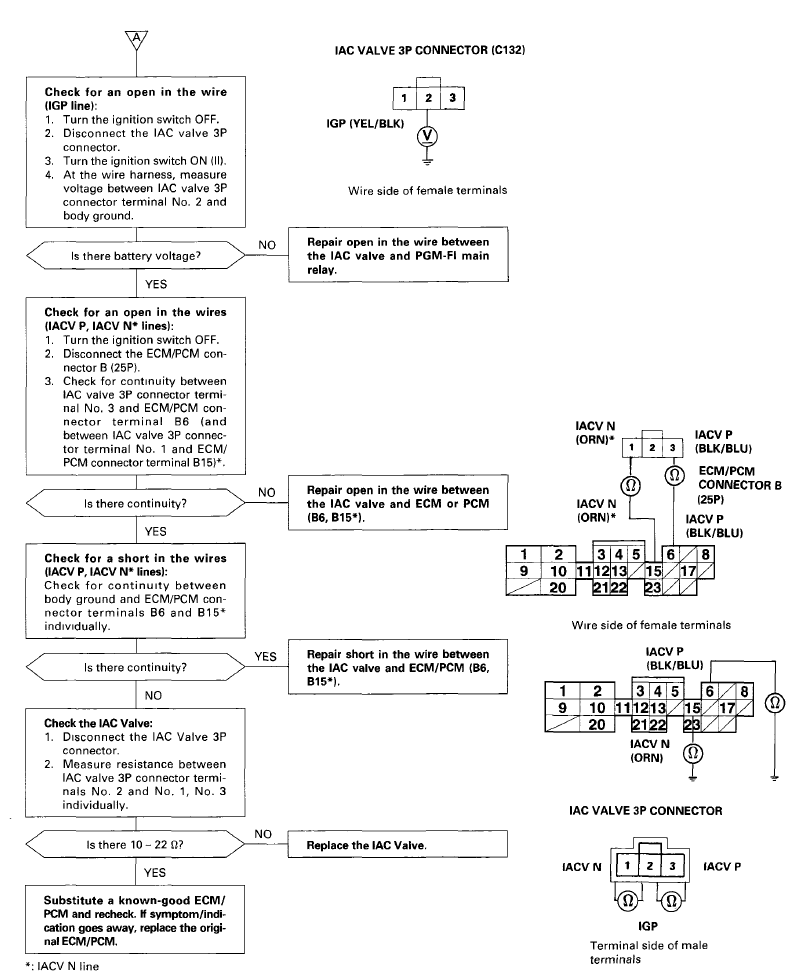

Fig 2: Idle Air Control Valve (A/T) Troubleshooting Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
