Child Seat Tether Anchor Removal/Installation

Attachment points are provided for a rear-seat-mounted child restraint system that use a top tether. The attachment points are located the rear shelf, just behind the rear seat-back. The child seat tether anchors are installed in the middle and on both sides of the rear shelf. Each child seat tether anchor is covered with the child seat tether anchor cover.

NOTE:

Do not remove the toothed washer from the child seat tether anchor. Use the anchor with the toothed washer attached to it.
When installing a child seat on the rear seat, follow the instructions of the manufacturer of the child seat.
When installing the anchors, the one with the shorter spacer goes in the middle.
Make sure the rear seat-backs are locked firmly when installing a child seat.

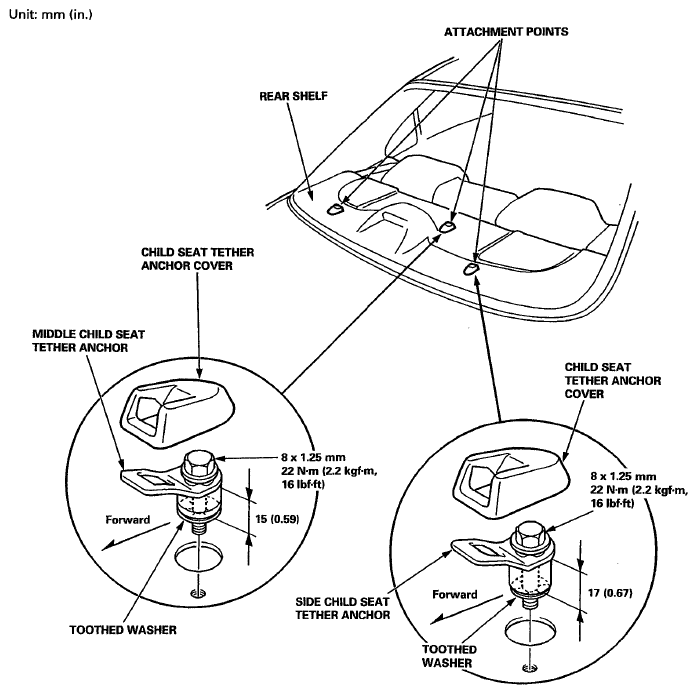

Fig 1: Child Seat Tether Anchor Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
