Troubleshooting Flowchart - Countershaft Speed Sensor
Troubleshooting Flowchart - Countershaft Speed Sensor

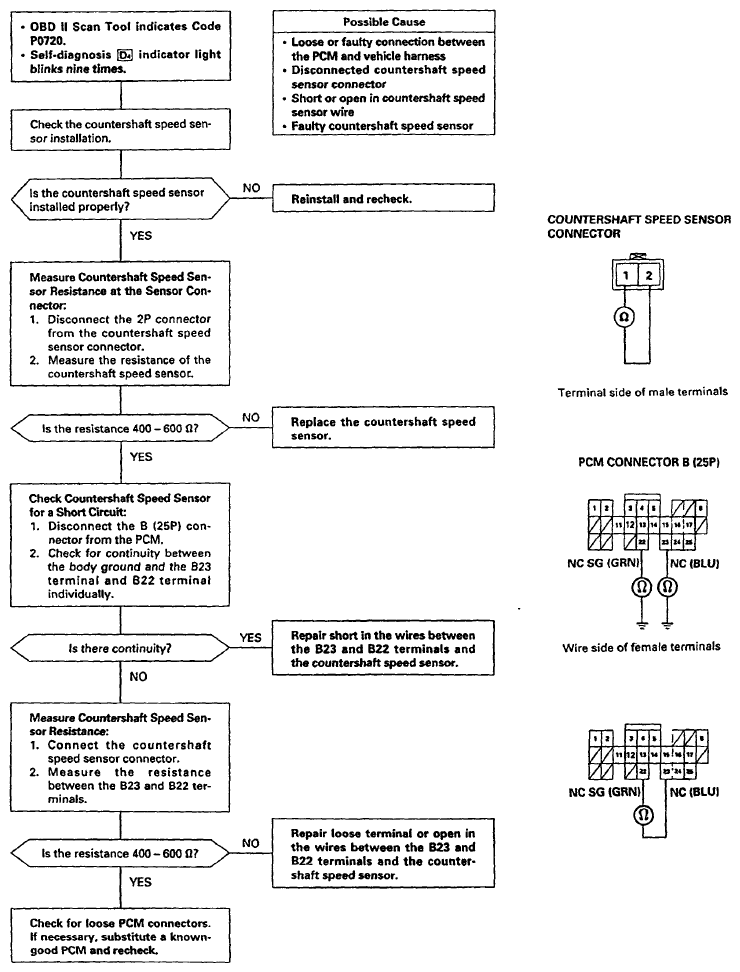

Fig 1: Troubleshooting Flowchart - Countershaft Speed Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
