Troubleshooting Flowchart - Interlock System - Shift Lock System

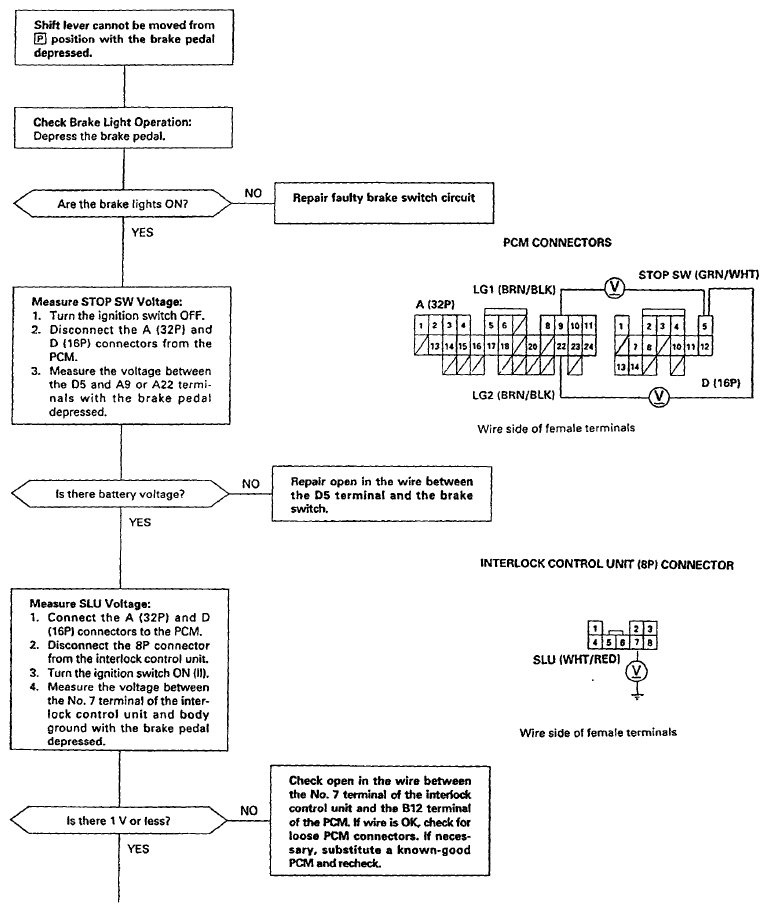

Fig 1: Troubleshooting Flowchart - Interlock System - Shift Lock System (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

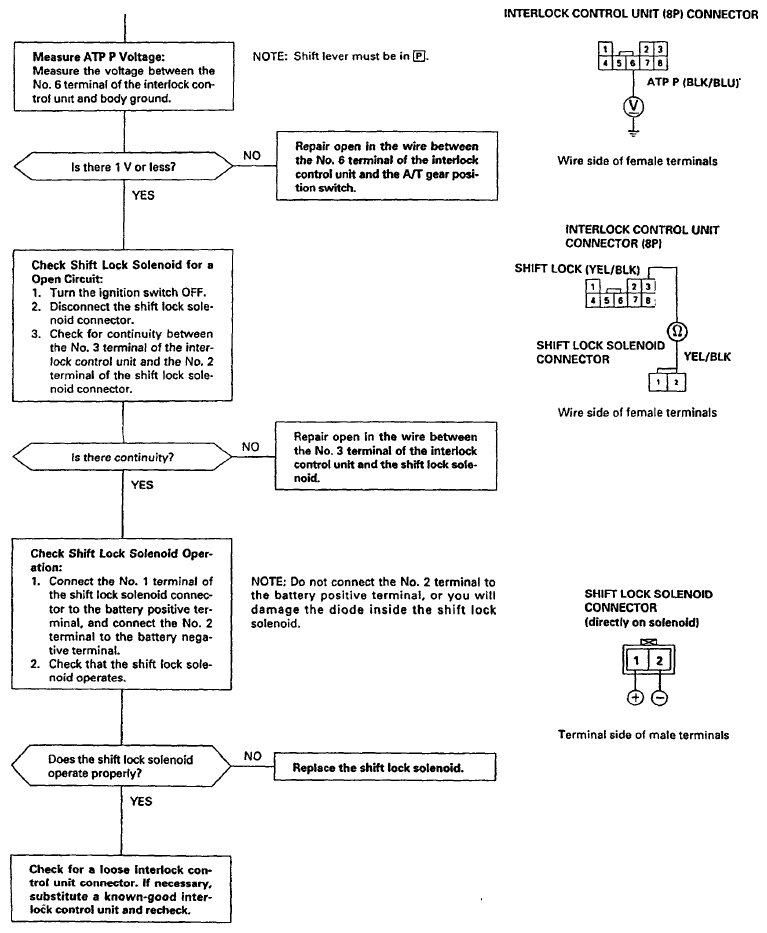

Fig 2: Troubleshooting Flowchart - Interlock System - Shift Lock System (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
