Rear Console Light Replacement

1. Remove the rear console. See Rear Console Removal/Installation
2. Disconnect the 3P connector from the rear accessory socket sub-harness.
3. Remove the beverage holder cover from the center console.
4. Turn the bulb socket 45 degrees counterclockwise from the light housing, then remove the bulb (A). See Fig 1

NOTE: Console Box Light: 3.8W

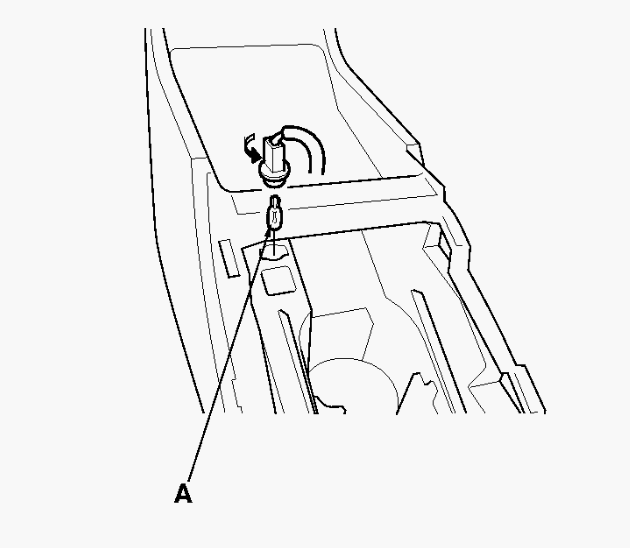

Fig 1: Disconnecting Connector From Rear Accessory Socket

Courtesy of AMERICAN HONDA MOTOR CO., INC.
