Brake Switch Test: 3.5RL

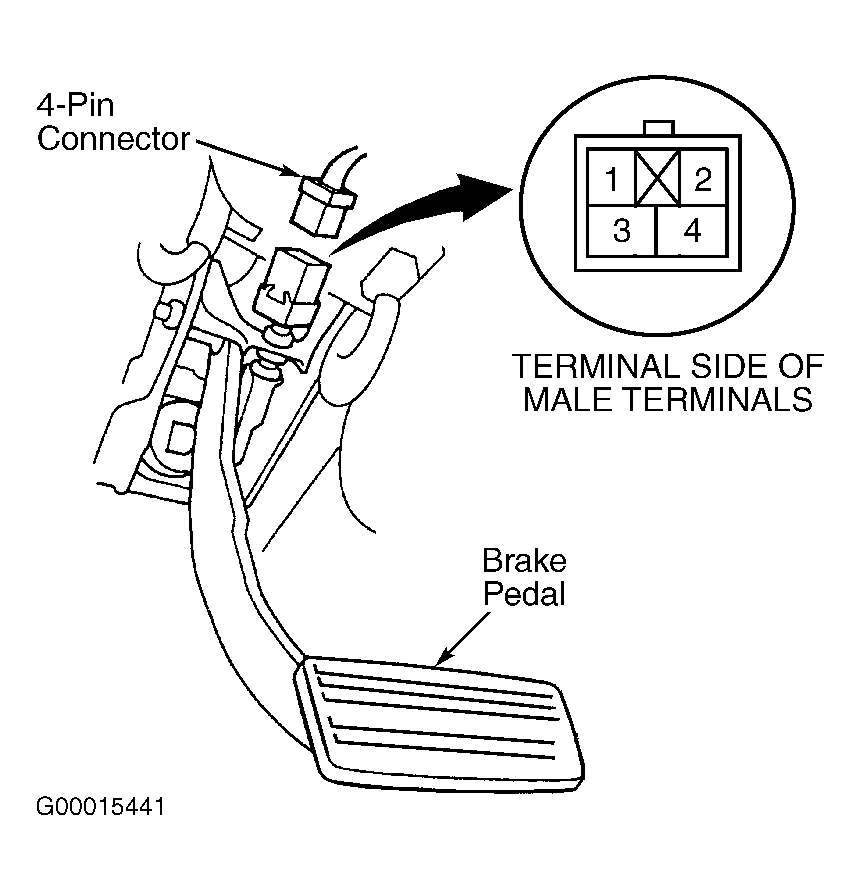

Disconnect brake switch 4-pin connector. With brake pedal depressed, continuity should exist between brake switch terminal No. 3 and terminal No. 4. See Fig 1. With brake pedal released, continuity should exist between brake switch terminal No. 1 and terminal No. 2. If continuity is not as specified adjust brake pedal height and recheck brake switch operation. See appropriate DISC & DRUM article in BRAKES. . If brake pedal height is okay, replace brake switch.
