Gearshift Lever Position Indicator Input: 3.5RL

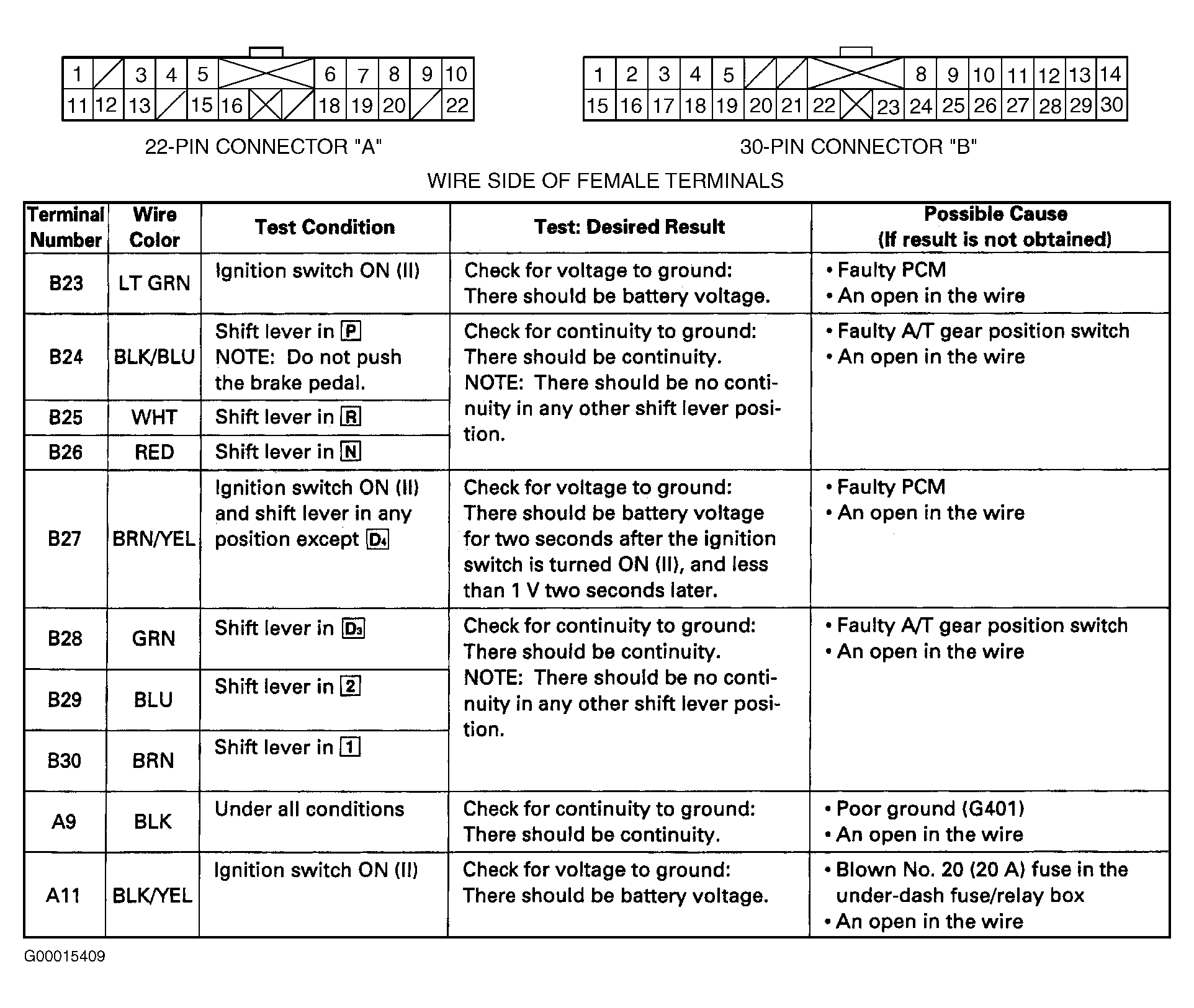

- Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Disconnect instrument cluster 22-pin connector "A" and 30-pin connector "B". Inspect connectors and terminals. Check for bent, loose or corroded terminals. Perform gearshift lever position indicator input test. See Fig 1. Repair as necessary and recheck system operation. If gearshift lever position indicator inputs are okay, replace instrument cluster printed circuit board and recheck system.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
