Component Location Index

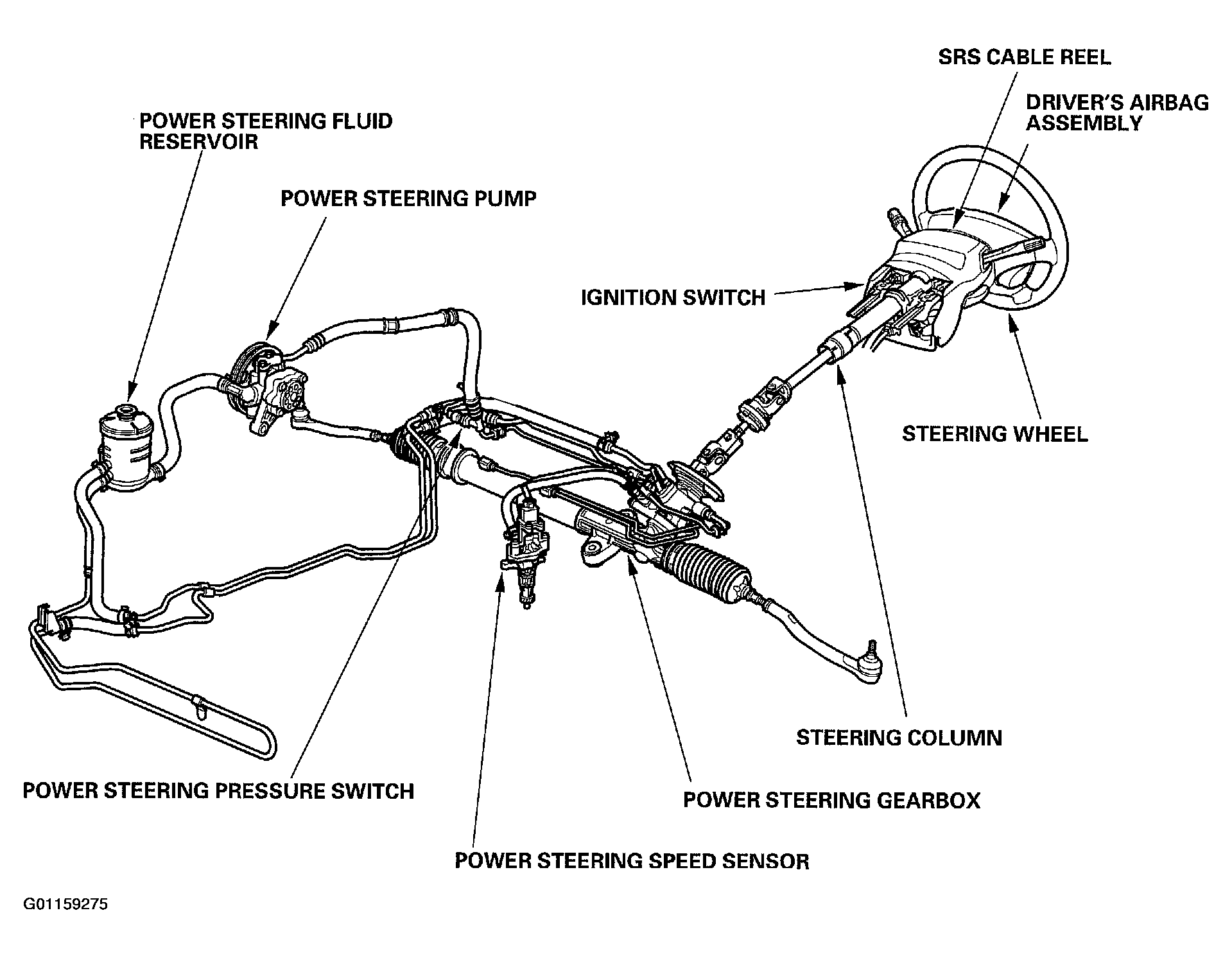

Fig 1: Identifying Component Location (1999-2003 - Premium Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

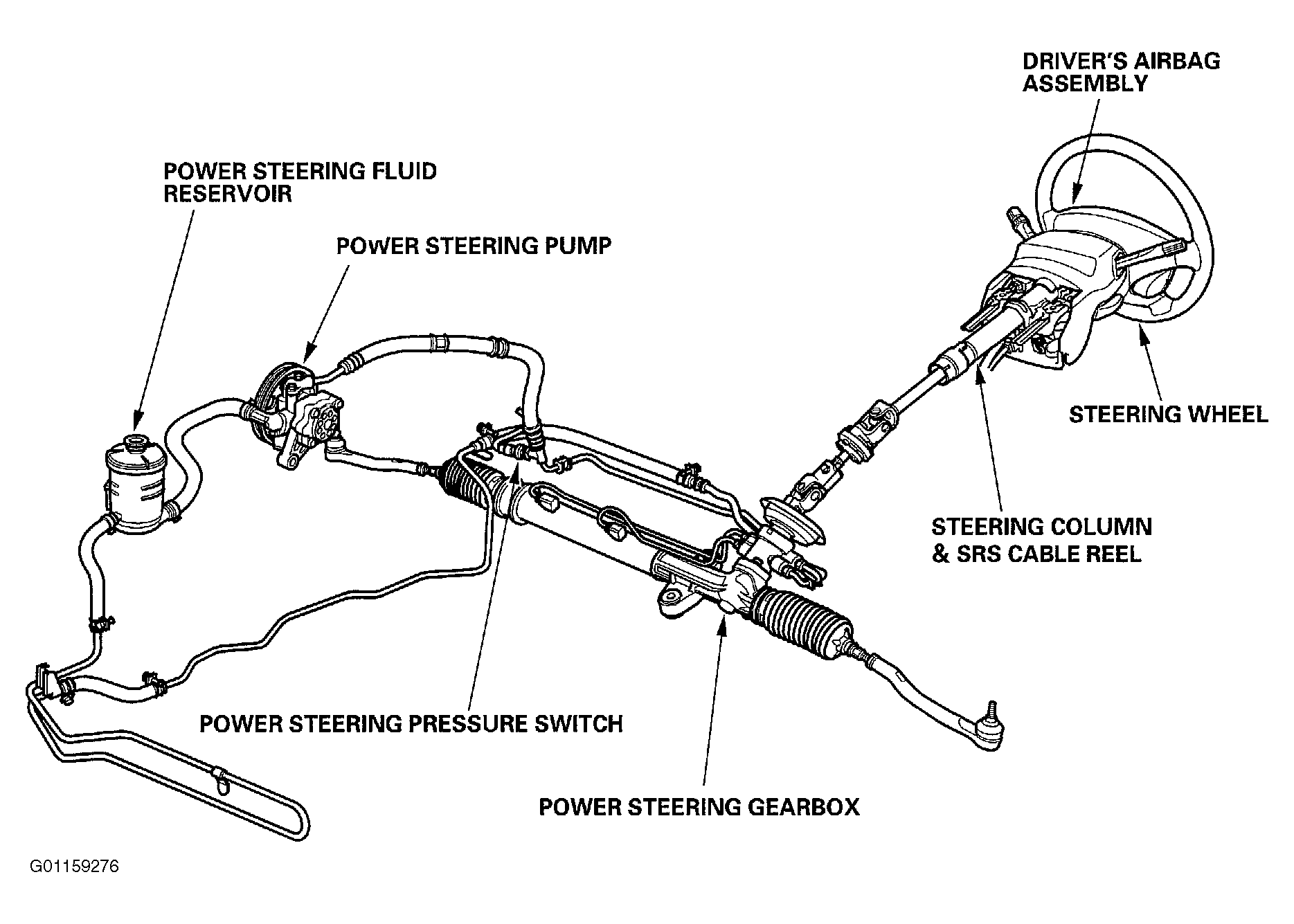

Fig 2: Identifying Component Location (2002-03 - Type-S Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
