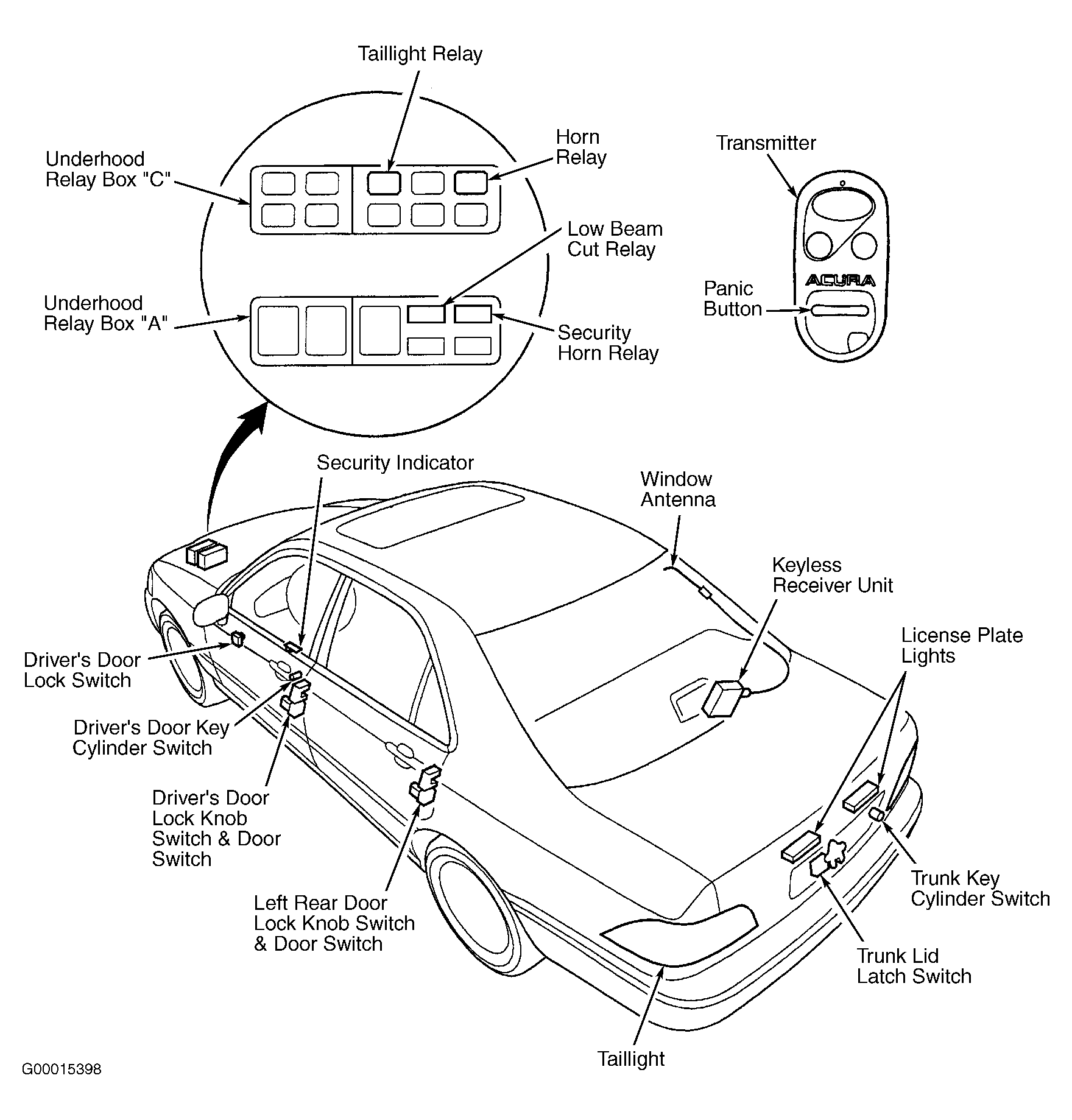

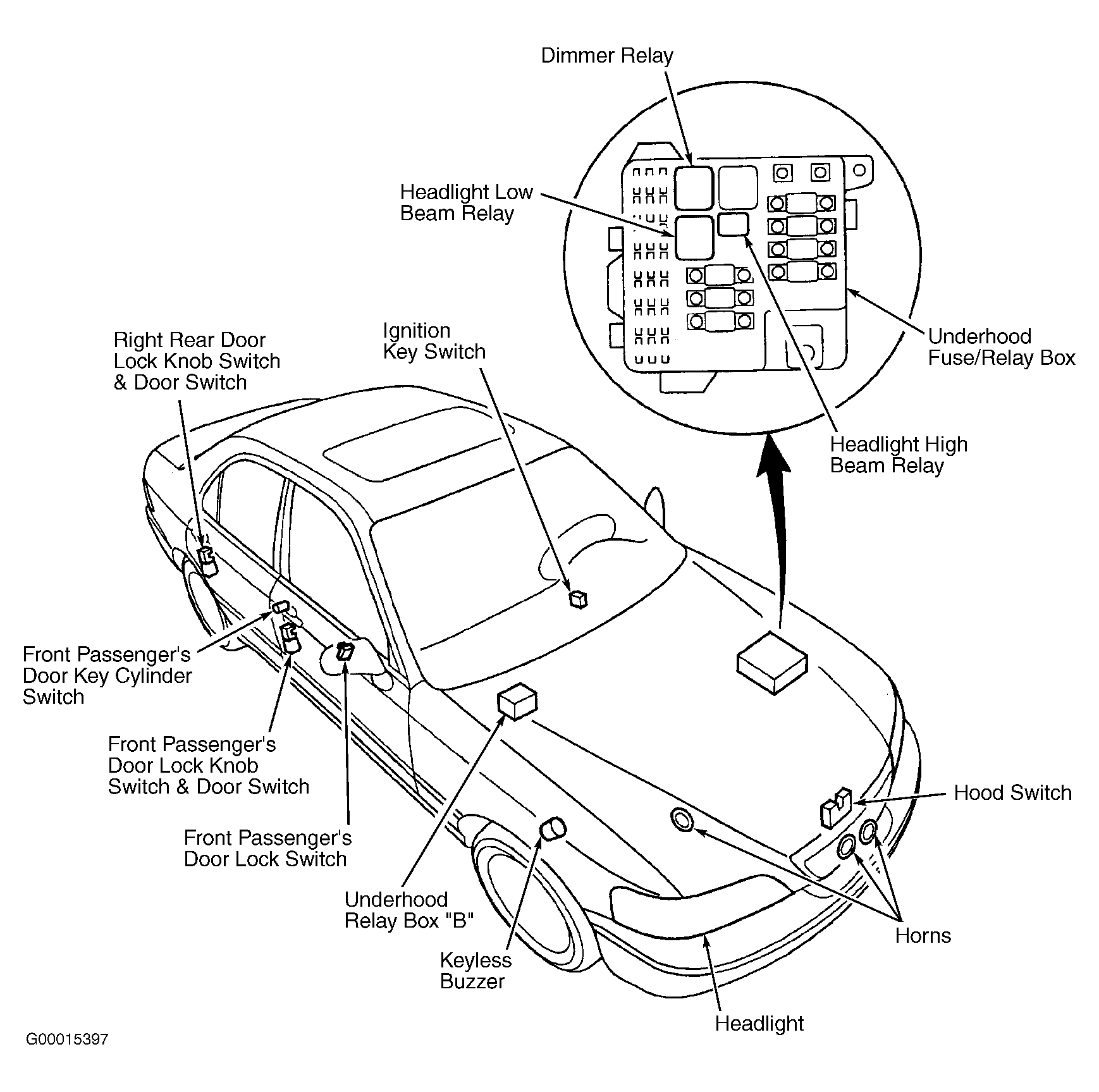

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Multiplex Control Unit | In Driver's Door, Built Into Power Window Switch |
| Driver's Multiplex Control Unit | Behind Left Kick Panel |
| Keyless Entry Receiver Antenna | In Rear Window |
| Keyless Entry Receiver | Behind Rear Seat |
| Passenger's Multiplex Control Unit | Behind Right Kick Panel |
| Underdash Fuse/Relay Box | At Left Kick Panel |
| Underhood Relay Box "A" & "C" | In Engine Compartment |
