Component Locations
Component Locations

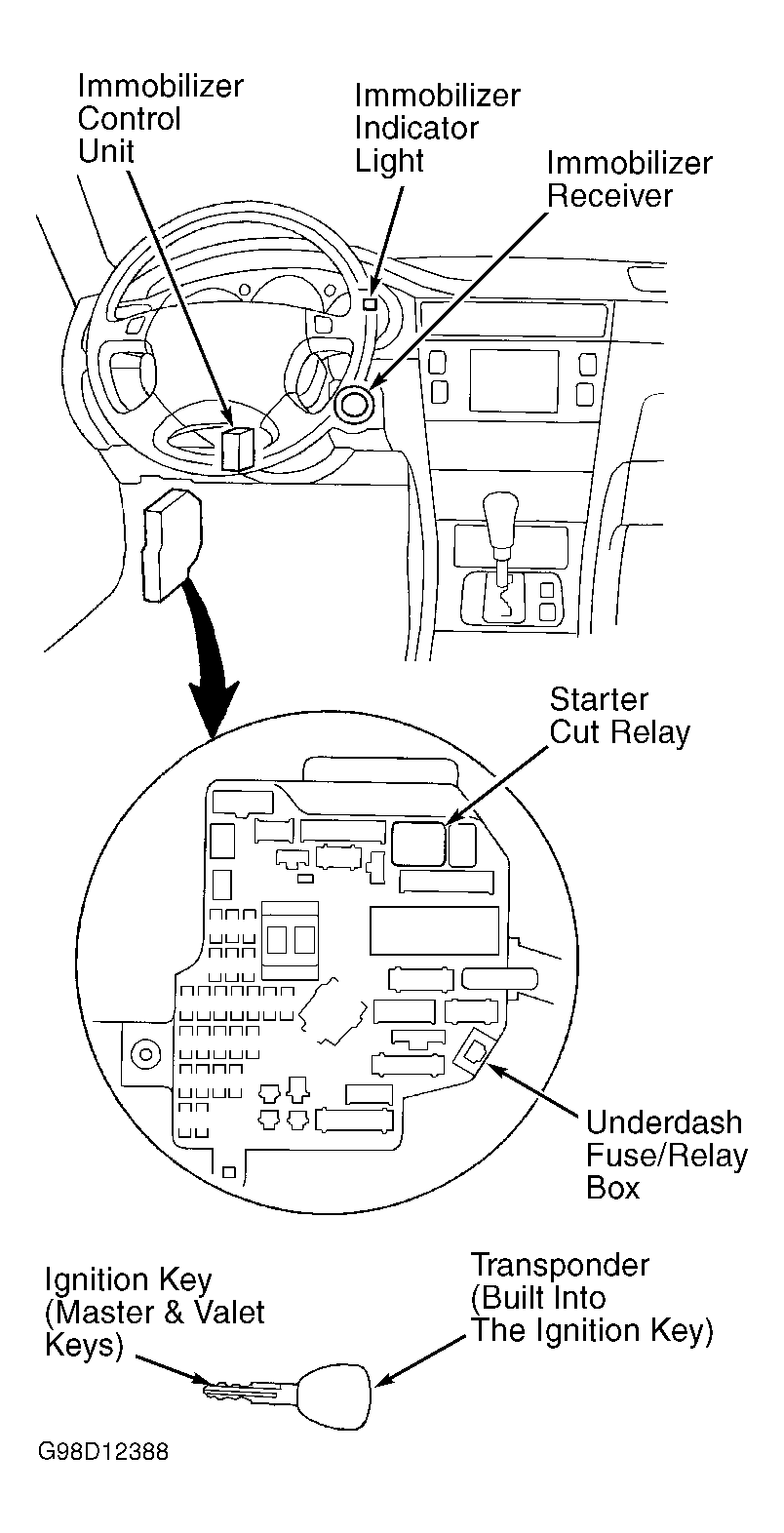

Fig 1: Locating Immobilizer System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
