Bench Testing: Stator

Check that there is continuity between each pair of leads. See Fig 1.
Check that there is no continuity between each lead and the coil core.
If the coil fails either continuity check, replace the alternator.

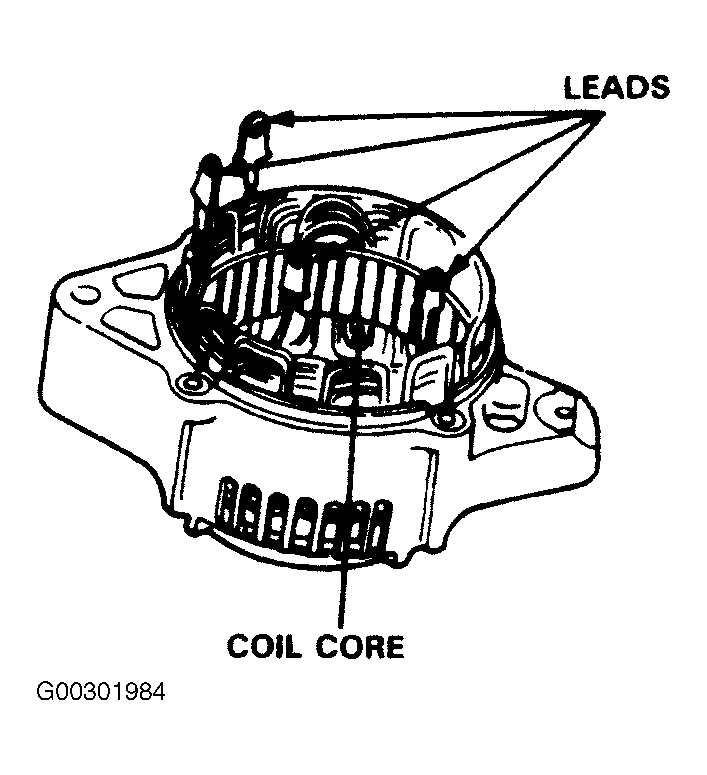

Fig 1: Identifying Stator Components

G00301984

Courtesy of AMERICAN HONDA MOTOR CO., INC.
