Under-Dash Fuse/Relay Box

NOTE: Under-dash fuse/relay box is located behind the left kick panel. See Fig 1 .

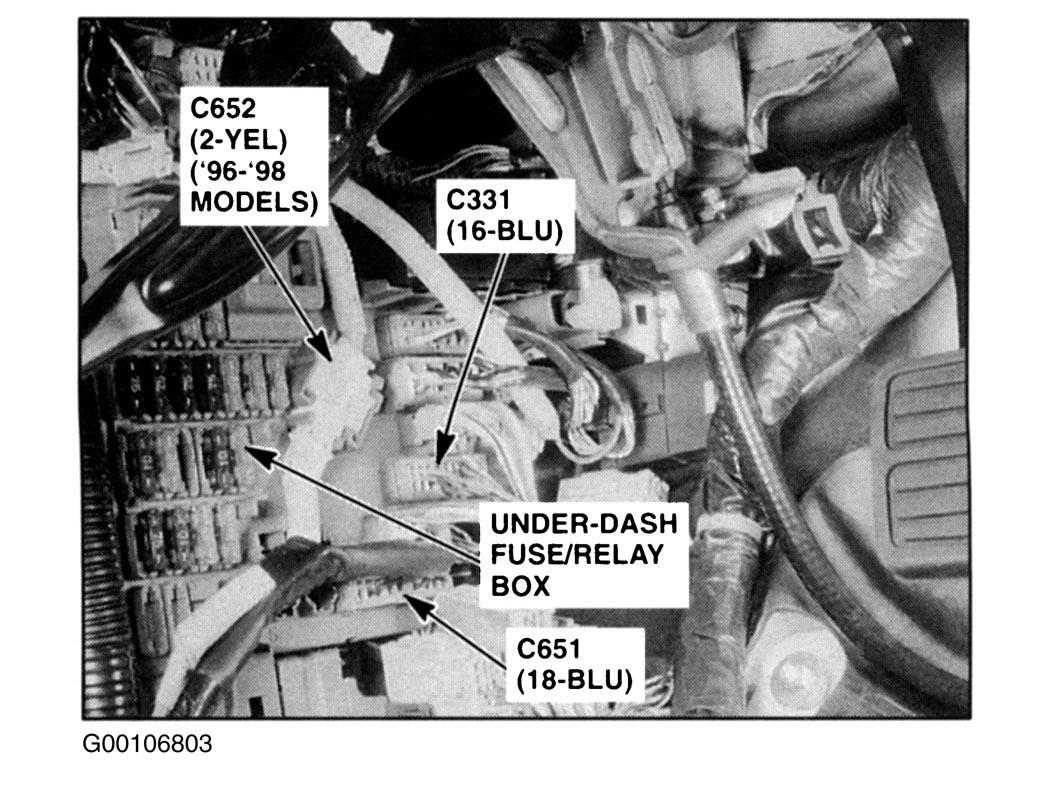

Fig 1: Locating Under-Dash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

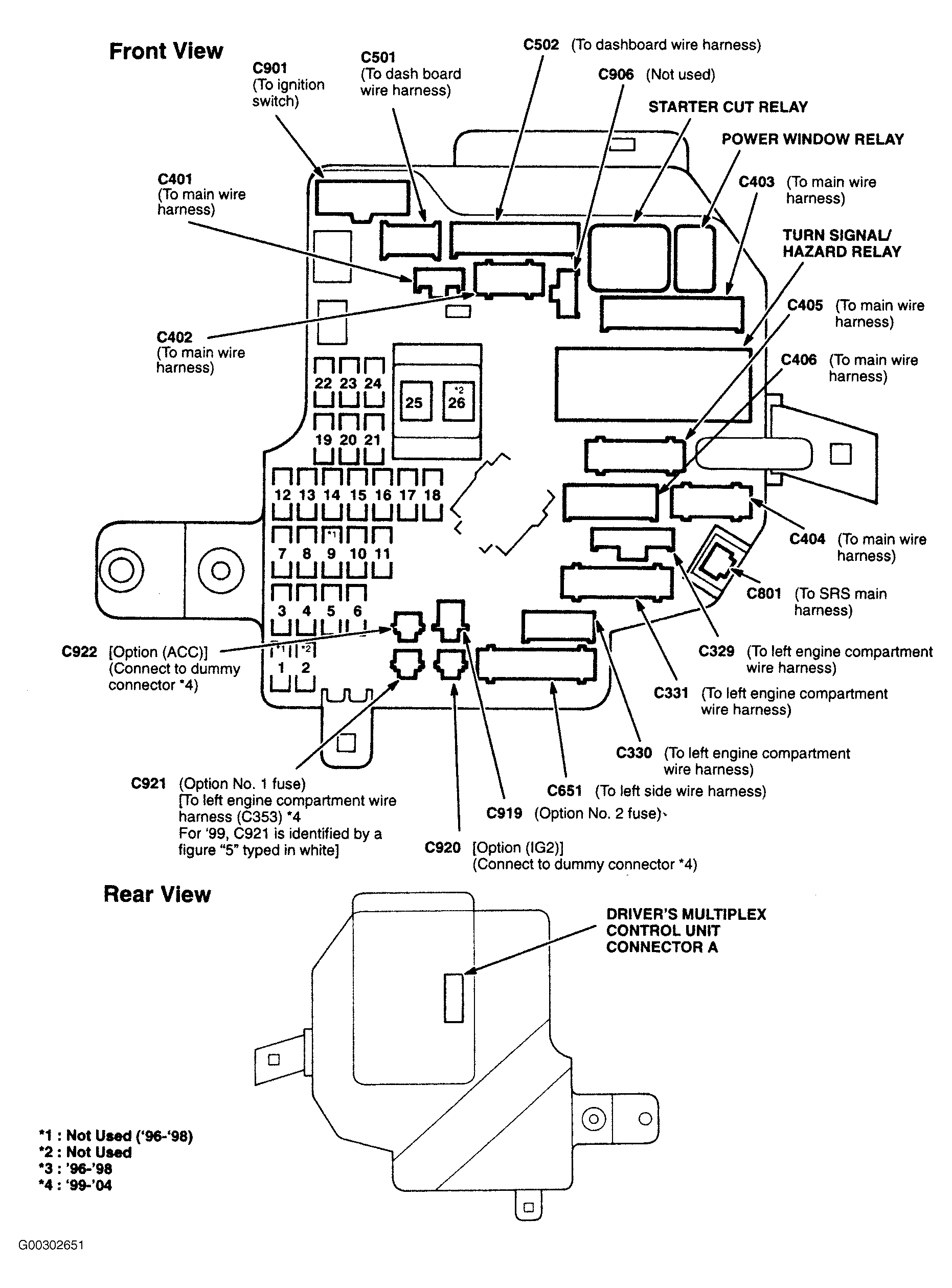

Fig 2: Identifying Under-Dash Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

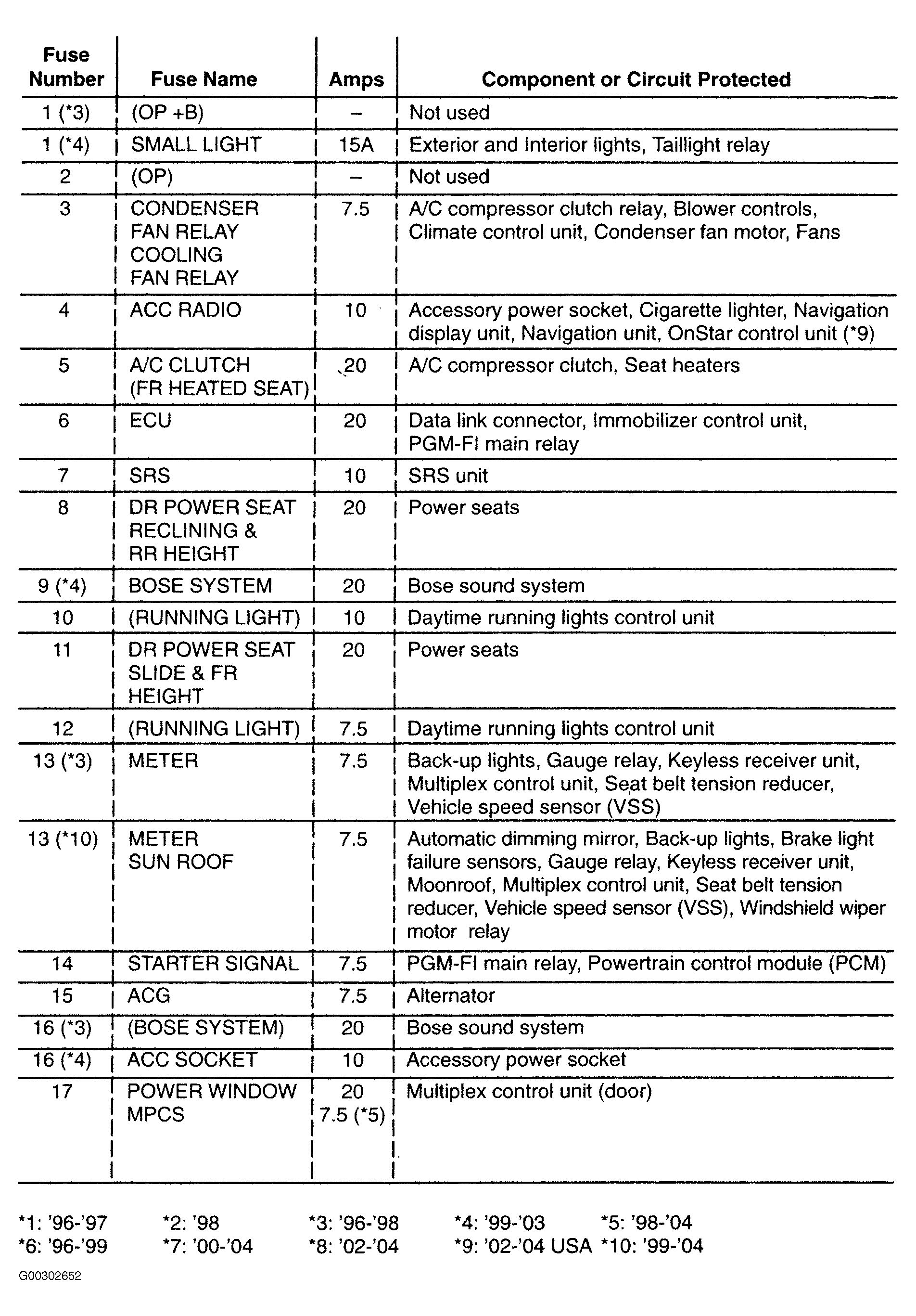

Fig 3: Under-Dash Fuse/Relay Box Legend (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

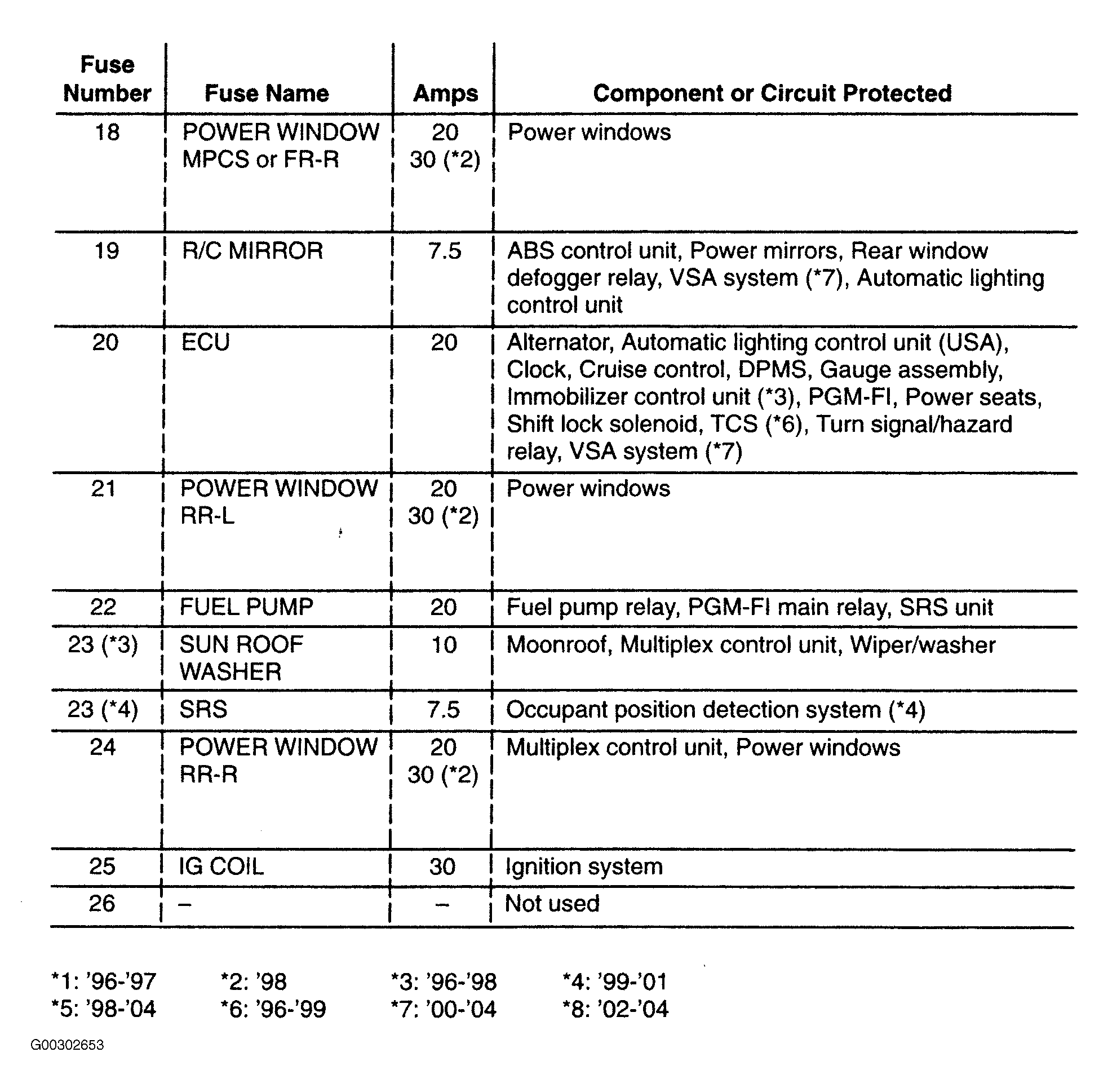

Fig 4: Under-Dash Fuse/Relay Box Legend (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
