Gauge Assembly Connector End View

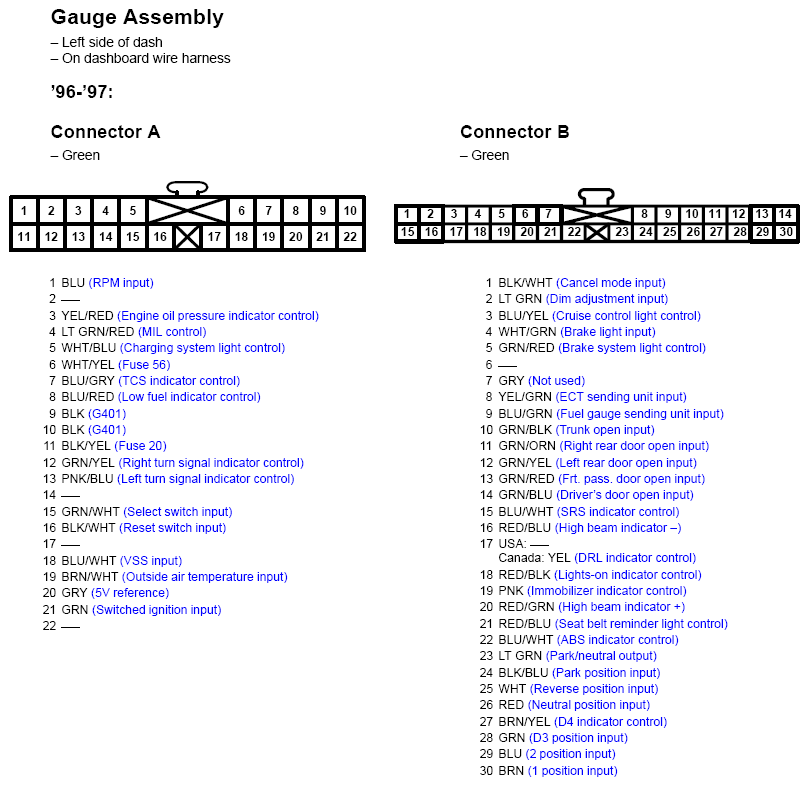

Fig 1: Gauge Assembly Connector End View (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

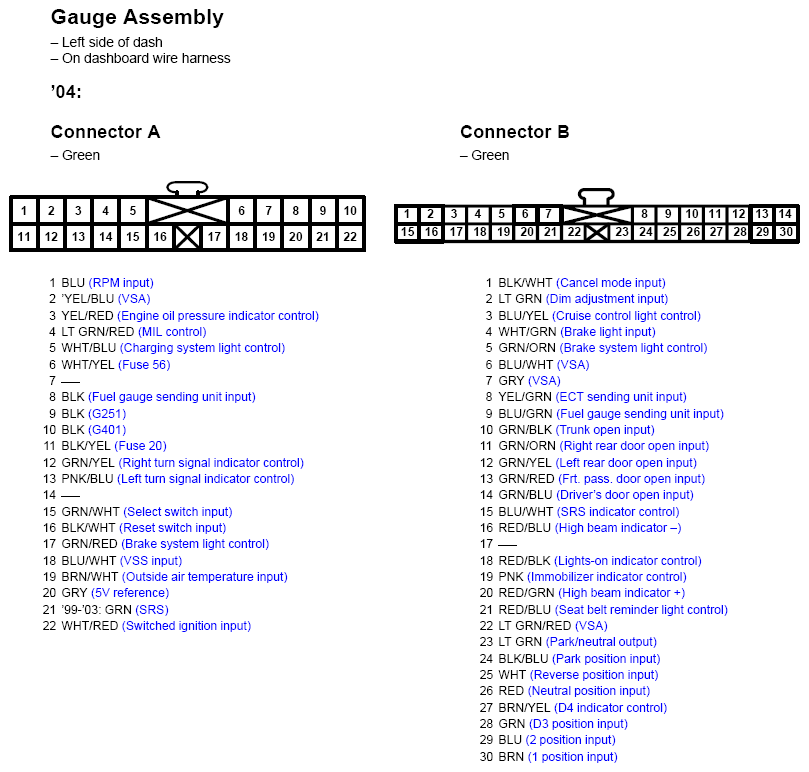

Fig 2: Gauge Assembly Connector End View (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

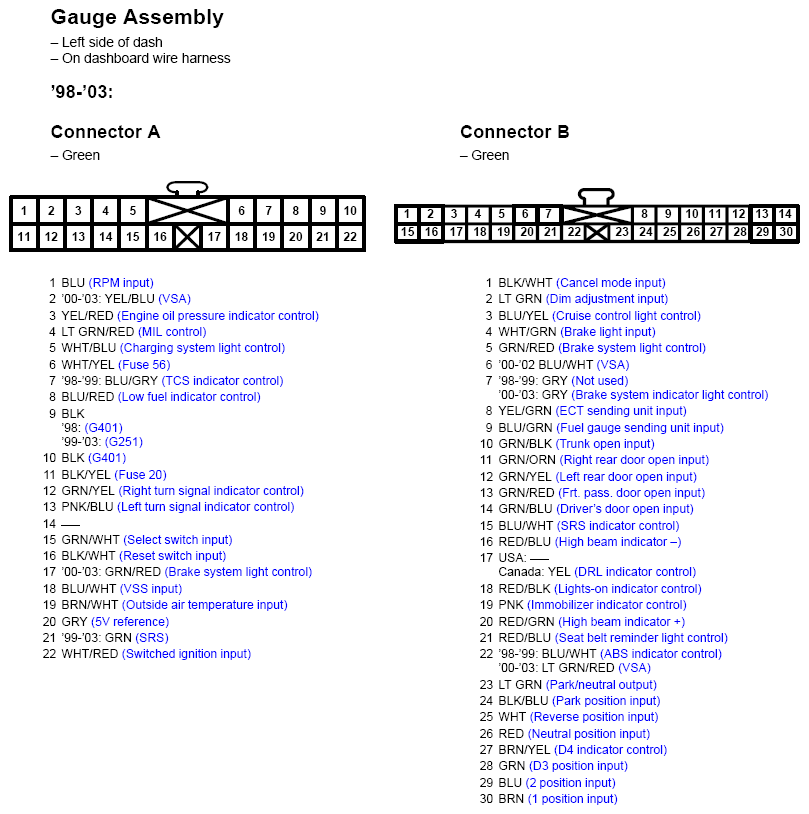

Fig 3: Gauge Assembly Connector End View (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Gauge Assembly Connector End View (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
