Left Rear Window Switch Connector End View
Left Rear Window Switch Connector End View

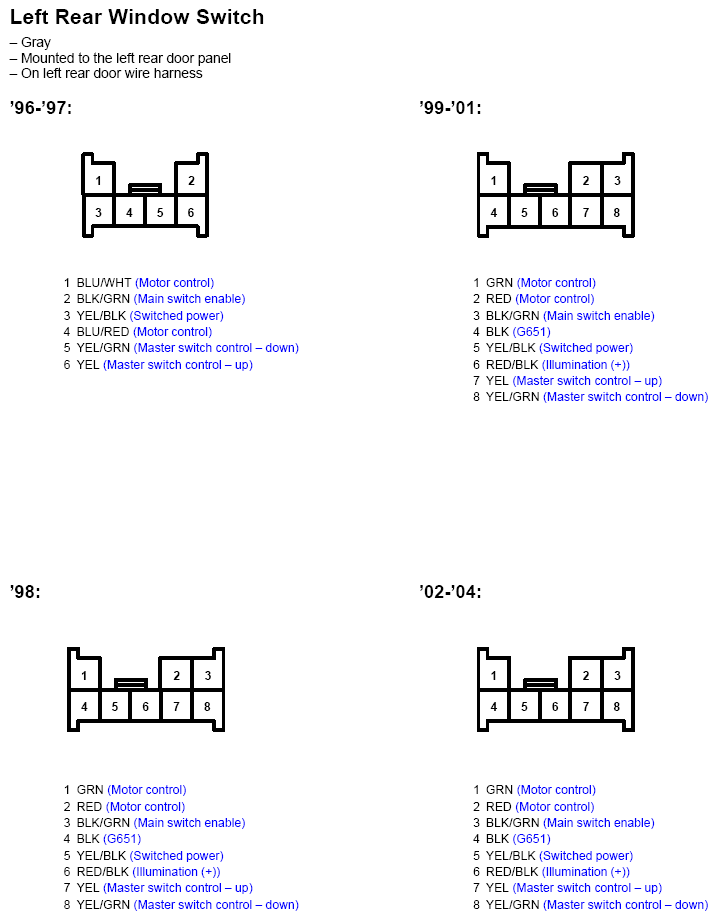

Fig 1: Left Rear Window Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
