Stereo Amplifier Connector End View

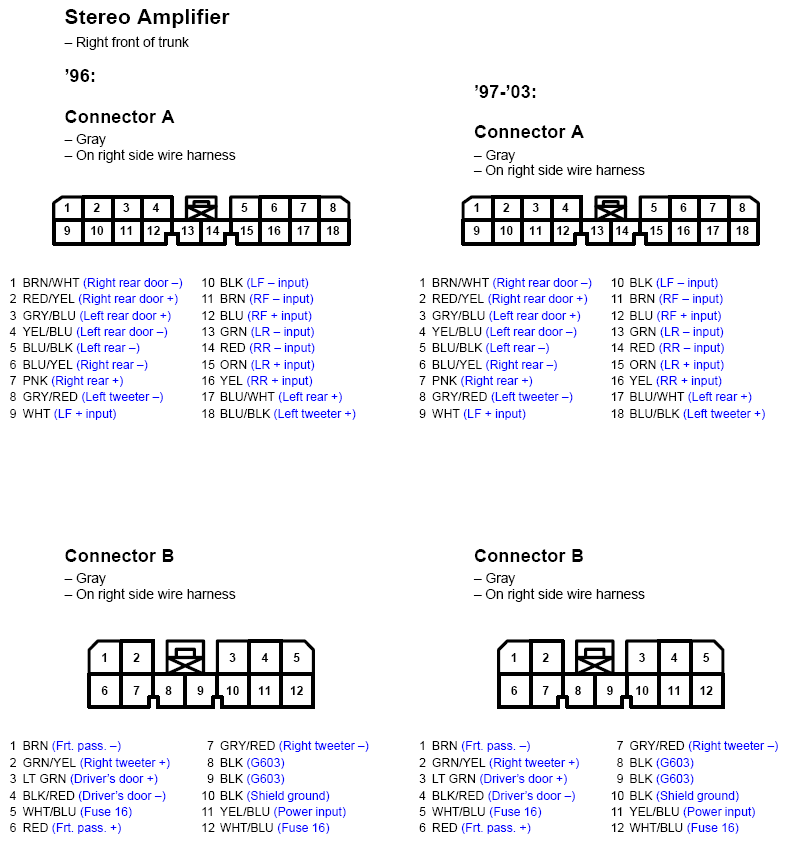

Fig 1: Stereo Amplifier Connector End View (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

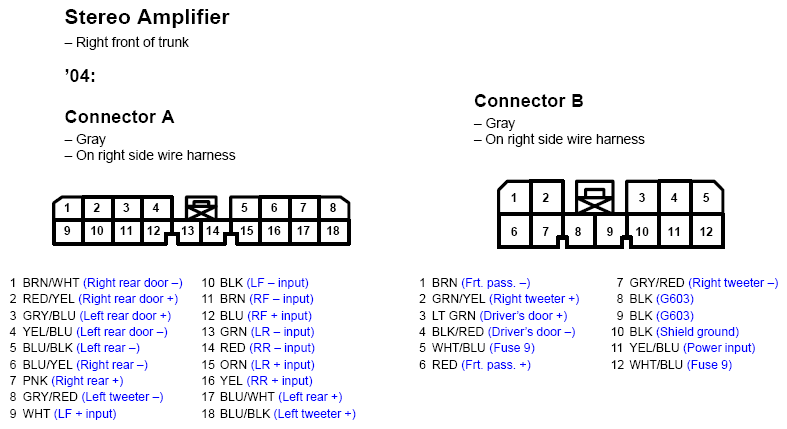

Fig 2: Stereo Amplifier Connector End View (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
