TCS Control Unit ('96-'99) Connector End View
TCS Control Unit ('96-'99) Connector End View

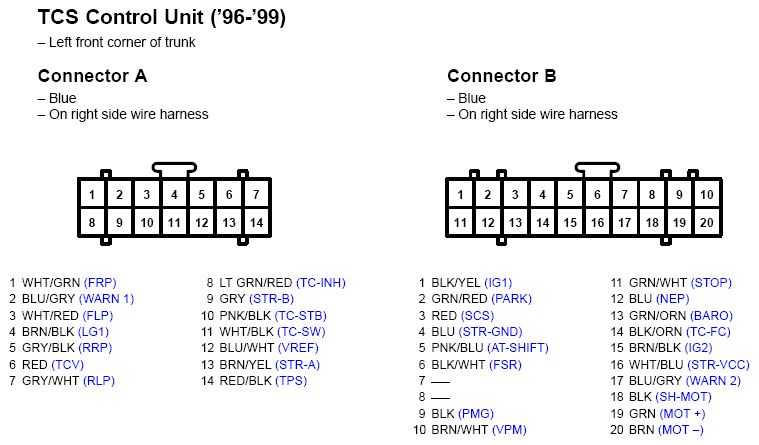

Fig 1: TCS Control Unit ('96-'99) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
