Component Locations

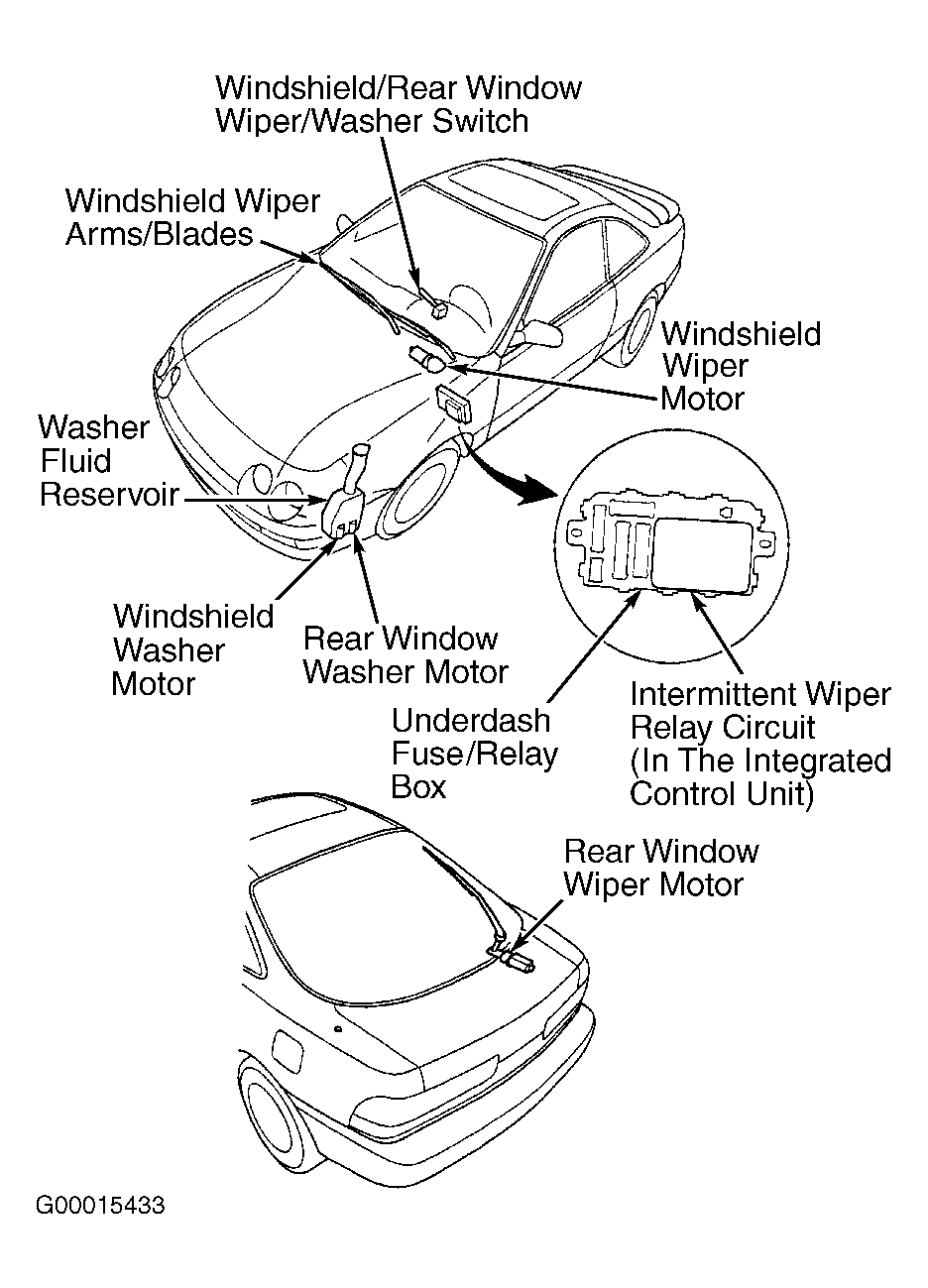

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Intermittent Wiper Relay (In Integrated Control Unit) | In Underdash Fuse/Relay Box At Left Kick Panel |
| Rear Wiper Motor | On Right Side Of Rear Hatch |
| Washer Motors (Front & Rear) | Attached To Washer Reservoir |
| Washer Reservoir | Under Left Front Inner Fender |
| Wiper/Washer Switch | On Right Side Of Steering Column |
