Under-Hood Abs Fuse/Relay Box

NOTE: Under-hood ABS fuse/relay box is located in right side of engine compartment. See Fig 1 .

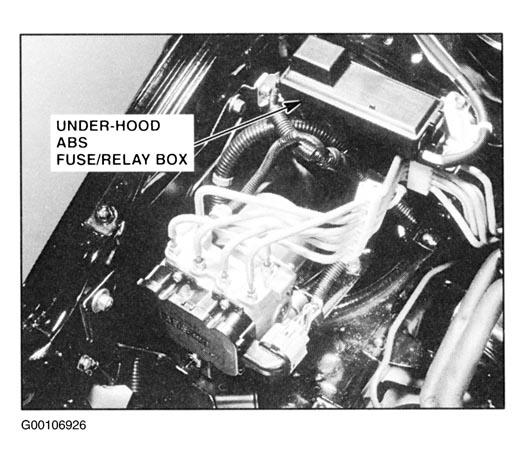

Fig 1: Locating Under-Hood ABS Fuse Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

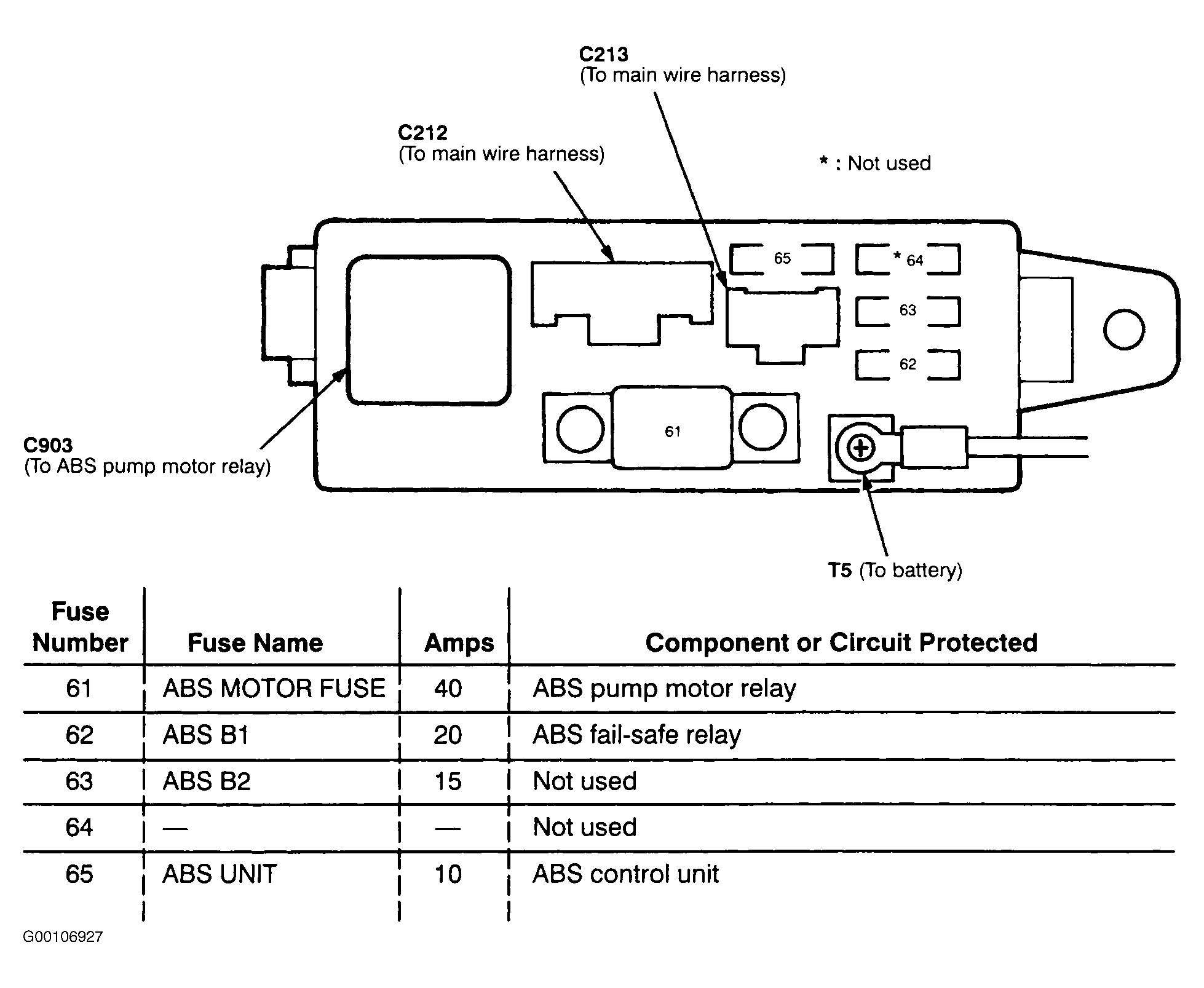

Fig 2: Identifying Under-Hood ABS Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
