Under-Hood Fuse/Relay Box

NOTE: Under-hood fuse/relay box is located in right rear corner of engine compartment next to the battery. See Fig 1 .

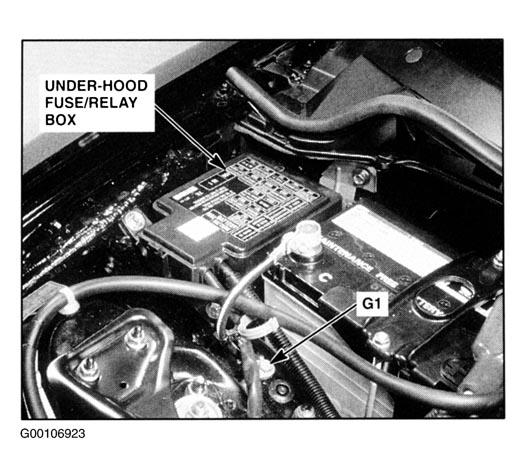

Fig 1: Locating Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

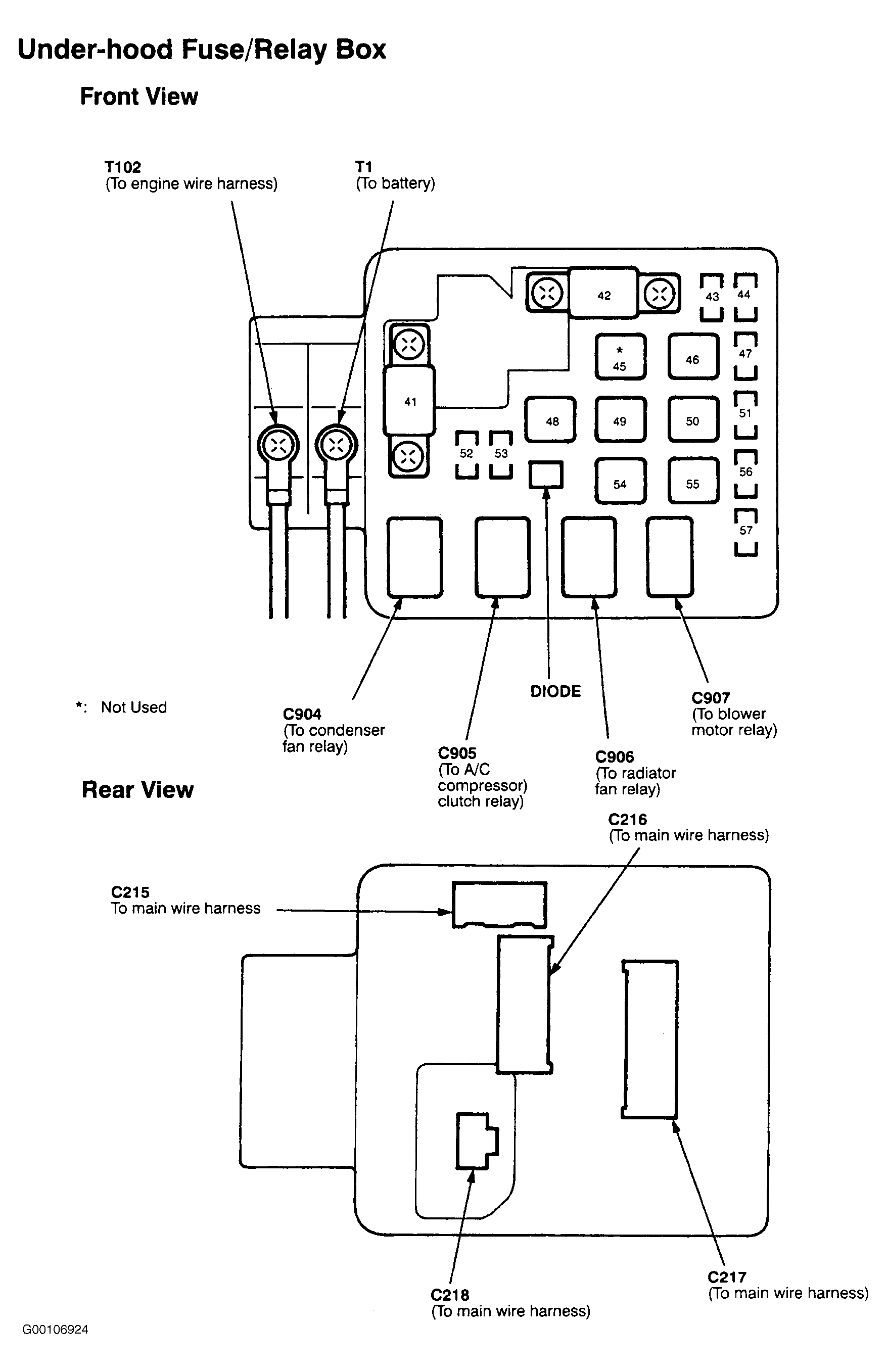

Fig 2: Identifying Under-Hood Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

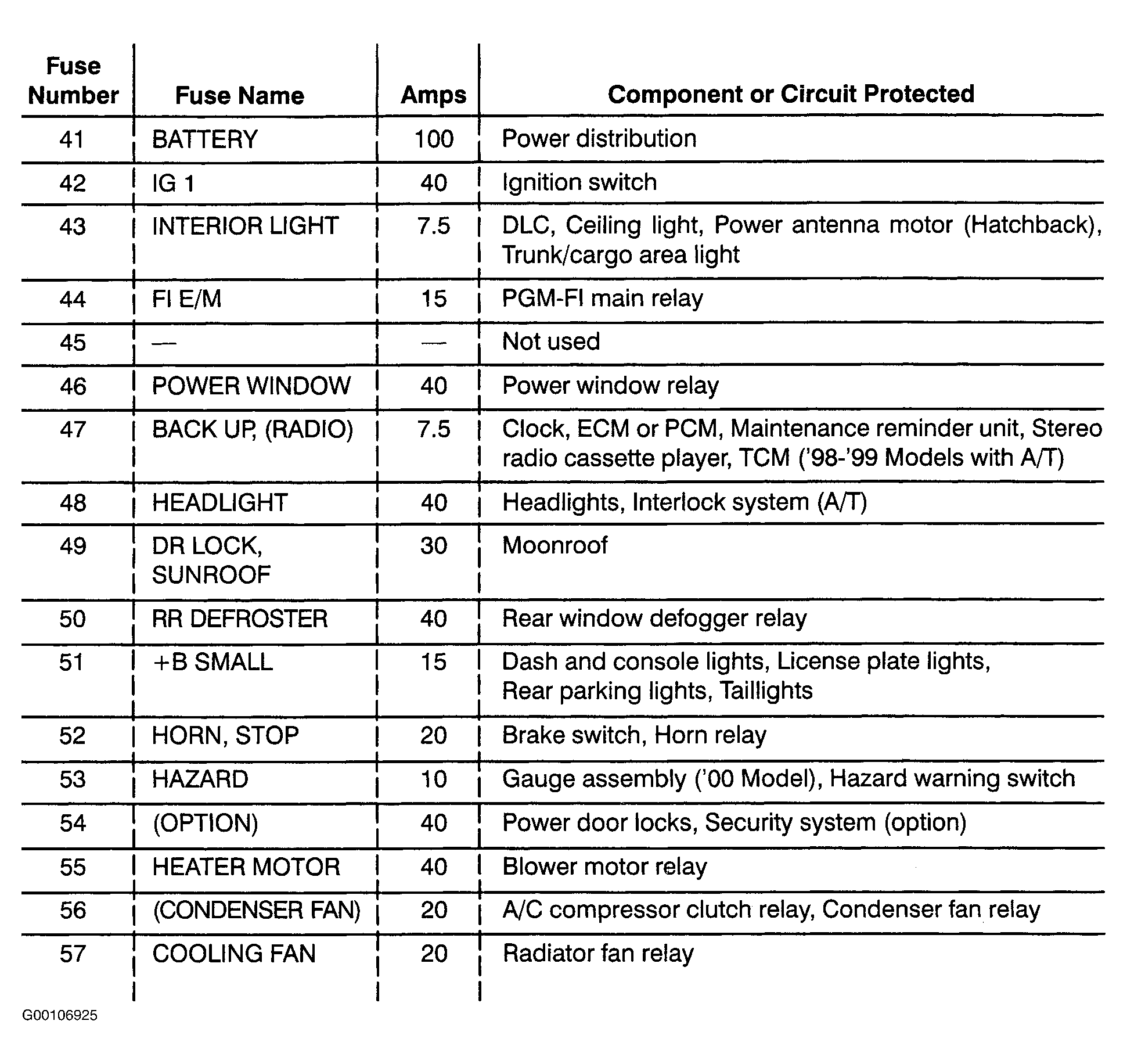

Fig 3: Under-Hood Fuse/Relay Box Legend

Courtesy of AMERICAN HONDA MOTOR CO., INC.
