Canadian Models

Remove dashboard lower cover and knee bolster. Daytime Running Lights (DRL) control unit is located on driver's side of vehicle near "A" pillar. Disconnect DRL control unit 4 and 8-pin connectors. Check connectors for damage or loose/corroded terminals, repair as necessary. Test each circuit of DRL unit connector for continuity or voltage as indicated. See Fig 1 . Repair as necessary. If all input tests are as specified, replace DRL control unit.

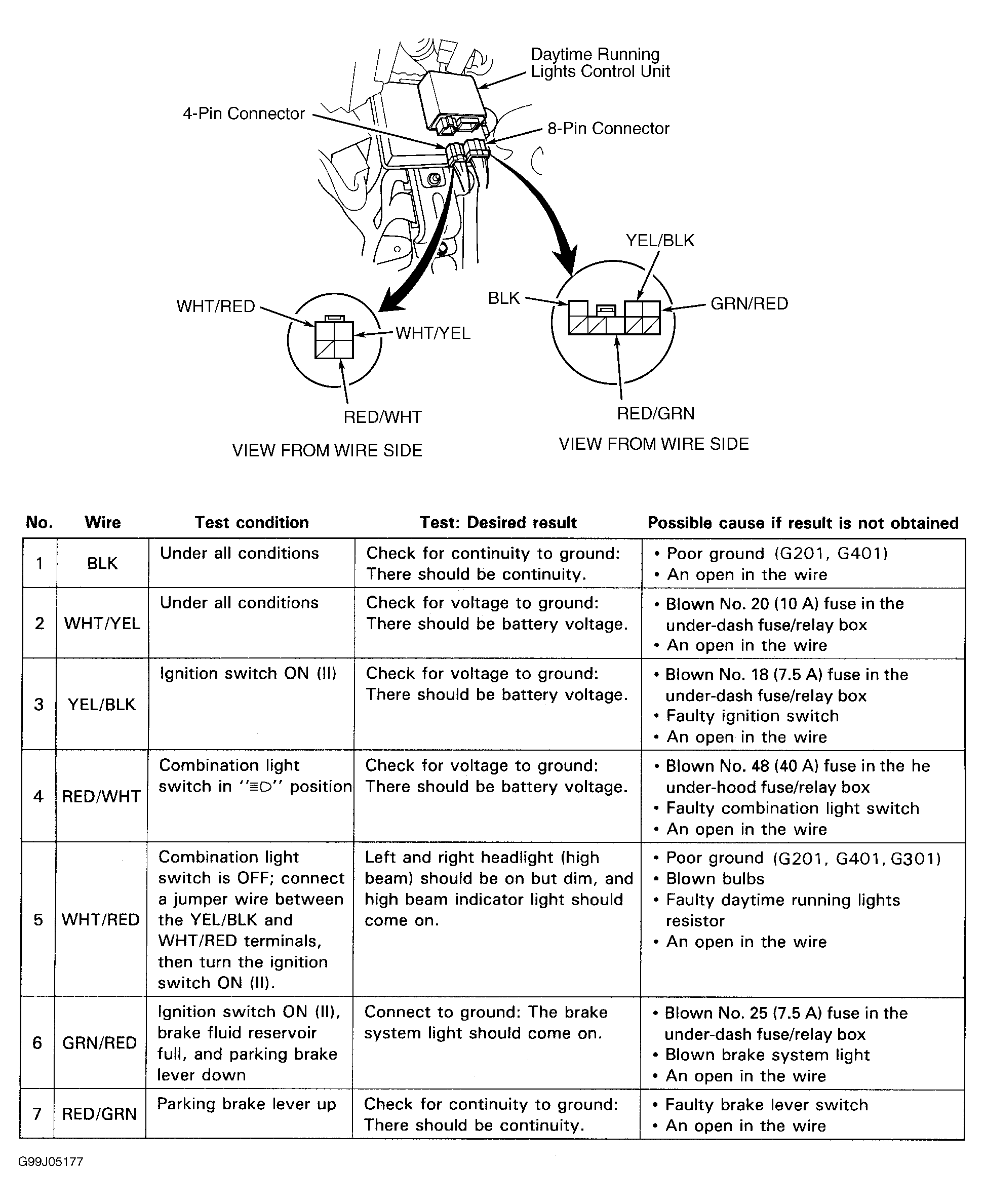

Fig 1: Daytime Running Lights Control Unit Input Test (Canada)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
