IAB Control System

For troubleshooting flow chart, see Fig 1 and Fig 2 .

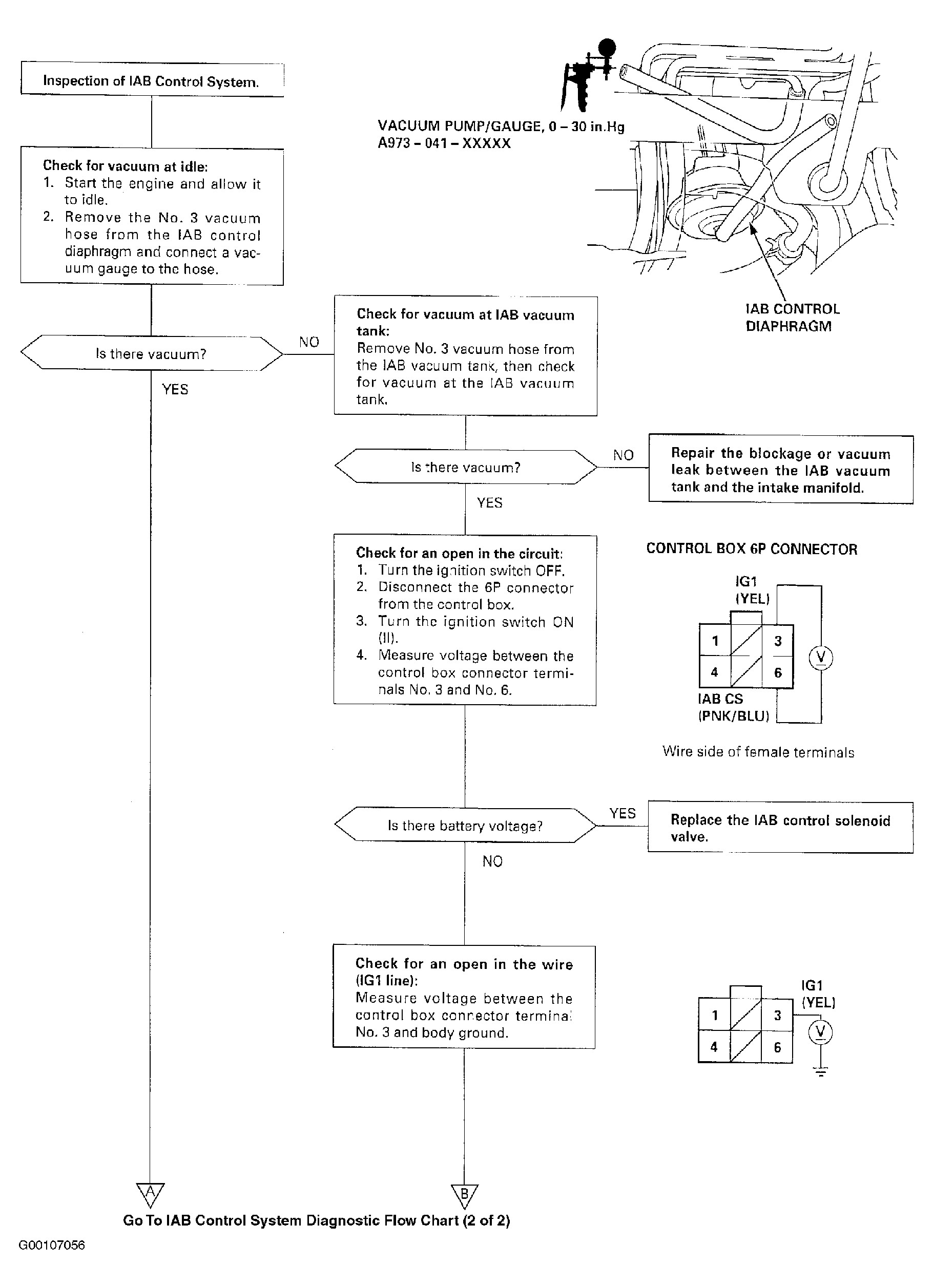

Fig 1: IAB Control System Diagnostic Flow Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

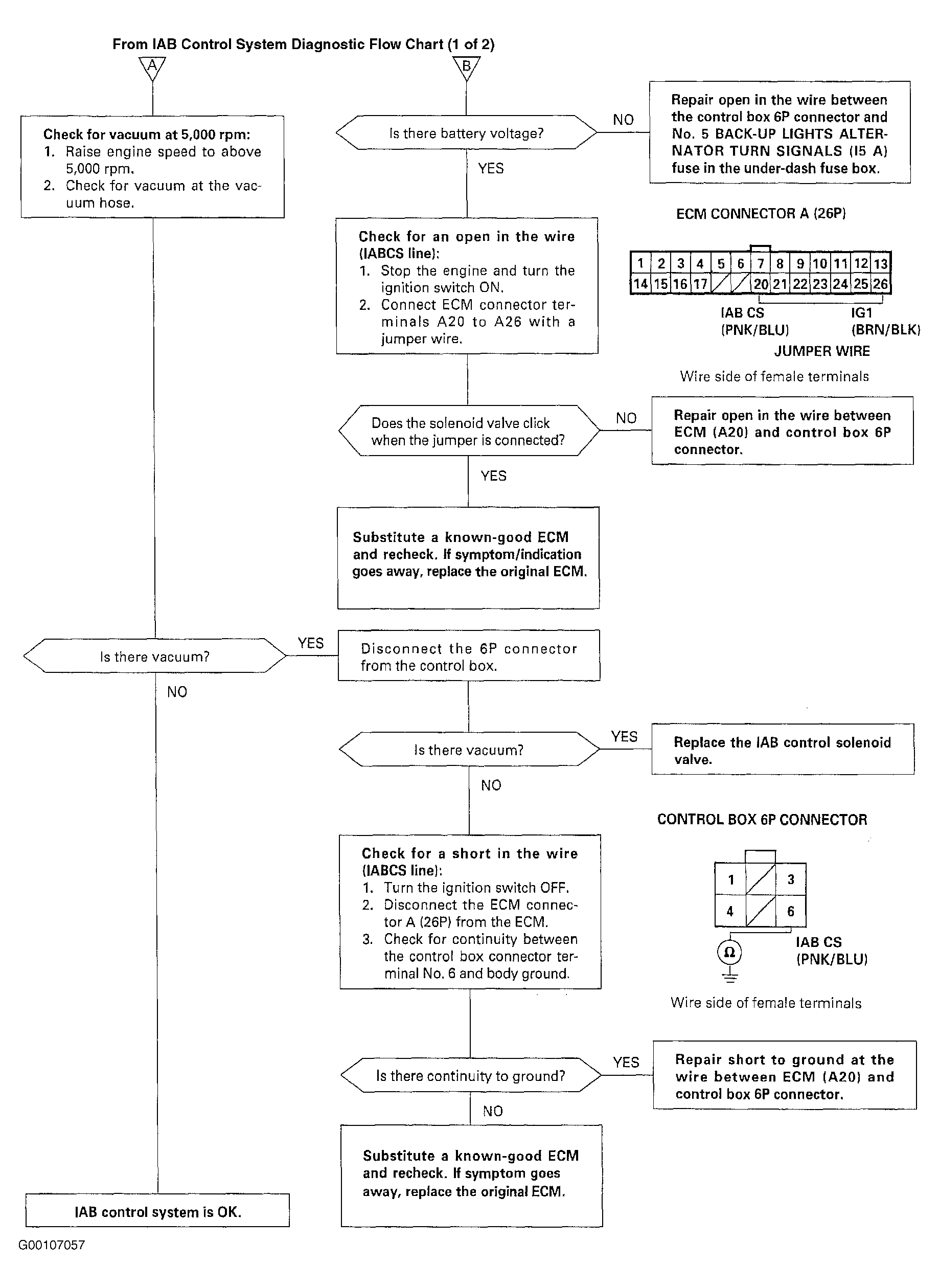

Fig 2: IAB Control System Diagnostic Flow Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
