PGM-FI Control System: Notes

NOTE: Components are grouped into two categories. The first category covers input devices, which control or produce voltage signals monitored by the ECM. See INPUT DEVICES  . The second category covers output signals, which are components controlled by the ECM. See OUTPUT SIGNALS  .

The Programmed Fuel Injection (PGM-FI) system controls the engine emission and performance functions as well as providing information to other vehicle systems. With the ignition switch in RUN or START, battery voltage is supplied from fuse No. 18 to the Engine Control Module (ECM) through the PGM-FI main relay and the Yellow/Black wires.

Battery voltage is supplied at all times from fuse No. 33 and the White/Yellow wires to the ECM for memory functions. The ECM is grounded through the Black wires to ground G101.

The ECM is self-diagnosing and monitors the sensors for irregular signals. The ECM is programmed with settings for fuel injector discharge duration at various engine speeds and manifold pressures. Discharge duration is modified by signals sent from various sensors to determine final discharge duration. If the engine is cold, the A/C compressor is on, the transmission is in gear (A/T only) or the alternator is charging, the ECM sends signal to the drive by wire system to maintain correct idle speed. The ECM is programmed with settings for basic ignition timing at various engine speeds and manifold pressures. Ignition timing is also adjusted for coolant temperature. A knock control system retards ignition timing when the knock sensor detects detonation.

For PGM-FI inputs and outputs, see Fig 1 . The PGM-FI also features the following:

For component locations, see Fig 2 -Fig 7 . For circuit schematic, see Fig 8 -Fig 22 .

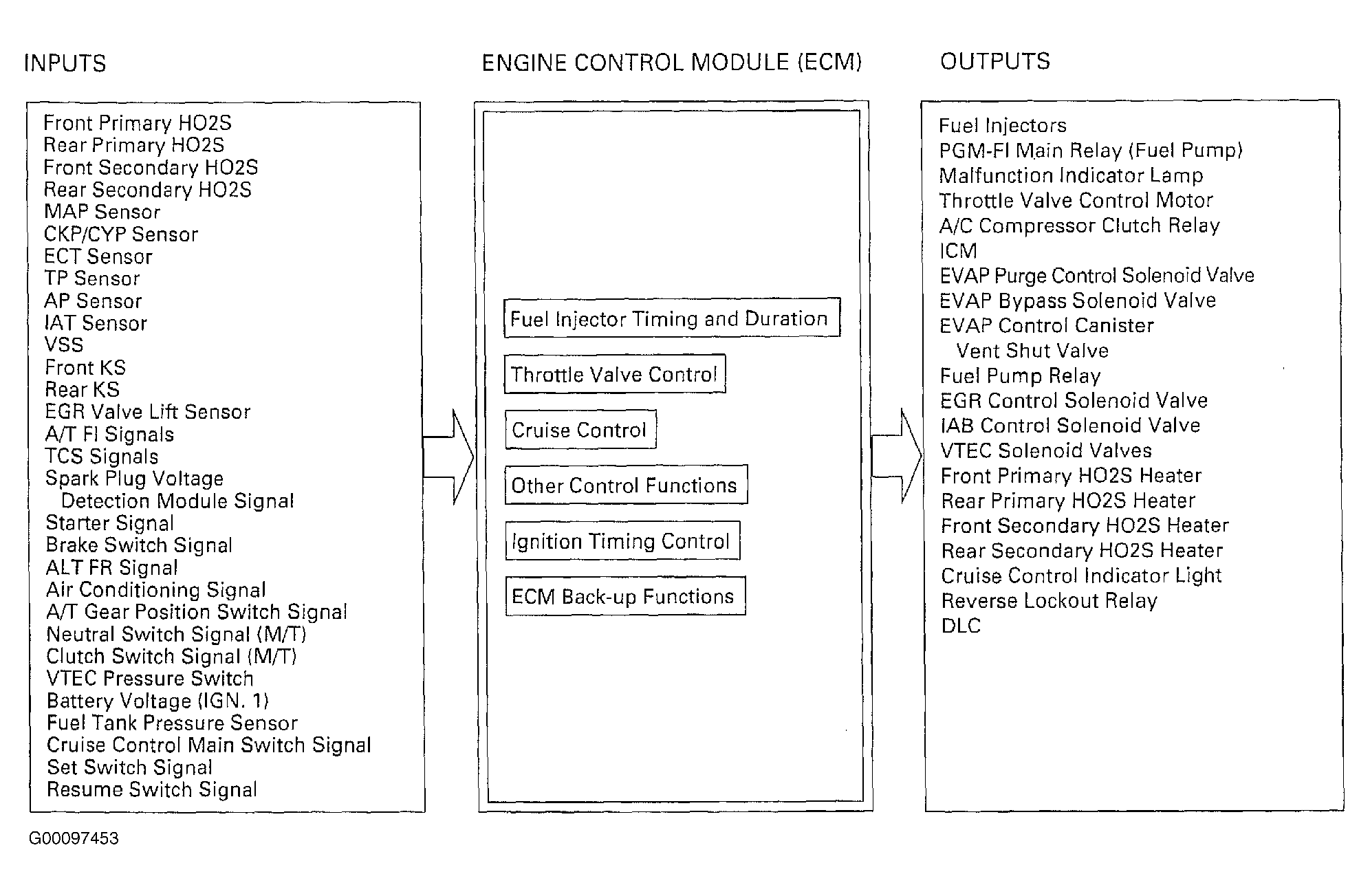

Fig 1: Identifying PGM-FI Inputs & Outputs
G00097453Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating PGM-FI Components (1 Of 6)
G00112267Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Locating PGM-FI Components (2 Of 6)
G00112268Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Locating PGM-FI Components (3 Of 6)
G00112269Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 5: Locating PGM-FI Components (4 Of 6)
G00112270Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 6: Locating PGM-FI Components (5 Of 6)
G00112271Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 7: Locating PGM-FI Components (6 Of 6)
G00112272Courtesy of AMERICAN HONDA MOTOR CO., INC.

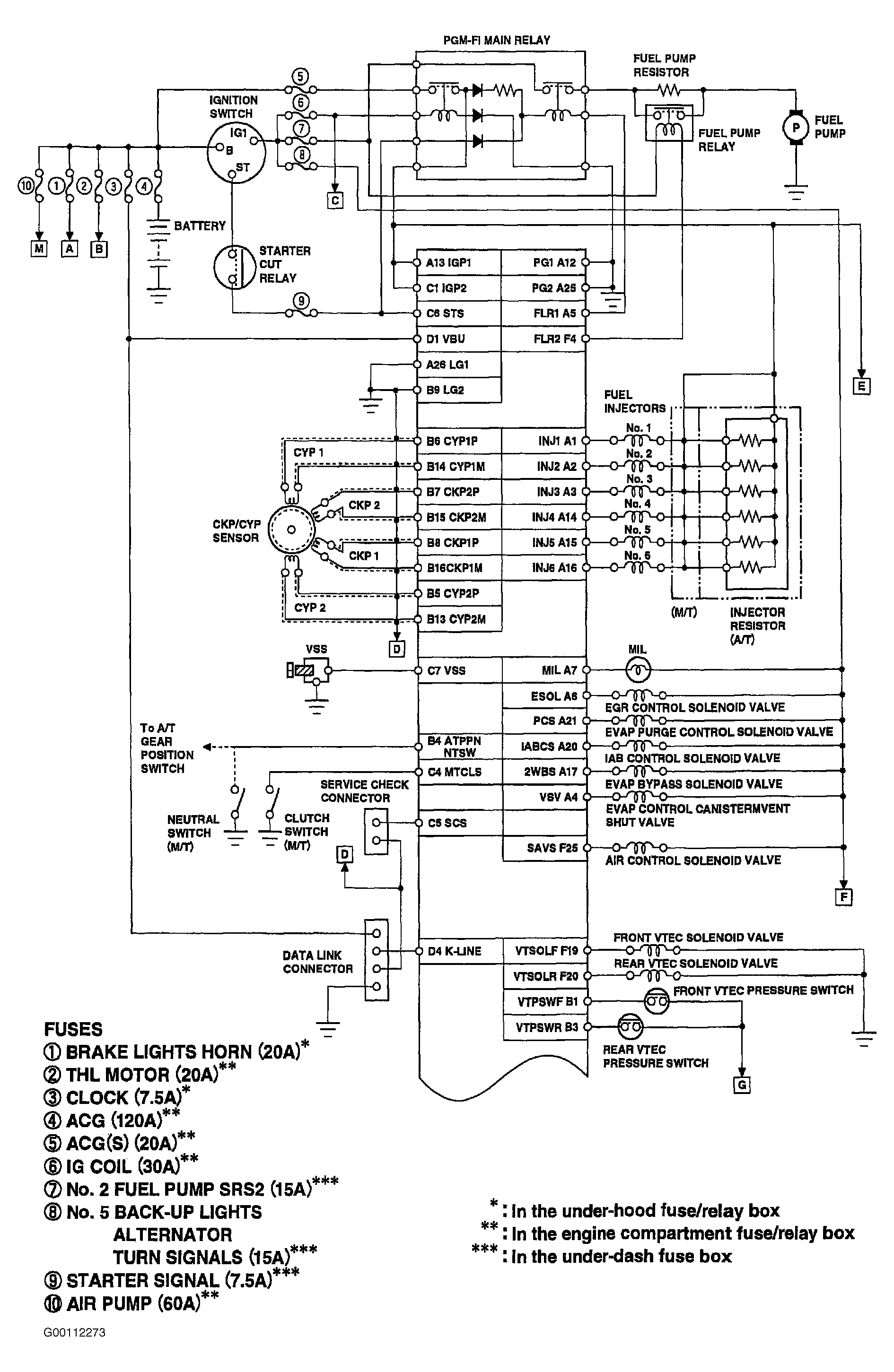

Fig 8: PGM-FI Circuit Schematic (1 Of 15)
G00112273Courtesy of AMERICAN HONDA MOTOR CO., INC.

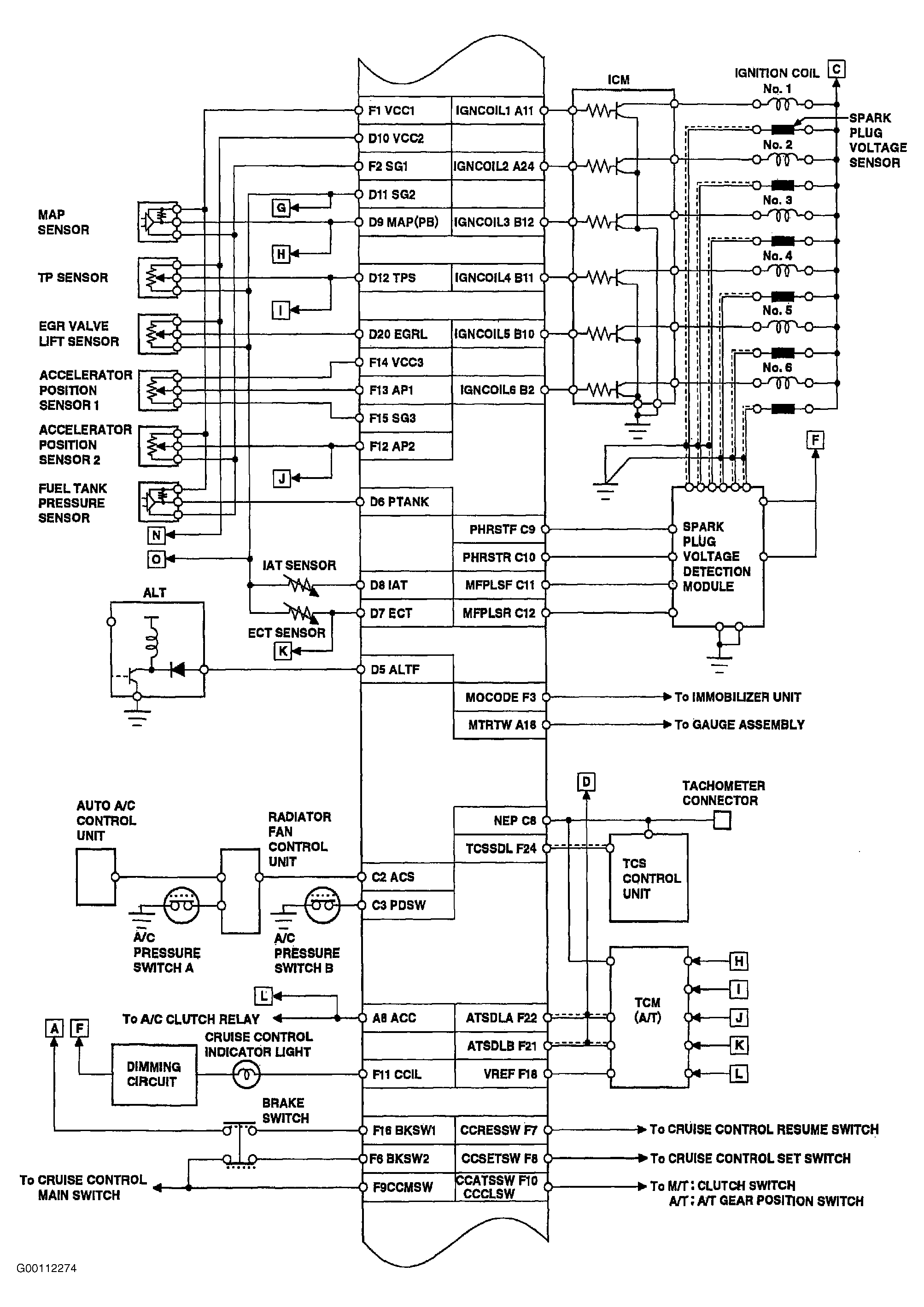

Fig 9: PGM-FI Circuit Schematic (2 Of 15)
G00112274Courtesy of AMERICAN HONDA MOTOR CO., INC.

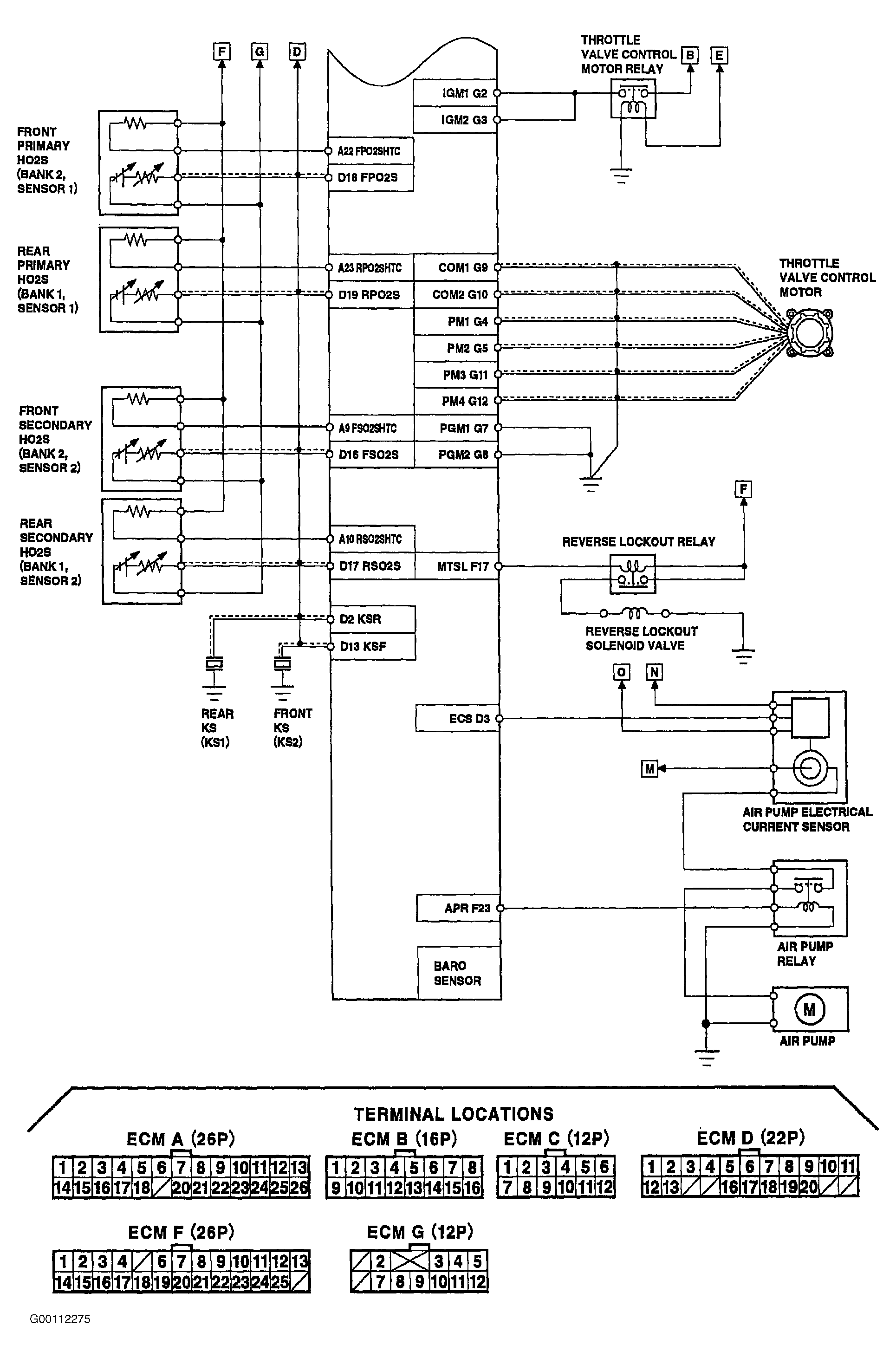

Fig 10: PGM-FI Circuit Schematic (3 Of 15)
G00112275Courtesy of AMERICAN HONDA MOTOR CO., INC.

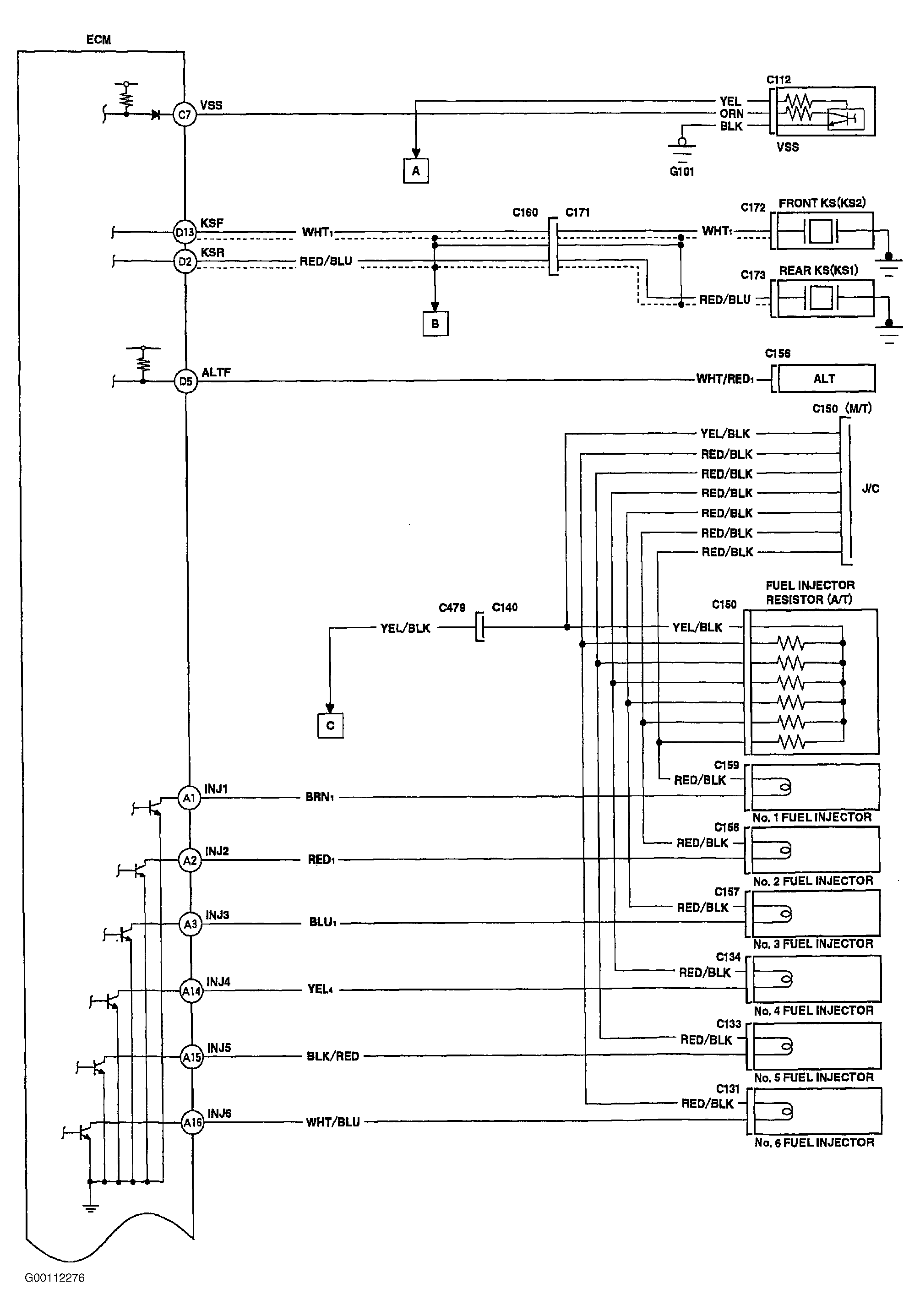

Fig 11: PGM-FI Circuit Schematic (4 Of 15)
G00112276Courtesy of AMERICAN HONDA MOTOR CO., INC.

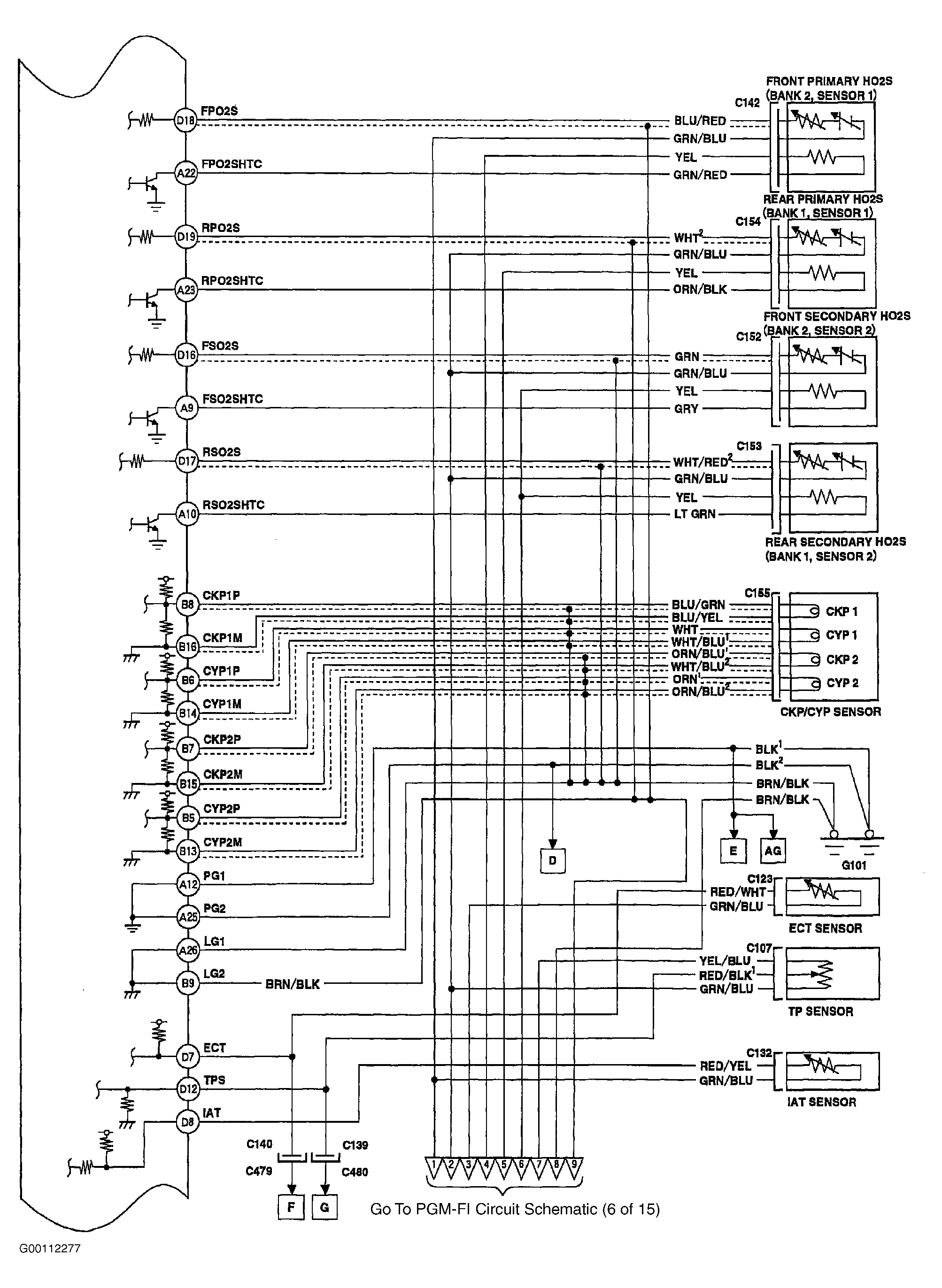

Fig 12: PGM-FI Circuit Schematic (5 Of 15)
G00112277Courtesy of AMERICAN HONDA MOTOR CO., INC.

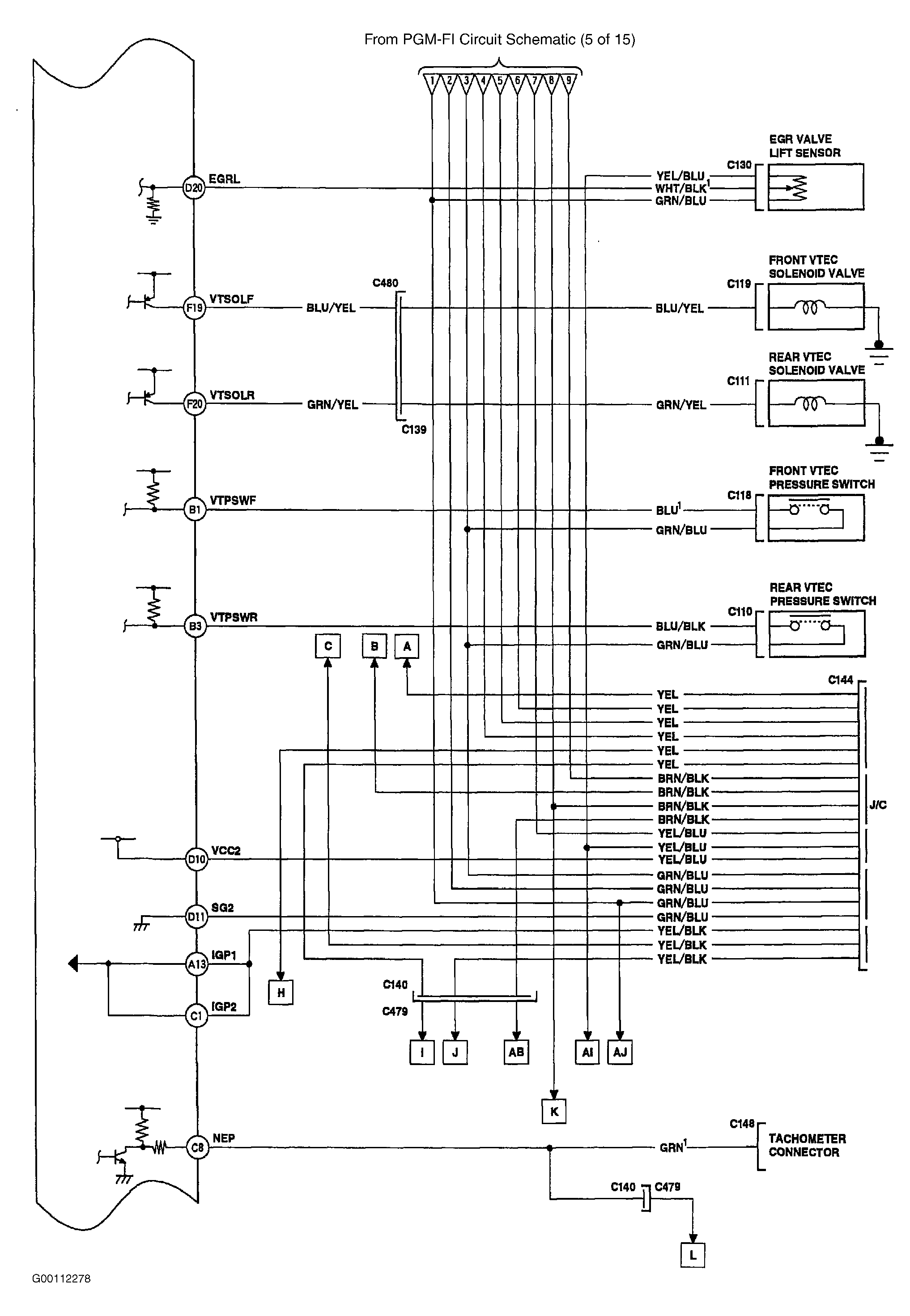

Fig 13: PGM-FI Circuit Schematic (6 Of 15)
G00112278Courtesy of AMERICAN HONDA MOTOR CO., INC.

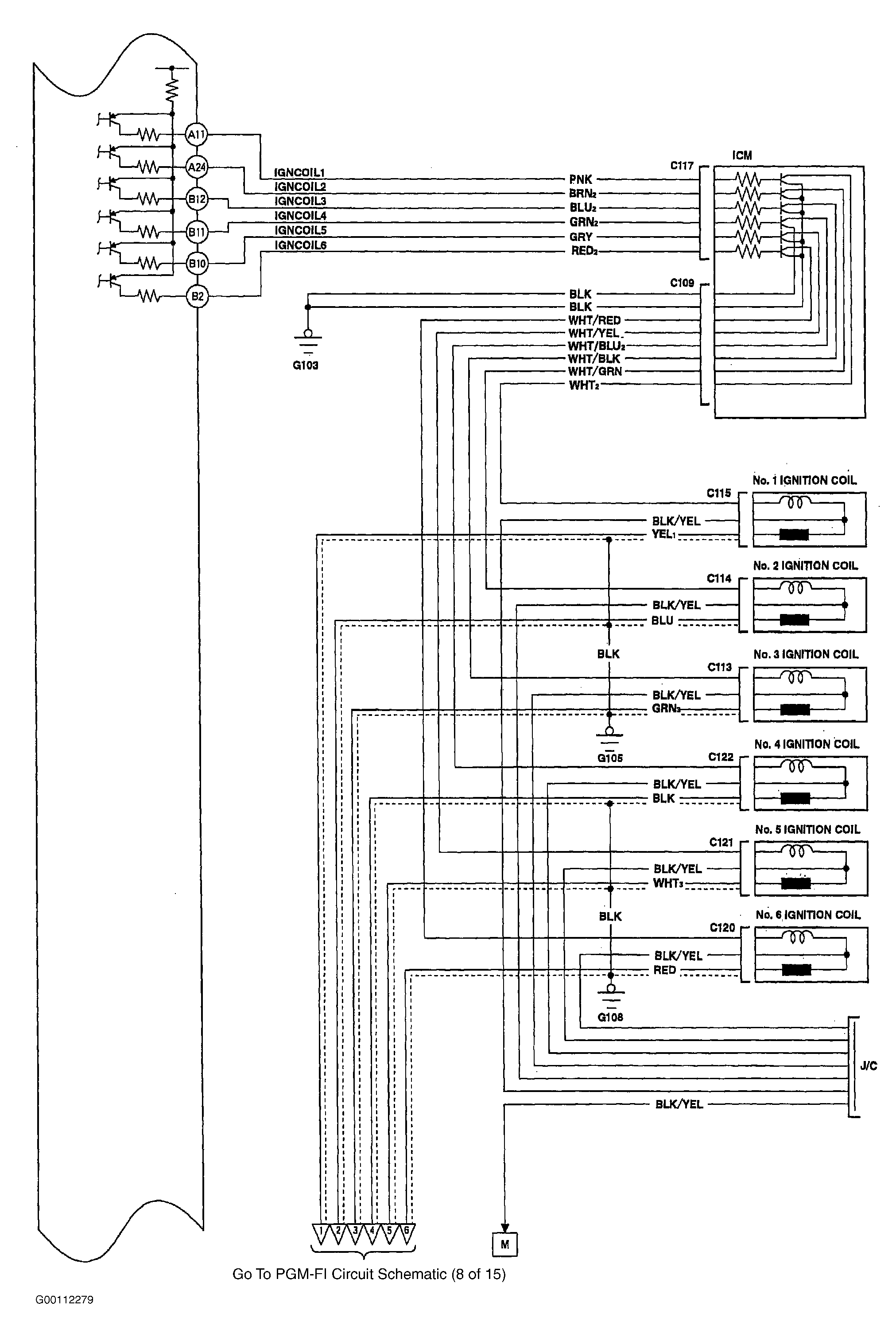

Fig 14: PGM-FI Circuit Schematic (7 Of 15)
G00112279Courtesy of AMERICAN HONDA MOTOR CO., INC.

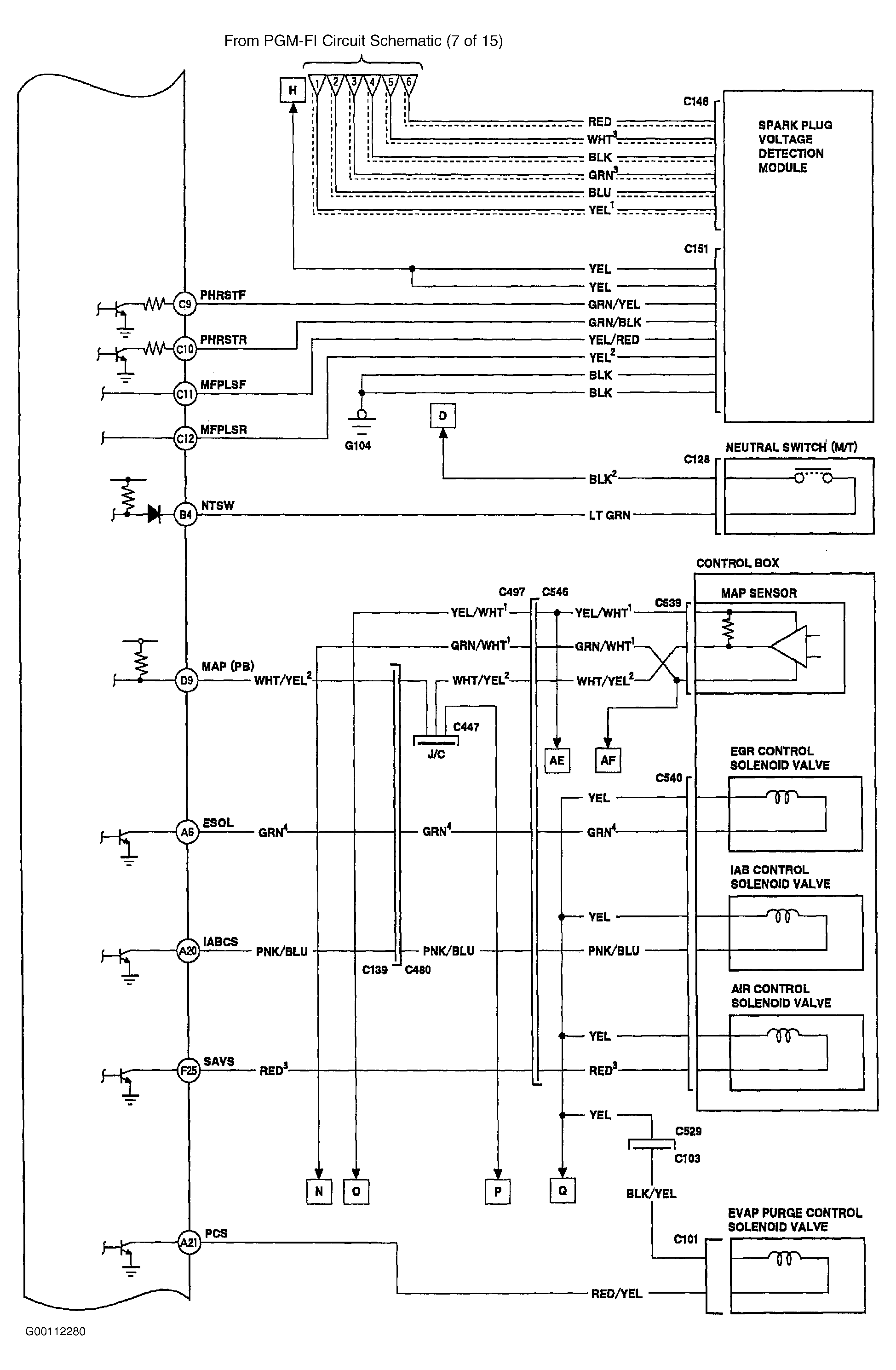

Fig 15: PGM-FI Circuit Schematic (8 Of 15)
G00112280Courtesy of AMERICAN HONDA MOTOR CO., INC.

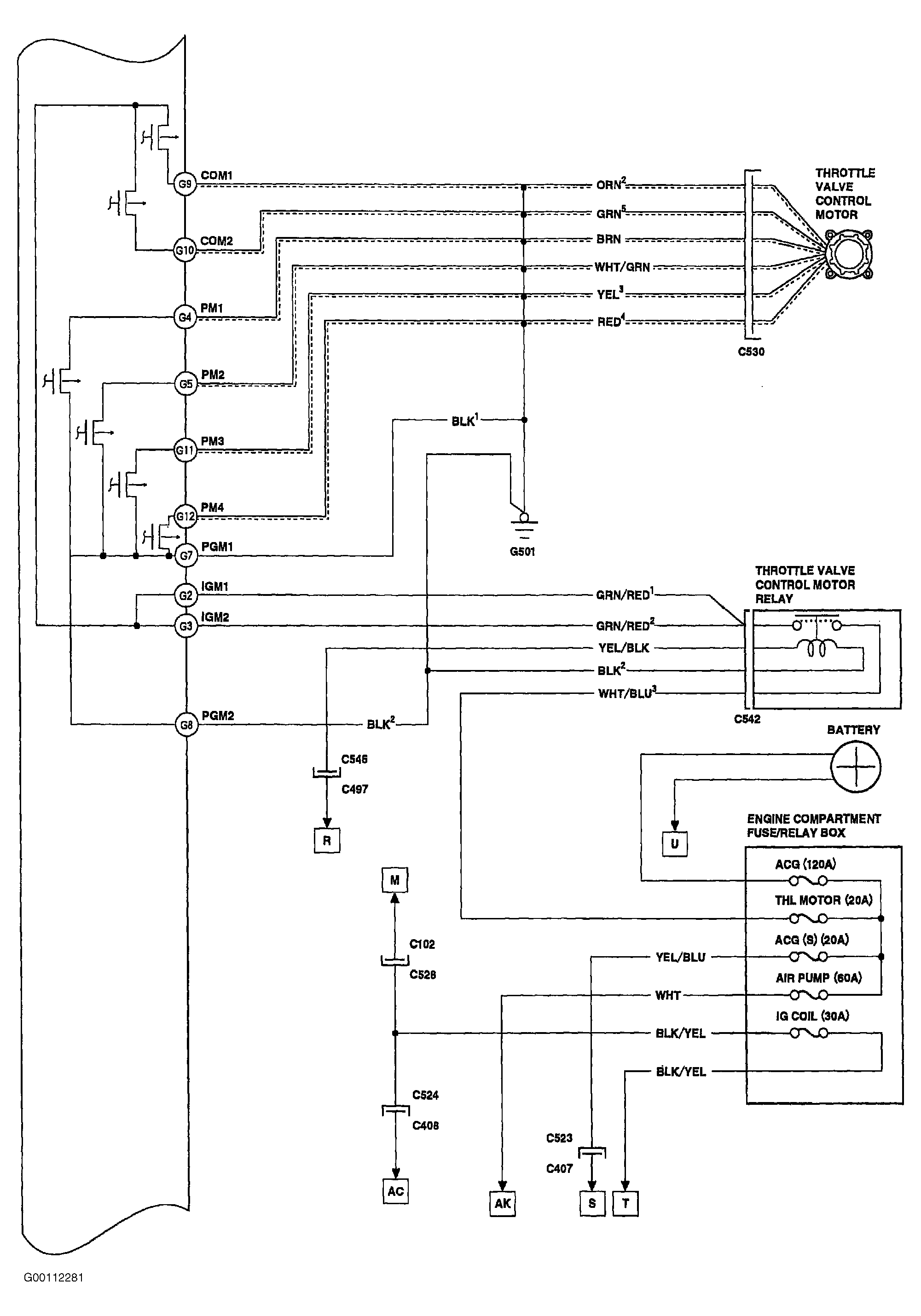

Fig 16: PGM-FI Circuit Schematic (9 Of 15)
G00112281Courtesy of AMERICAN HONDA MOTOR CO., INC.

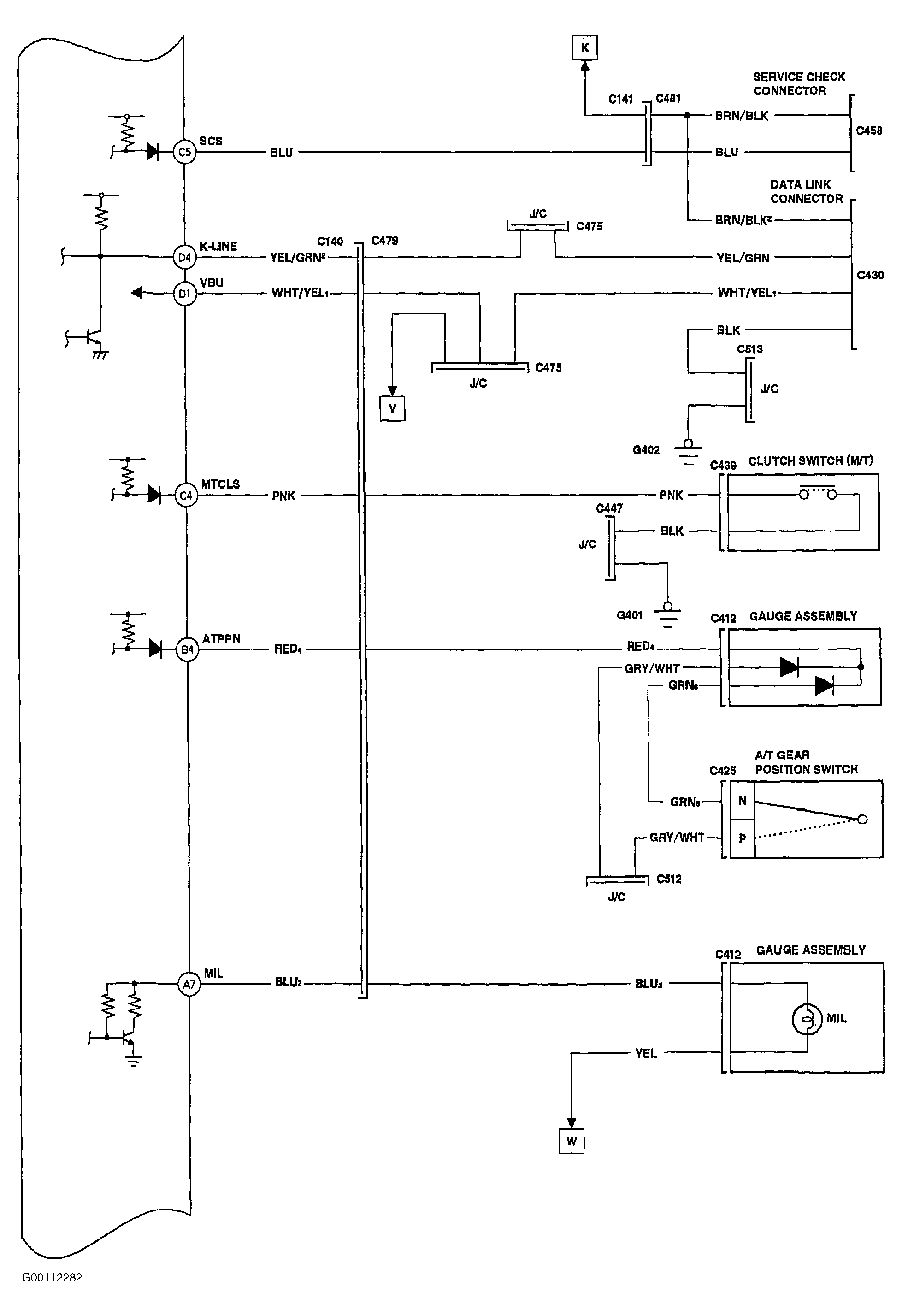

Fig 17: PGM-FI Circuit Schematic (10 Of 15)
G00112282Courtesy of AMERICAN HONDA MOTOR CO., INC.

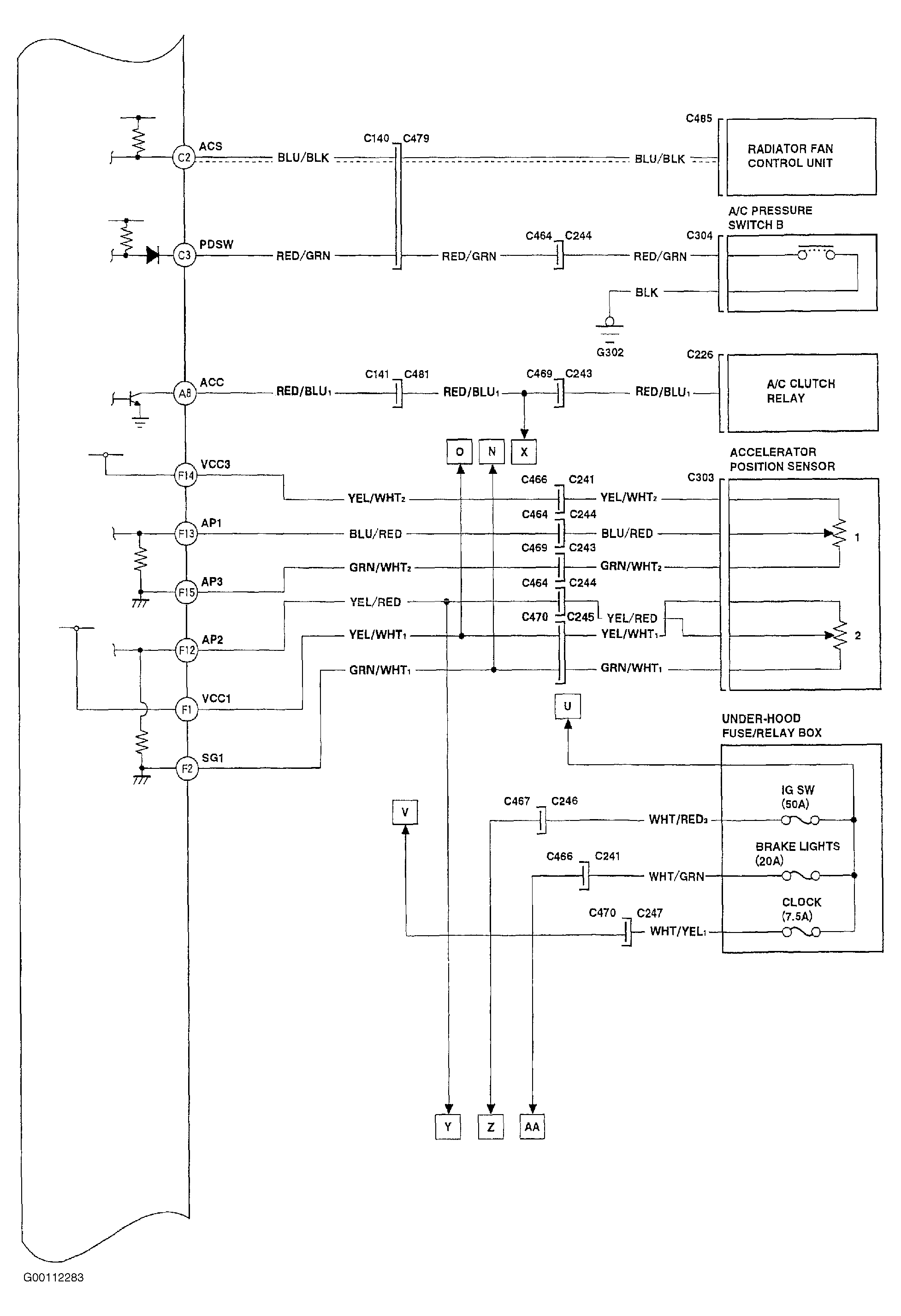

Fig 18: PGM-FI Circuit Schematic (11 Of 15)
G00112283Courtesy of AMERICAN HONDA MOTOR CO., INC.

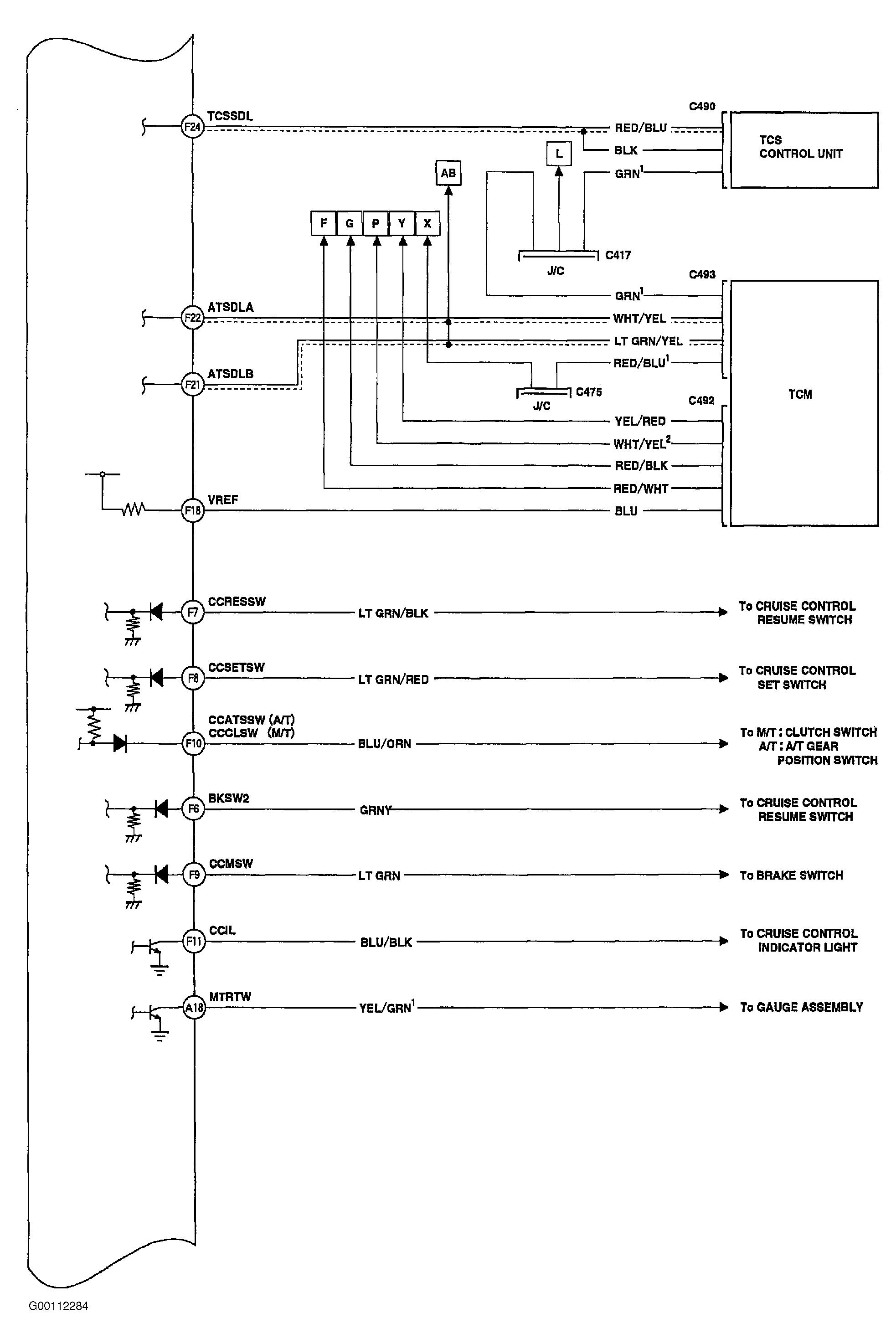

Fig 19: PGM-FI Circuit Schematic (12 Of 15)
G00112284Courtesy of AMERICAN HONDA MOTOR CO., INC.

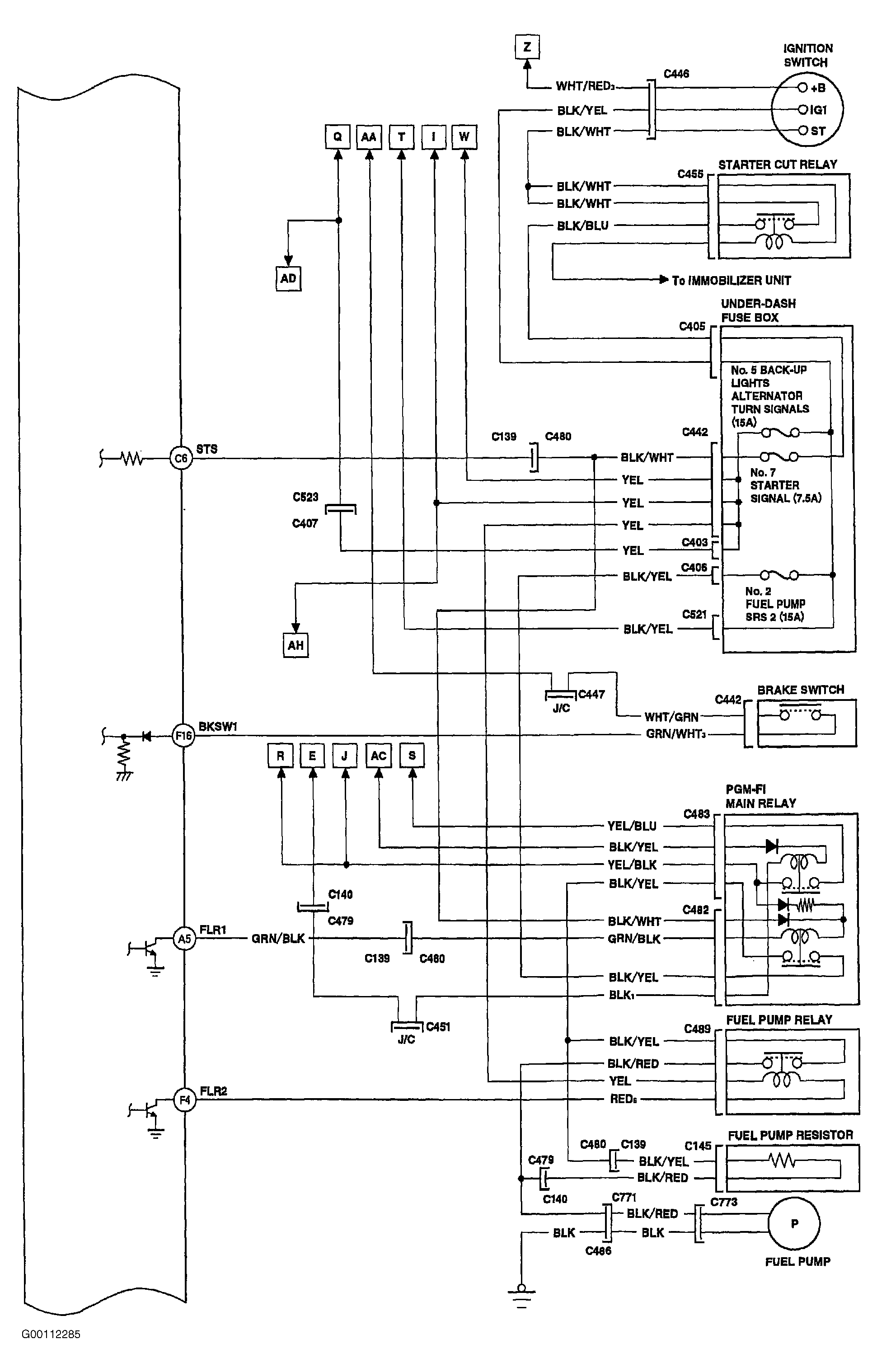

Fig 20: PGM-FI Circuit Schematic (13 Of 15)
G00112285Courtesy of AMERICAN HONDA MOTOR CO., INC.

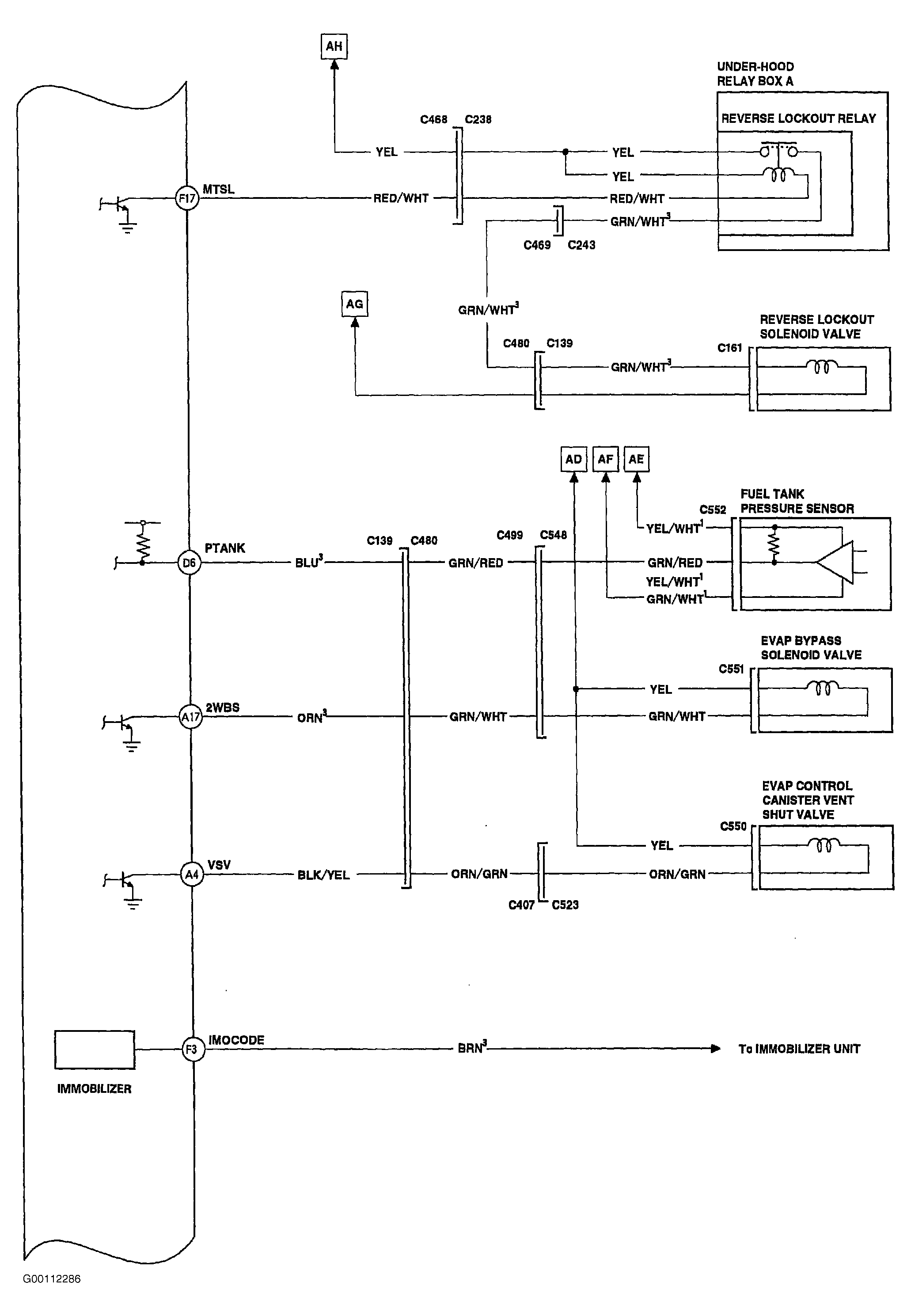

Fig 21: PGM-FI Circuit Schematic (14 Of 15)
G00112286Courtesy of AMERICAN HONDA MOTOR CO., INC.

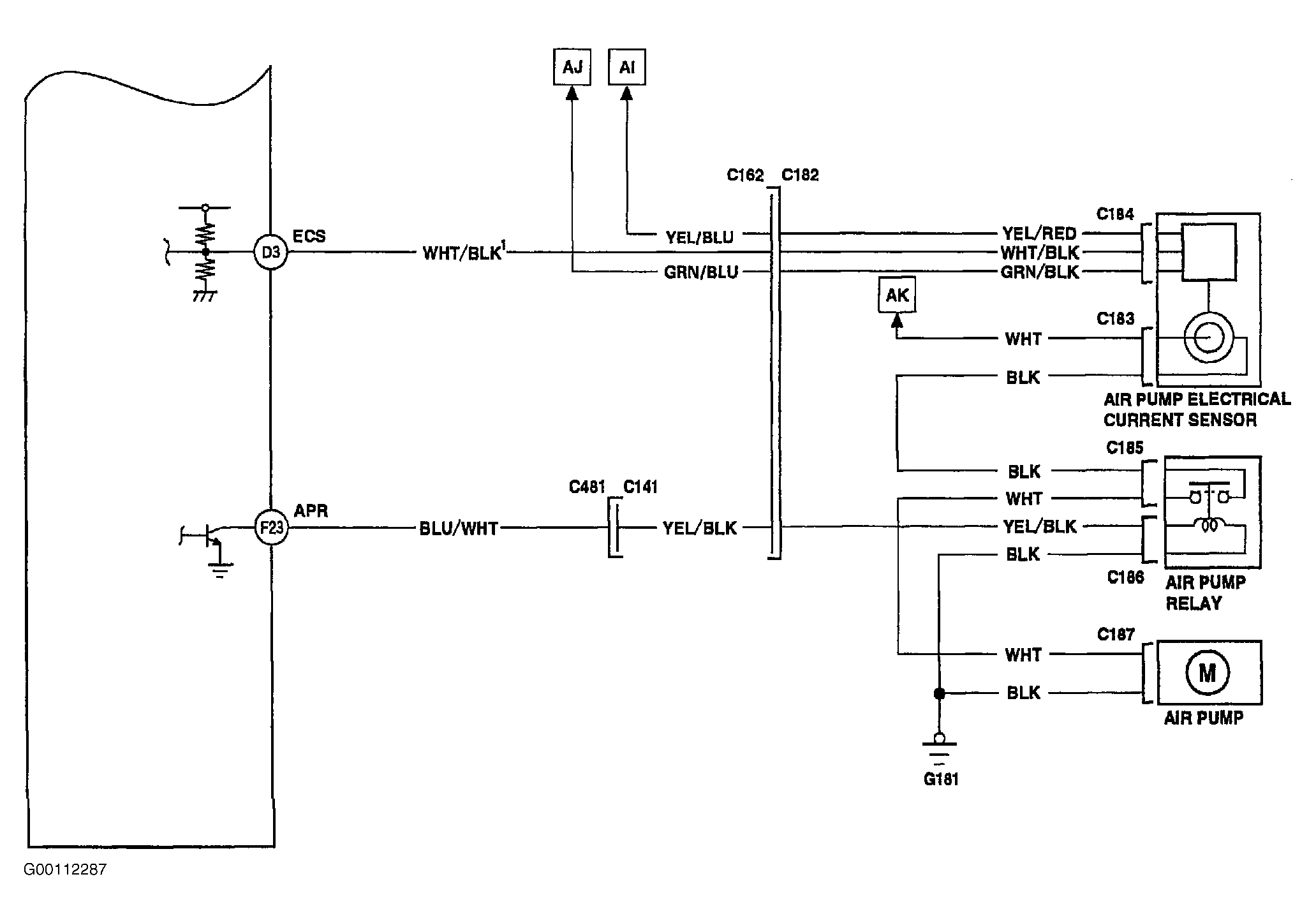

Fig 22: PGM-FI Circuit Schematic (15 Of 15)
G00112287Courtesy of AMERICAN HONDA MOTOR CO., INC.
