Power Mirror Replacement
- Lower the door glass fully.

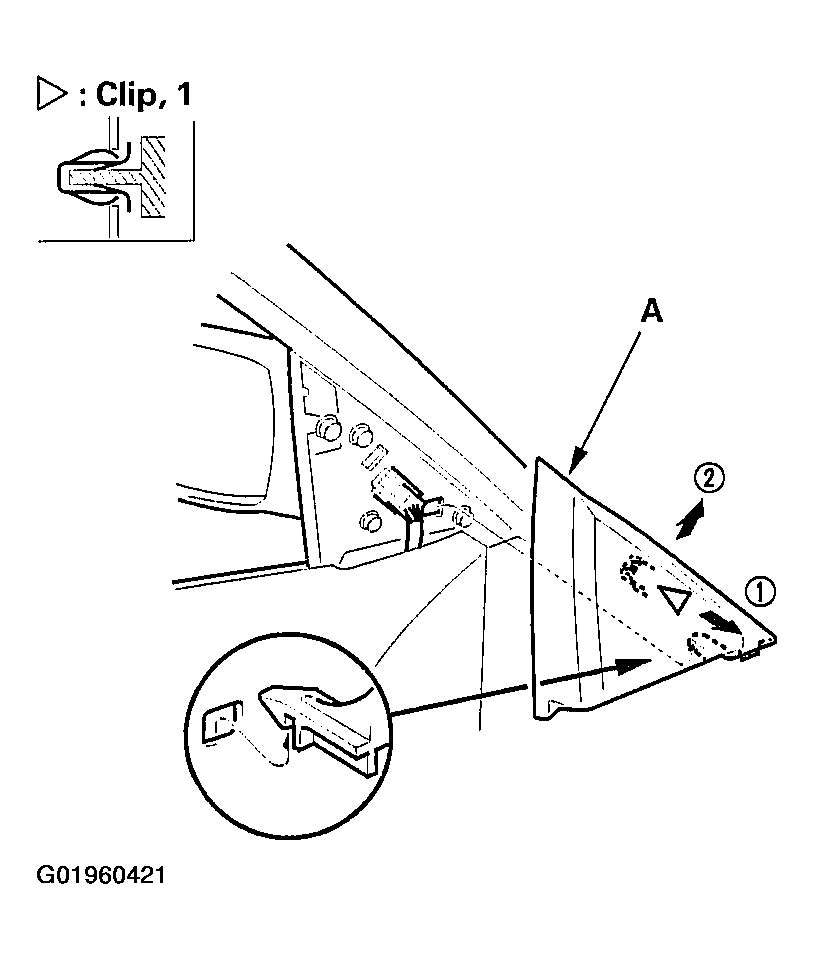

- Carefully pry out the mirror mount cover (A) by hand in the sequence shown.
- Disconnect the connector (A).

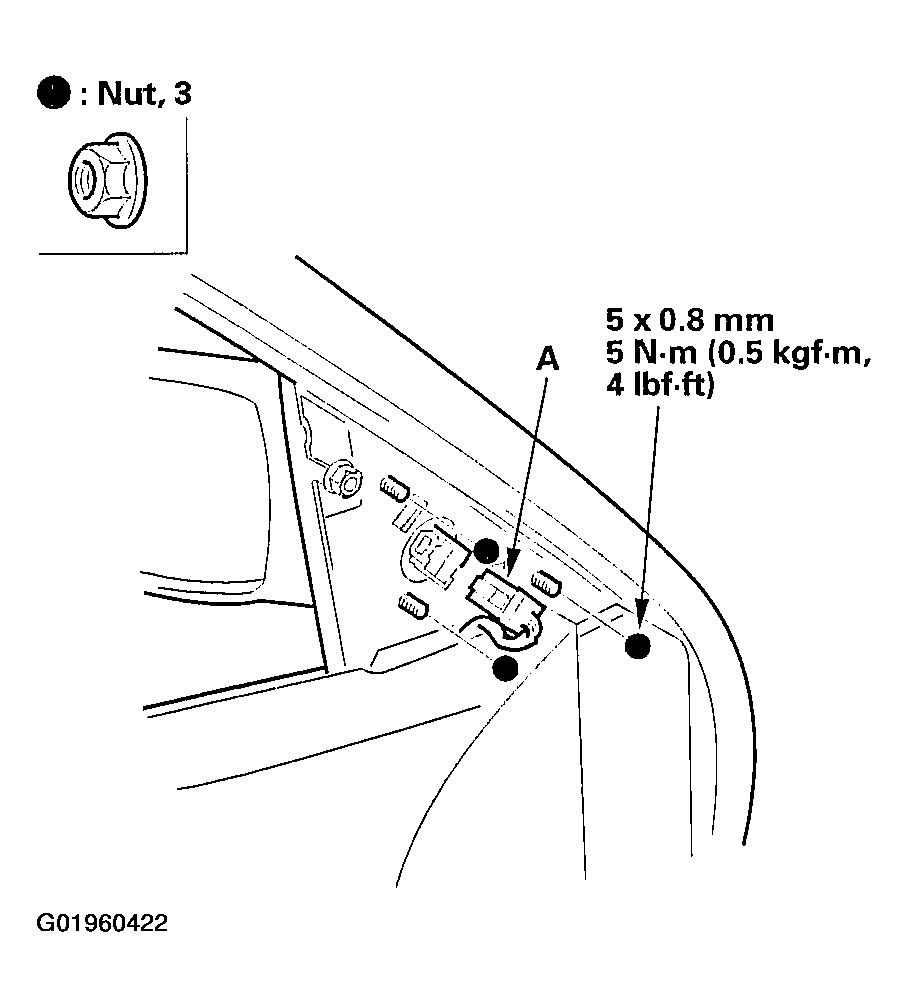

- While holding the mirror, remove the nuts securing the mirror.

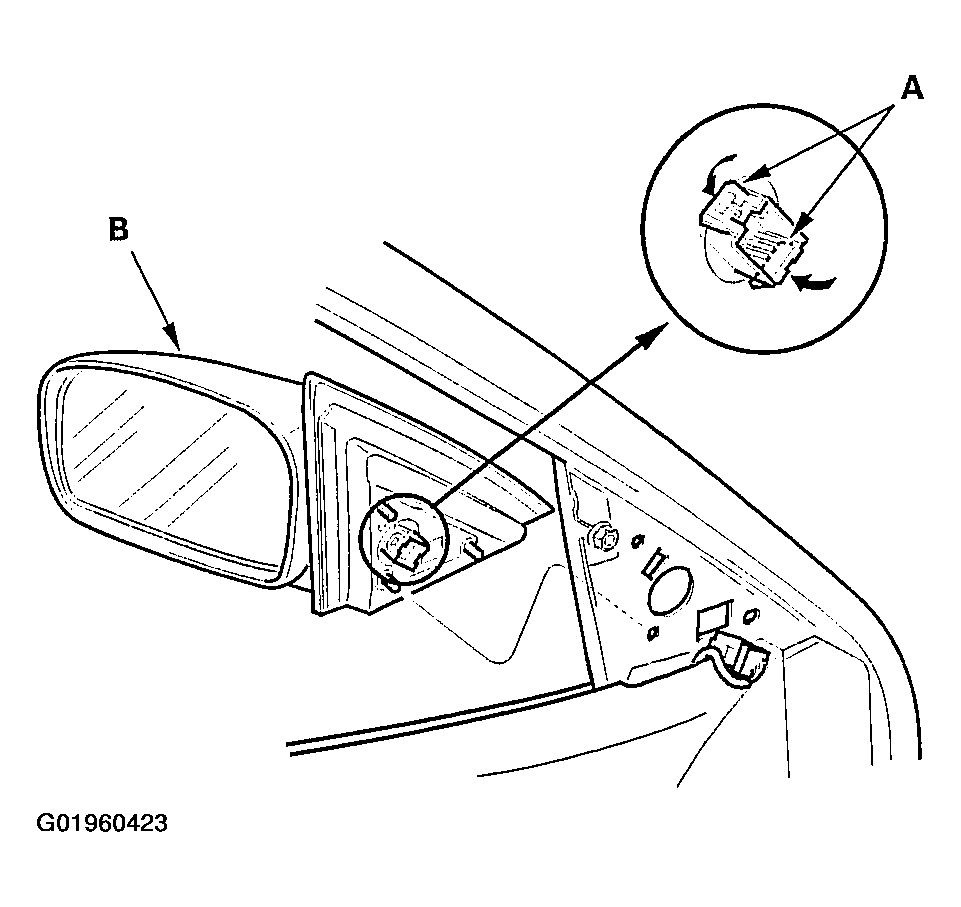

- While holding the mirror, push out the connector clip (A), and remove the mirror (B). Take care not to scratch the door.
- Install the mirror in the reverse order of removal, and make sure the connector is plugged in properly.
