Driver's UNDERDASH Fuse/Relay Box: Removal

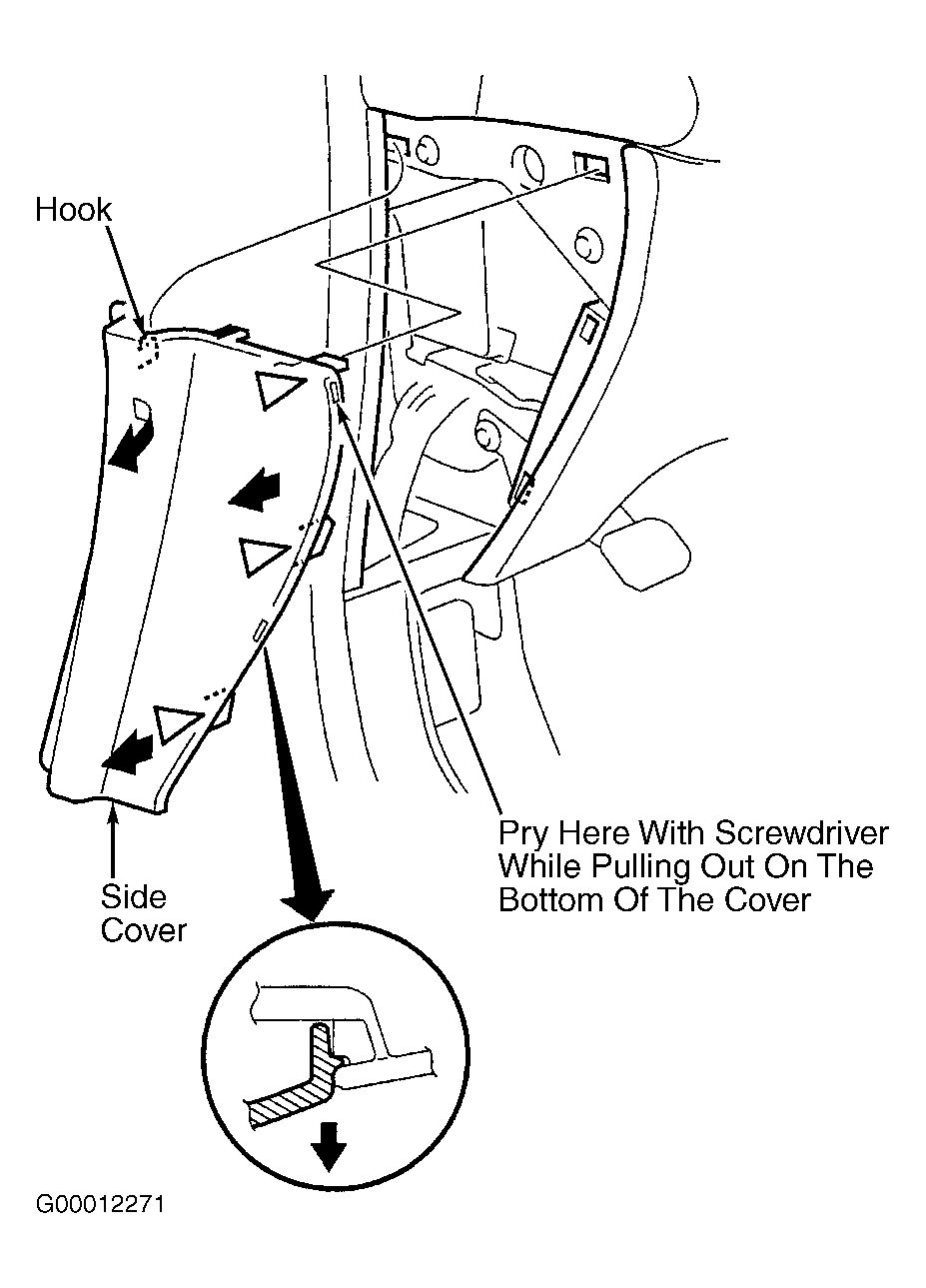

Disconnect negative battery cable, then positive battery cable, and wait at least 3 minutes before proceeding. Detach clips, release hook and remove left instrument panel side cover. See Fig 1 . Remove screw, gently pull down on lower left instrument panel cover to release right clip. Disconnect remaining clips, brightness controller harness connector, and remove lower left instrument panel cover. Remove door sill molding and left kick panel. Remove bolts, disconnect harness connectors and remove driver's underdash fuse/relay box.
