Home › Acura › 2001 › 3.2CL Base › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock/Traction Control › Component Locations

Component Locations

See Fig 1.

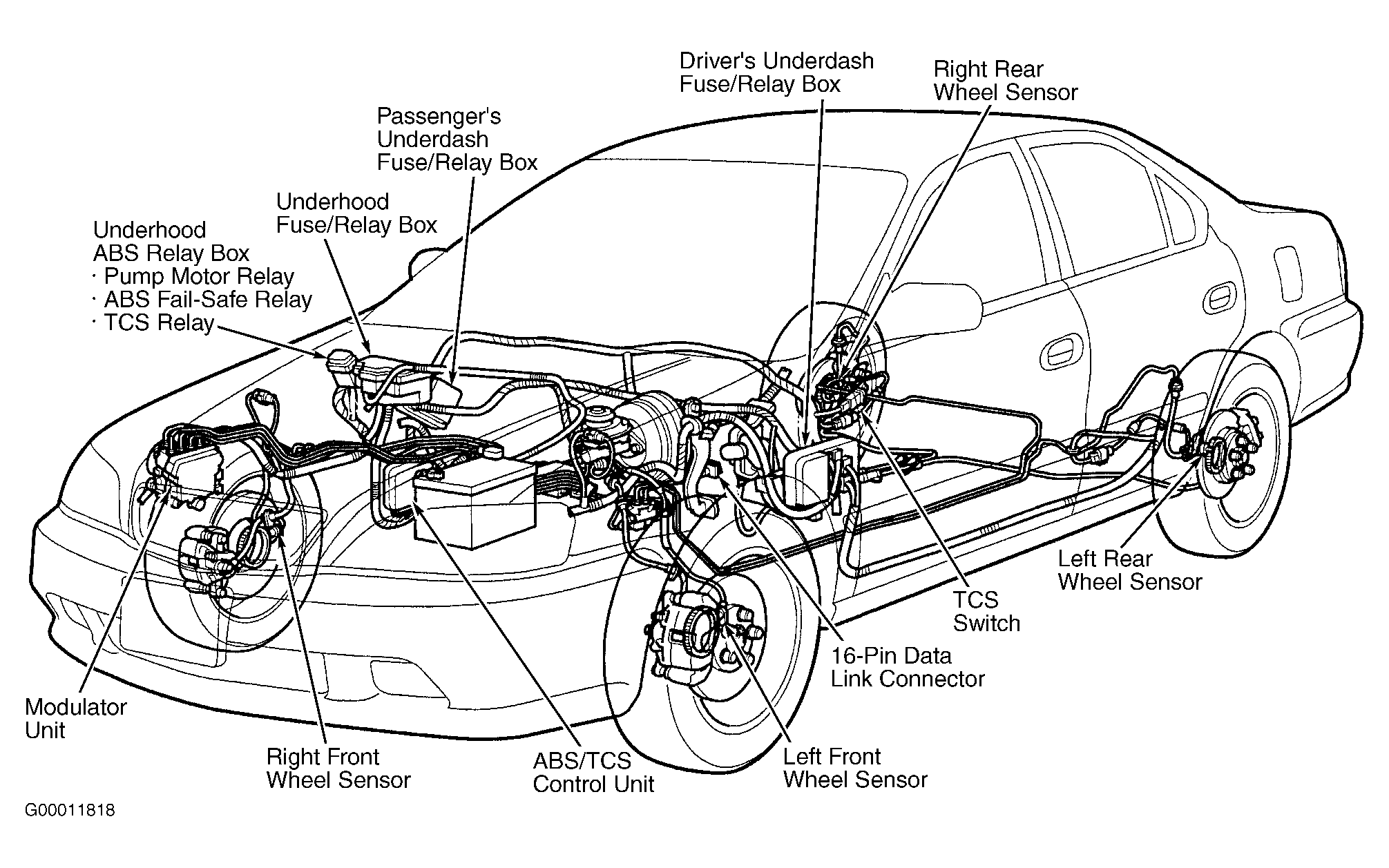

Fig 1: Identifying ABS/TCS Components
G00011818Courtesy of AMERICAN HONDA MOTOR CO., INC.
