Passenger's Power Seat Control Unit Inputs
WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

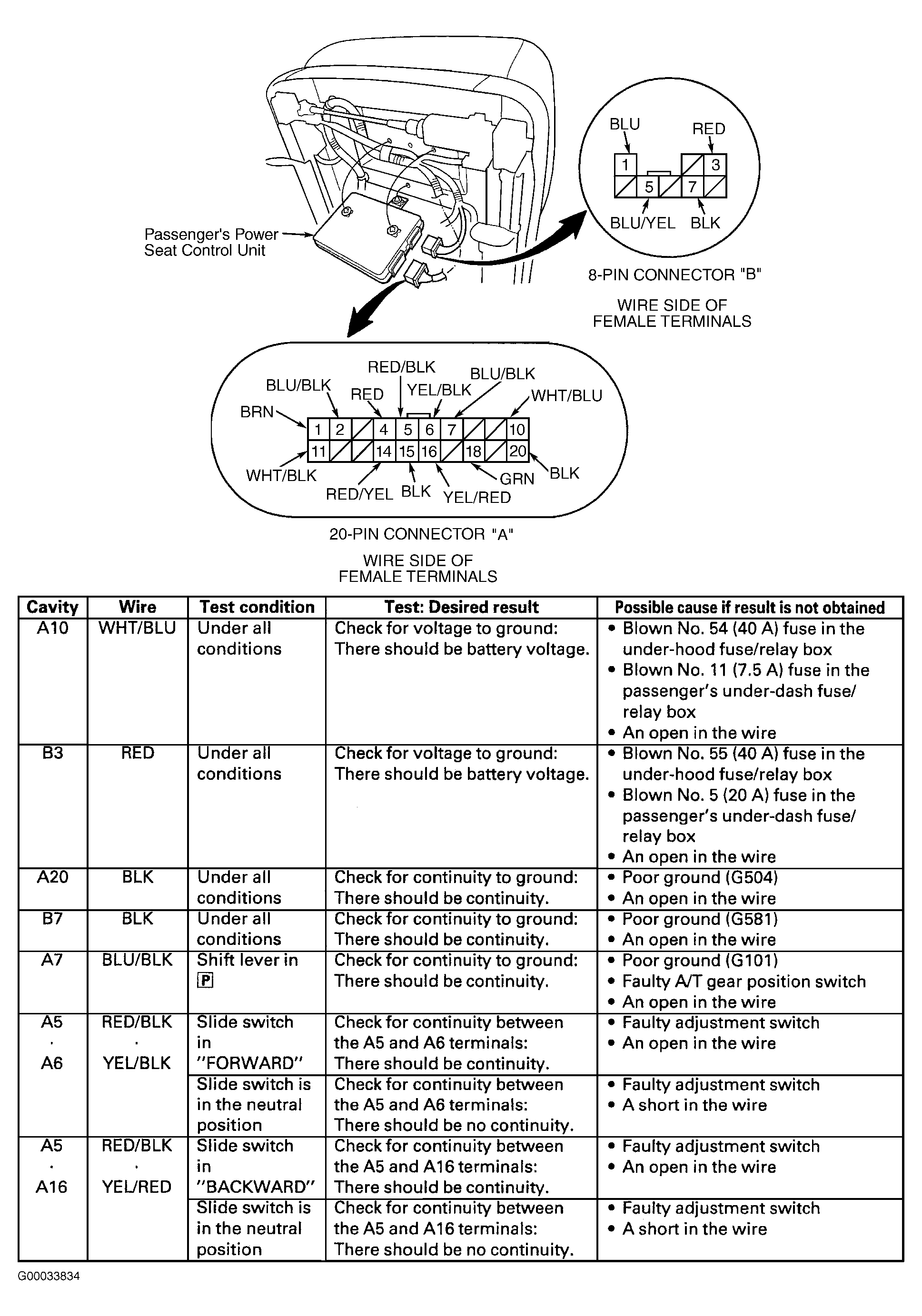

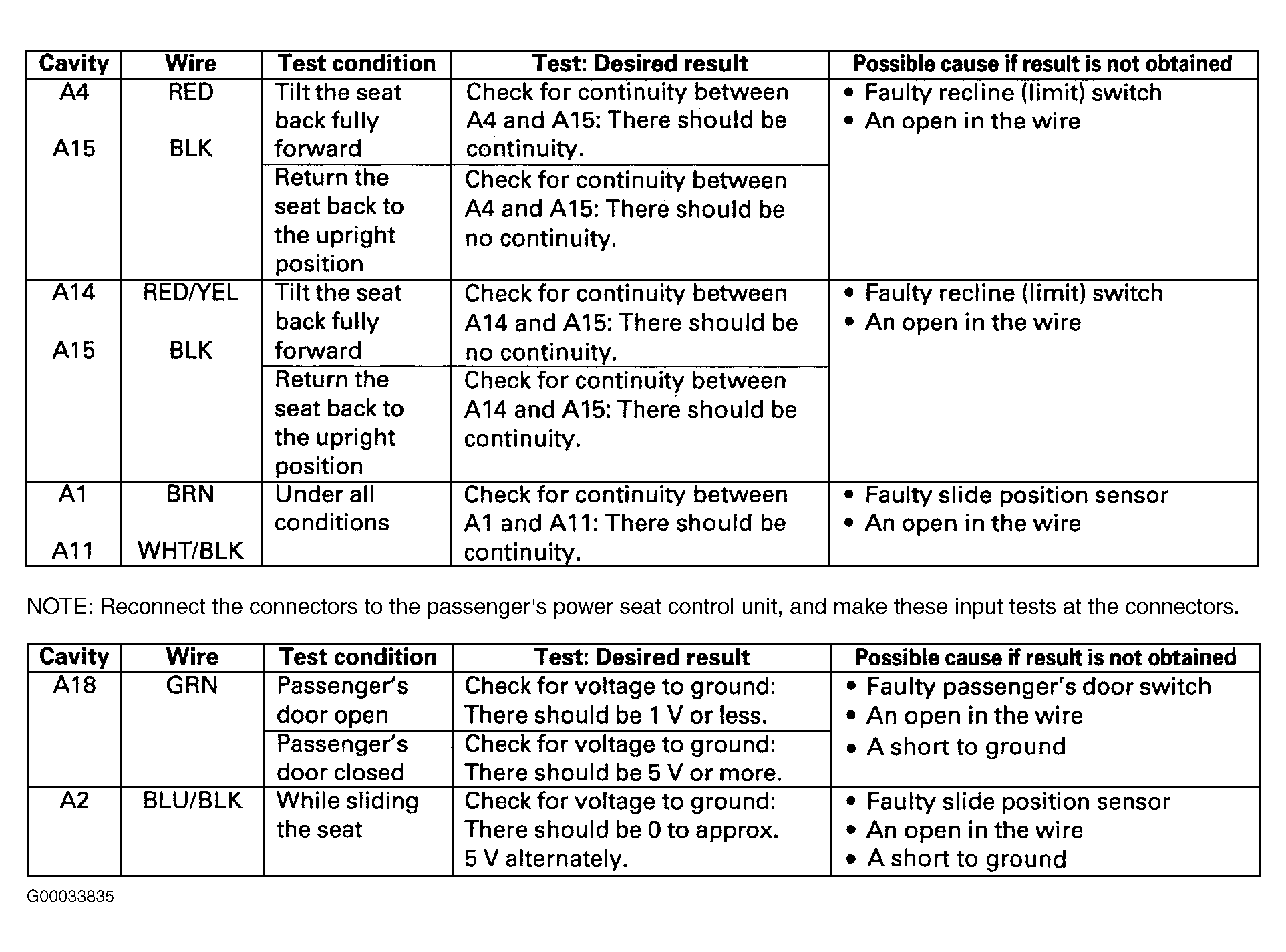

Locate passenger's power seat control unit at bottom front of passenger's seat. Disconnect both harness connectors. Inspect connectors and terminals. Check for bent, loose or corroded terminals. Repair as necessary and retest system. If terminals are okay, perform input tests at specified terminals. See Fig 1 -Fig 2 . If all input tests are as specified and problem is still present, replace passenger's power seat control unit.
