OEM General Information - 3.2TL
›
Revised Component Terms
Revised Component Terms

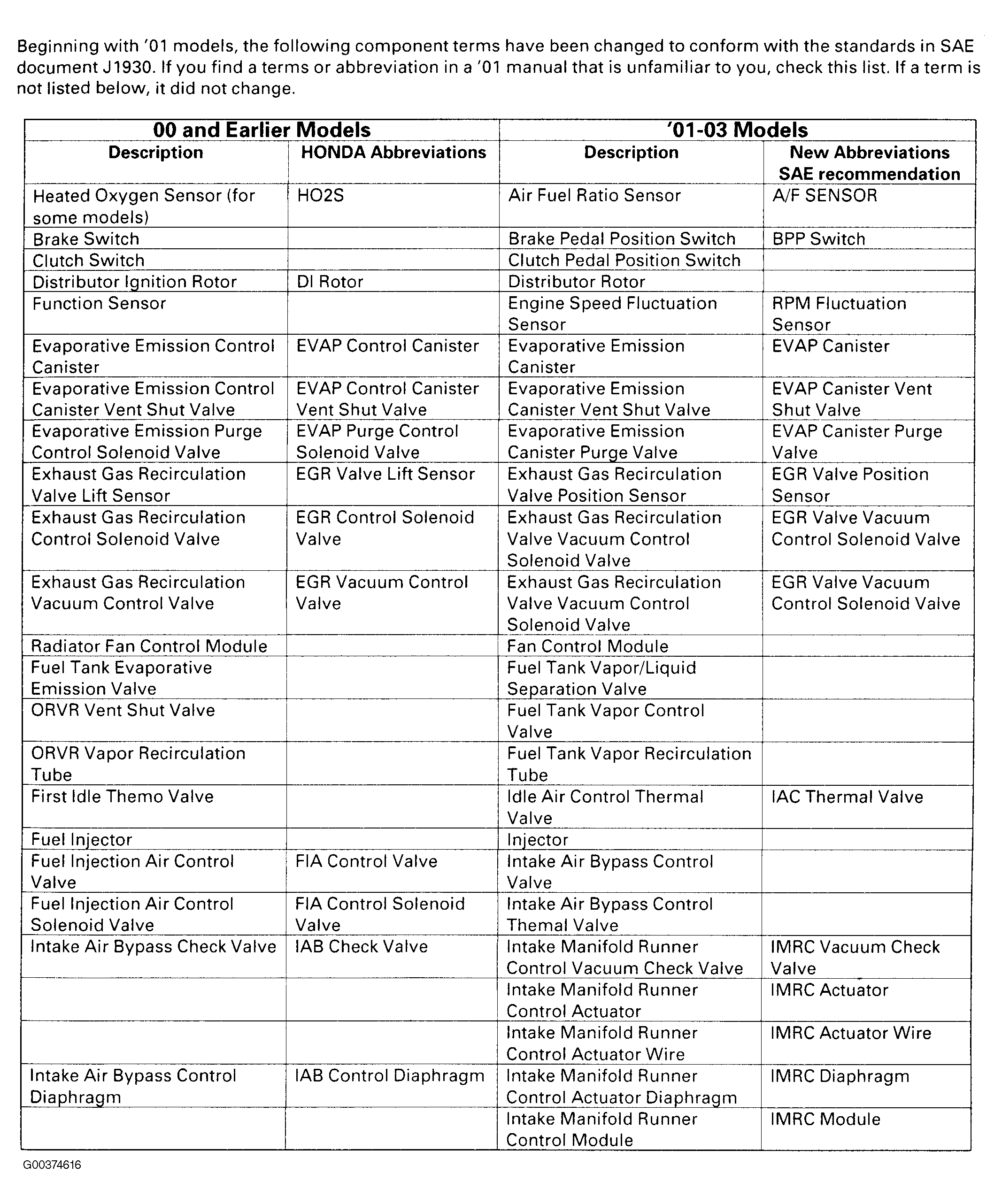

Fig 1: Revised Components Terms General Information (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

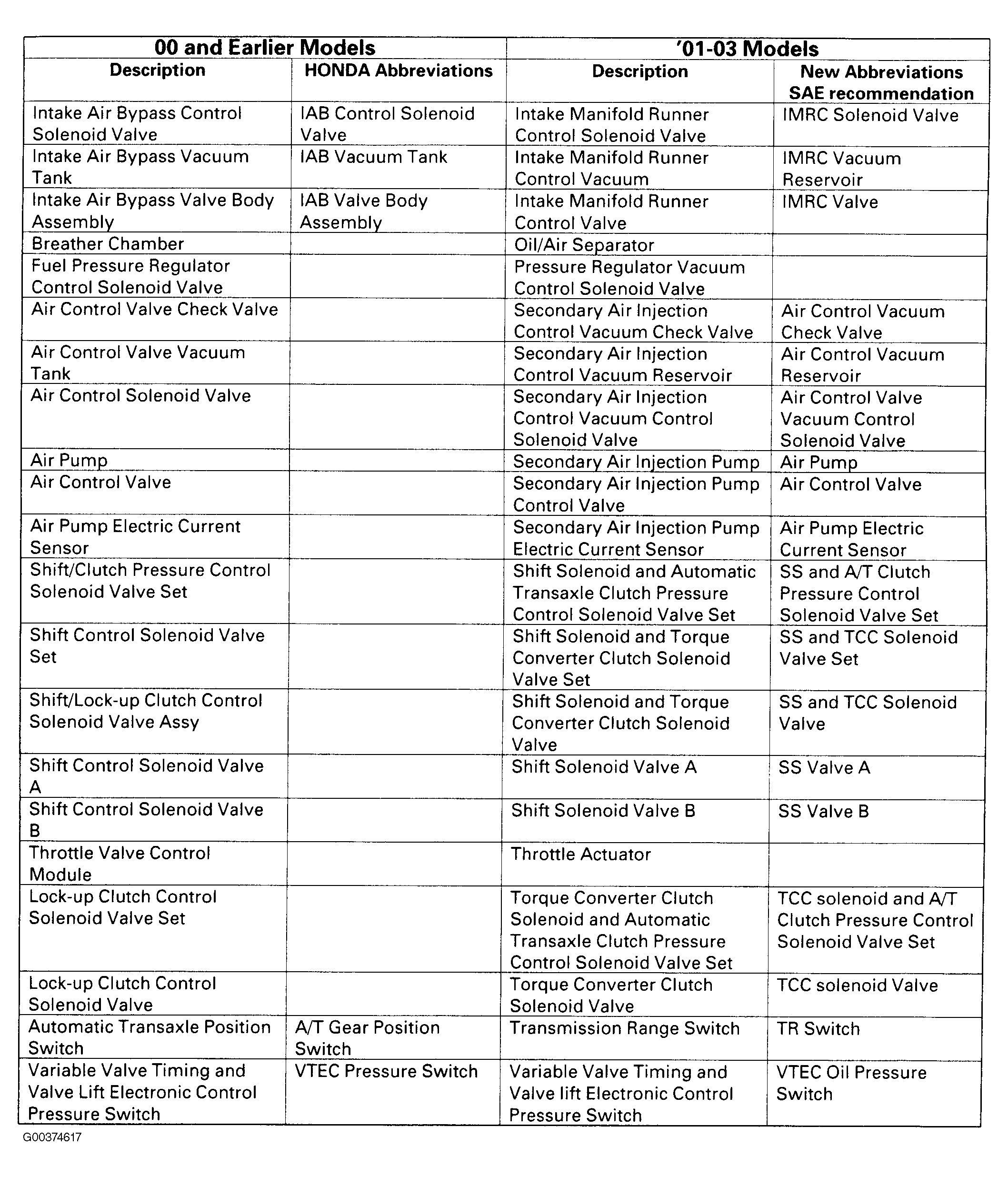

Fig 2: Revised Components Terms General Information (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
