Fluid Leakage Inspection

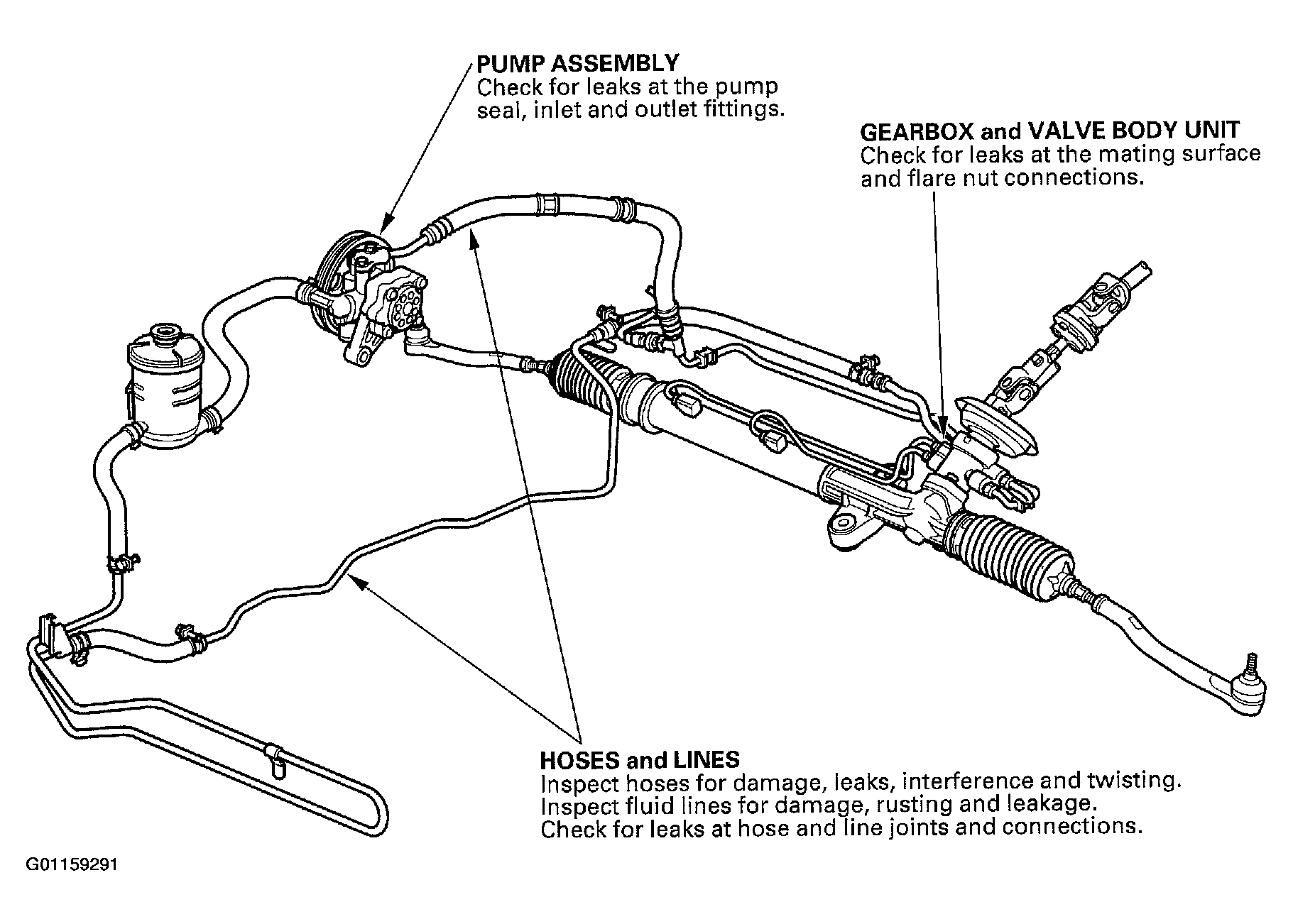

Fig 1: Identifying Fluid Leakage (1999-2003 - Premium Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

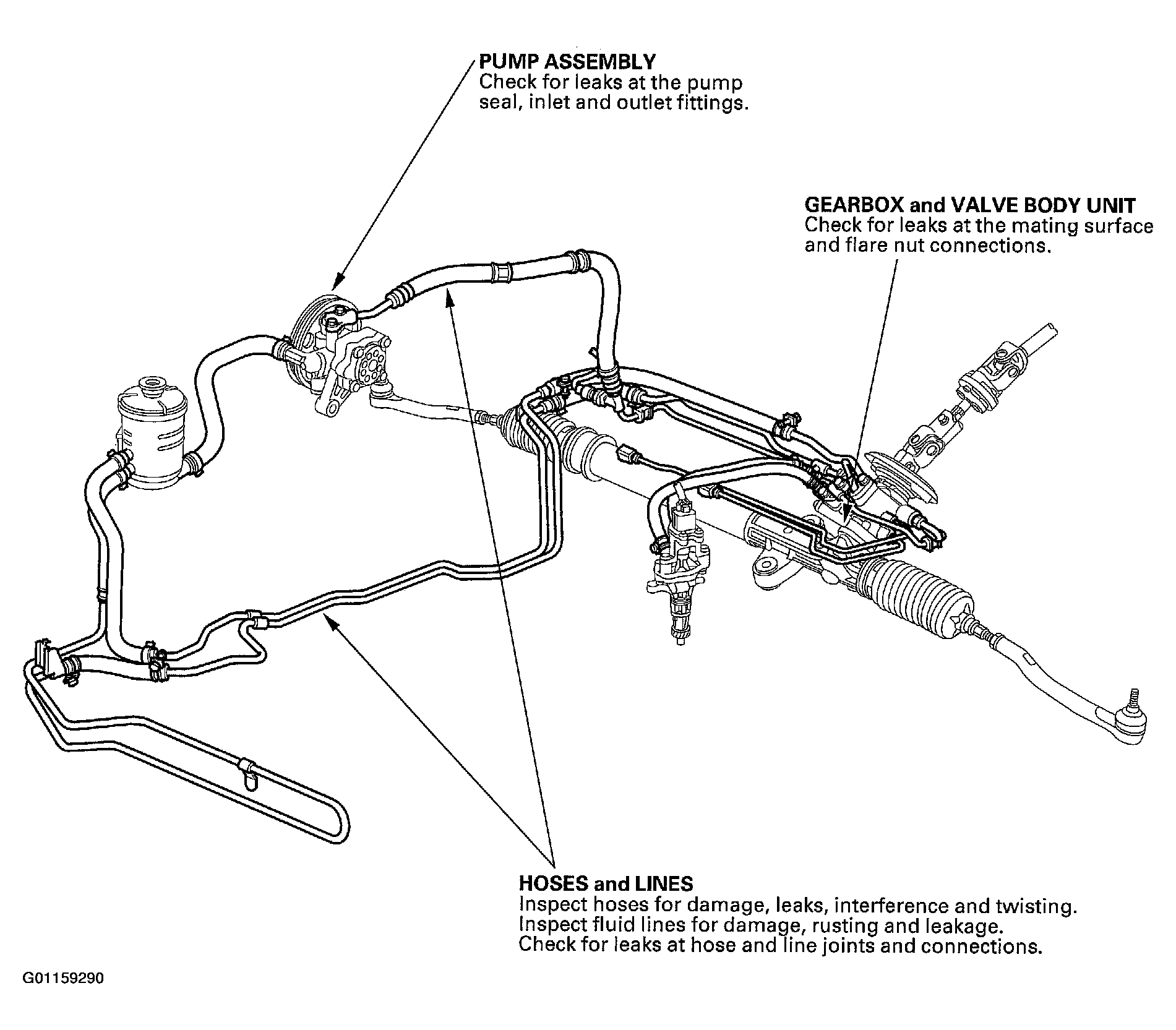

Fig 2: Identifying Fluid Leakage (2002-03 - Type-S Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
