ATF Temperature Sensor Replacement

  1. Disconnect the connector (A) from the ATF temperature sensor.

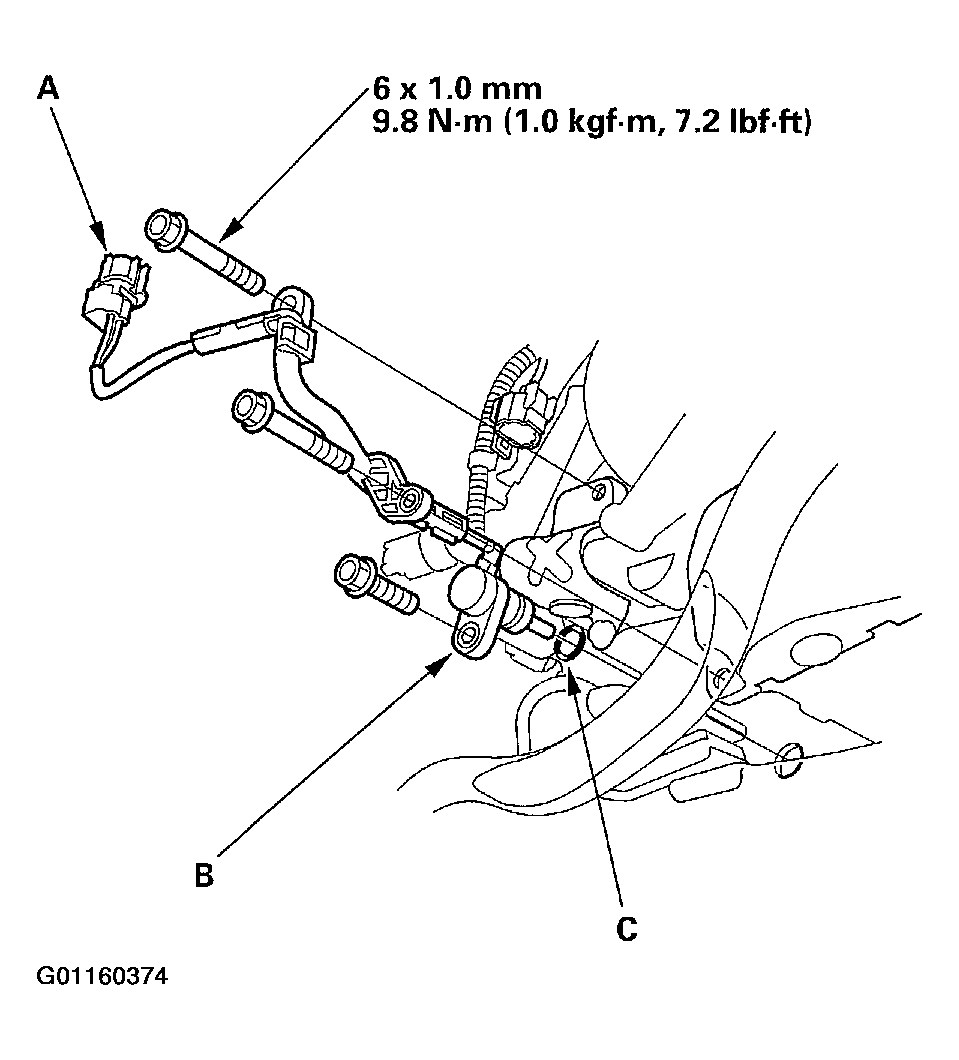

    Fig 1: Disconnecting Connector From ATF Temperature Sensor
    G01160374Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts securing the sensor harness clamp and ATF temperature sensor, then remove the ATF temperature sensor (B).
  3. Install the new ATF temperature sensor with a new O-ring (C).
  4. Install the harness clamp, then connect the connector.
