Automatic Transmission Diagnosis
›
System Description
›
Electronic Control System
›
Electronic Controls Location
Electronic Controls Location

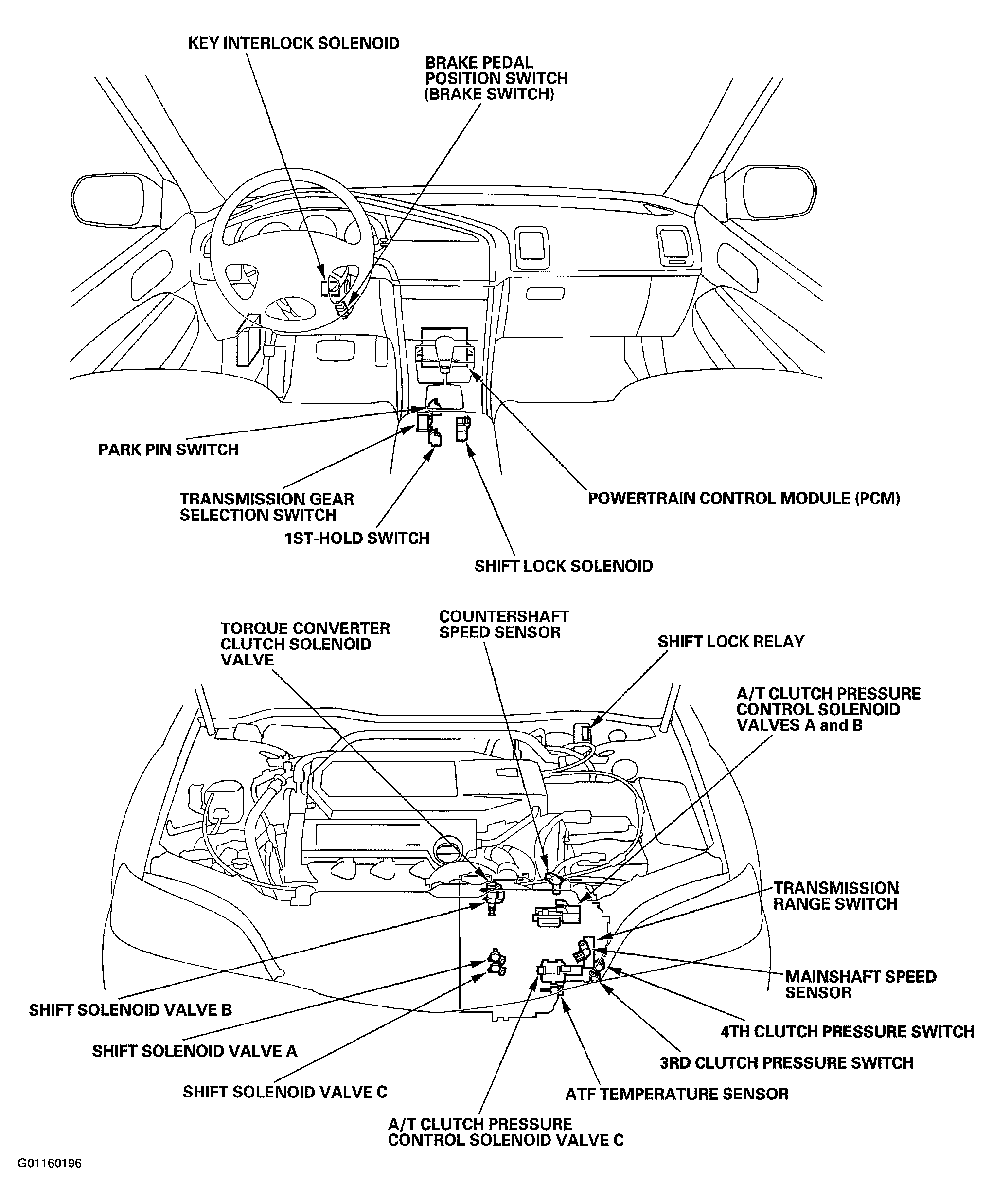

Fig 1: Electronic Controls Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
