C441 Connector End View
C441 Connector End View

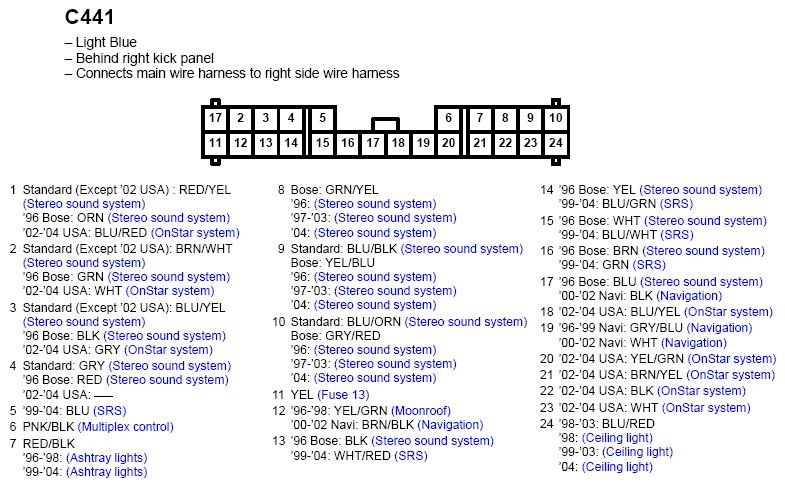

Fig 1: C441 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
