Self-Diagnostic System: Notes

WARNING: This page is about a different car, the 2000 Acura Integra. However, it is still accessible from the selected car via links, so may be relevant.

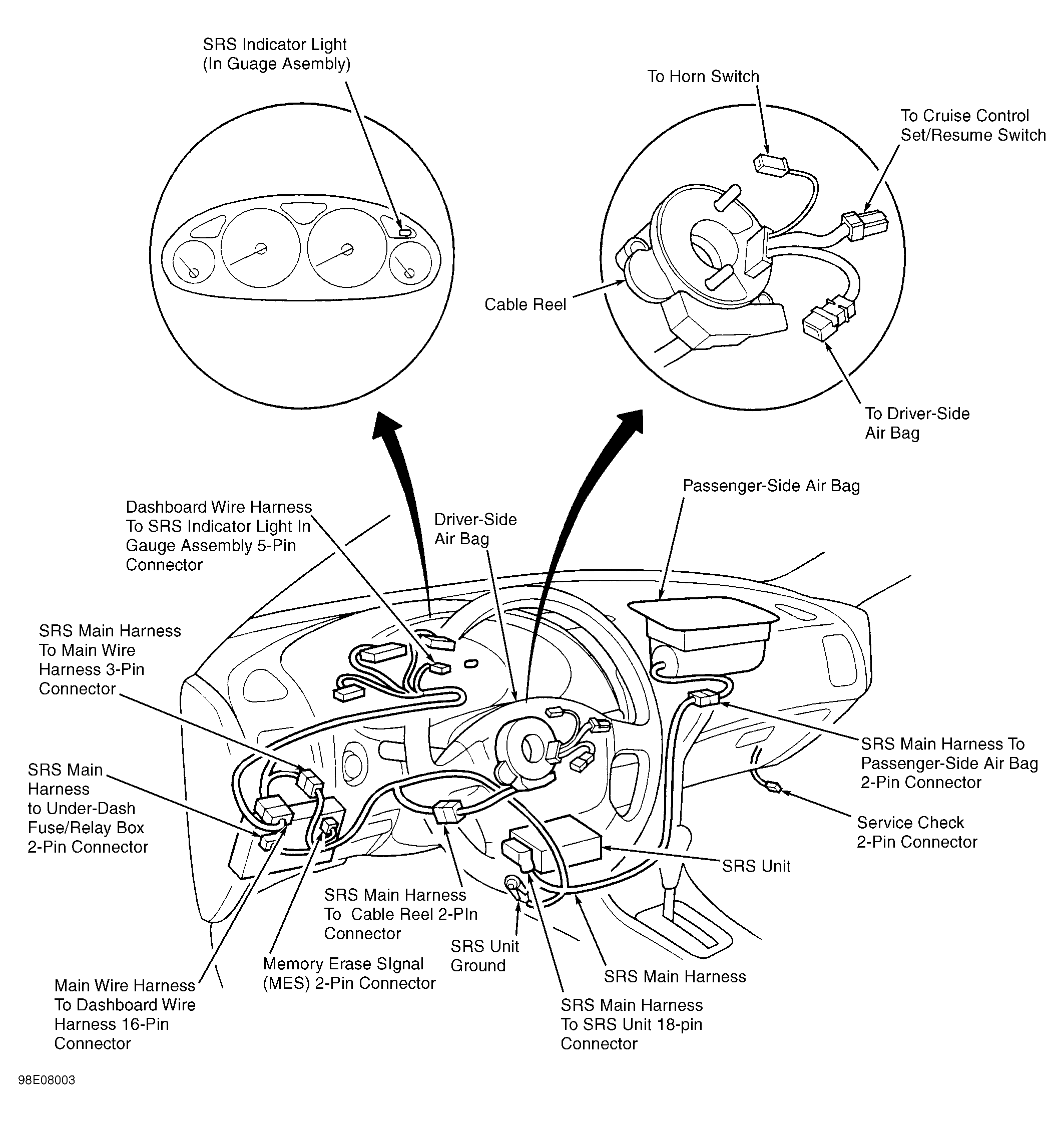

SRS includes a self-diagnostic function that checks system for faults in SRS components and related wiring. A fault exists if SRS indicator light on instrument cluster continues to glow more than 6 seconds after ignition is turned on, or glows or flashes while vehicle is driven. See Figure.
