Multi-Information Display Unit Connector End View
Multi-Information Display Unit Connector End View

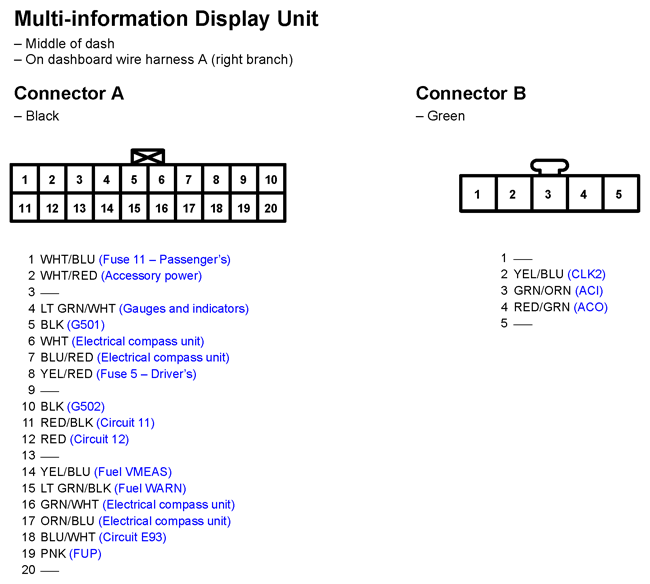

Fig 1: Multi-Information Display Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
