IMRC Unit Connector End View
IMRC Unit Connector End View

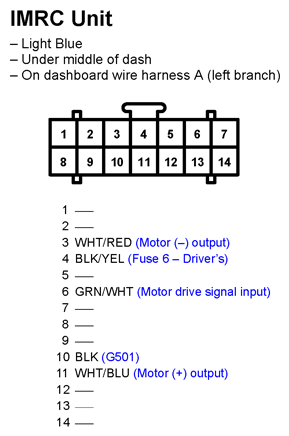

Fig 1: IMRC Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
