VSS Replacement

  1. Remove the intake resonator.
  2. Disconnect the 3P connector (A) from the vehicle speed sensor (VSS) (B).

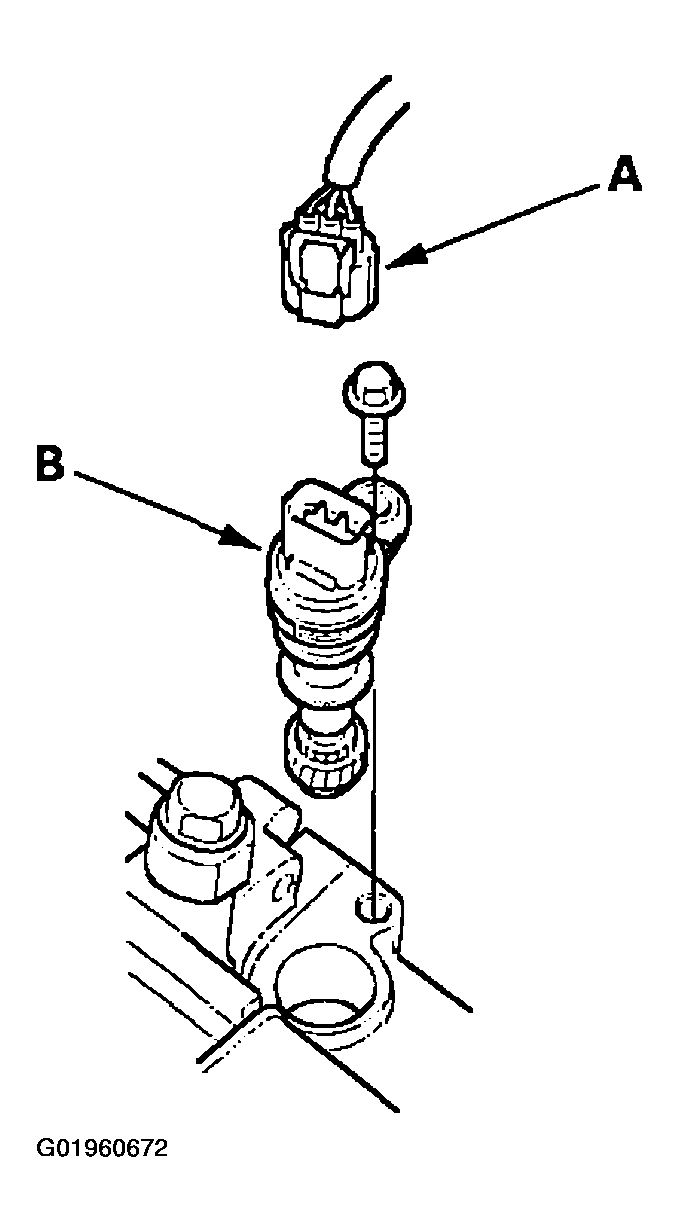

    Fig 1: Disconnecting Connector From VSS
    G01960672
  3. Remove the mounting bolt, then remove the VSS.
  4. Install the VSS in the reverse order of removal.
