Stereo Amplifier Replacement

  1. Open the trunk lid.
  2. Pull away the right trunk side trim panel .
  3. Disconnect the 26P connector (A) from the stereo amplifter (B).

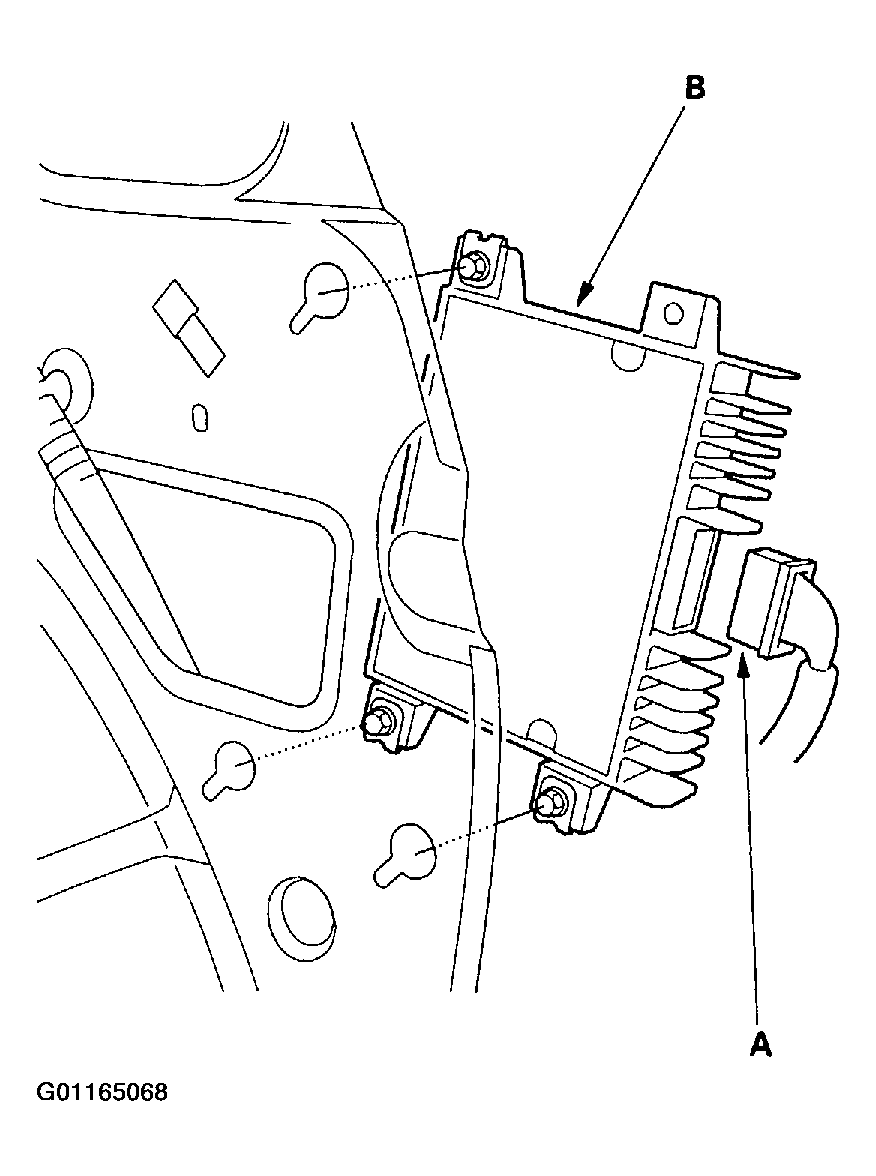

    Fig 1: Disconnecting The 26P Connector From The Stereo Amplifier
    G01165068Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Loosen the three mounting bolts and remove the stereo amplifier.
  5. Install the amplifier in the reverse order of removal.
