Cable Reel Connector End View
Cable Reel Connector End View

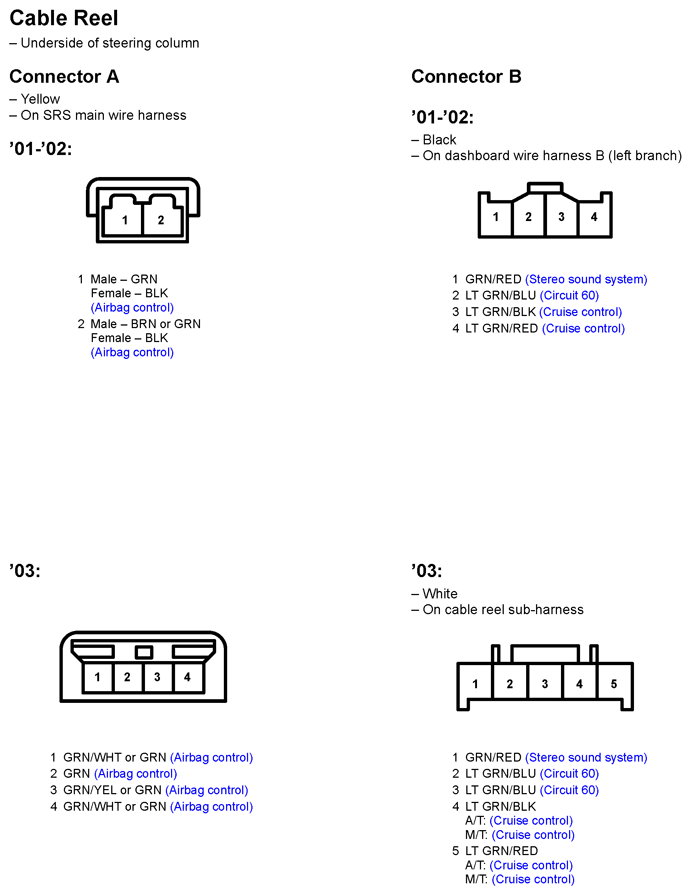

Fig 1: Cable Reel Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
