Component Locations

NOTE: For location of cooling fan system components, see Fig 1 .

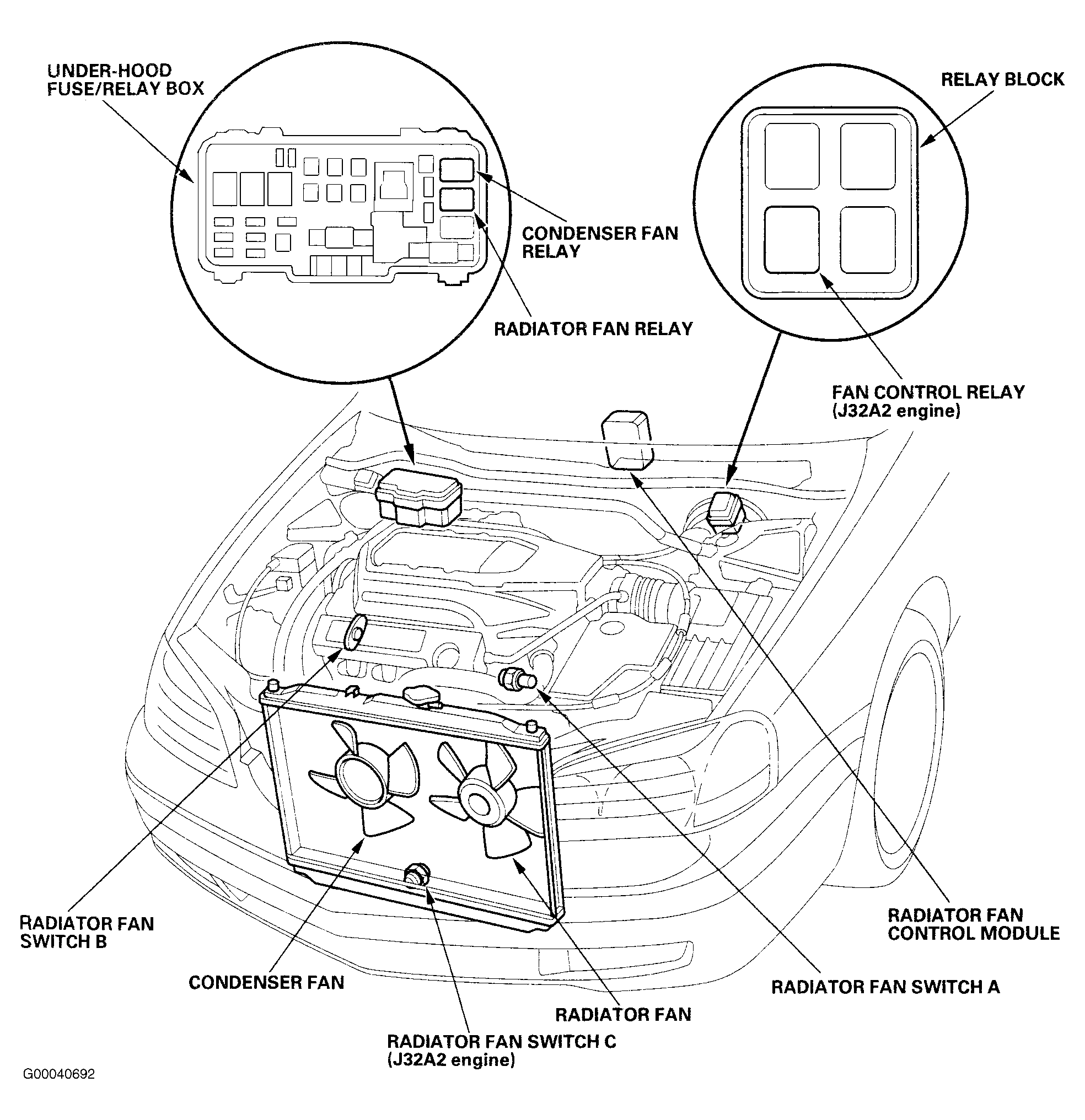

Fig 1: Locating Cooling Fan Components
G00040692Courtesy of AMERICAN HONDA MOTOR CO., INC.
