PCM Connector End View
PCM Connector End View

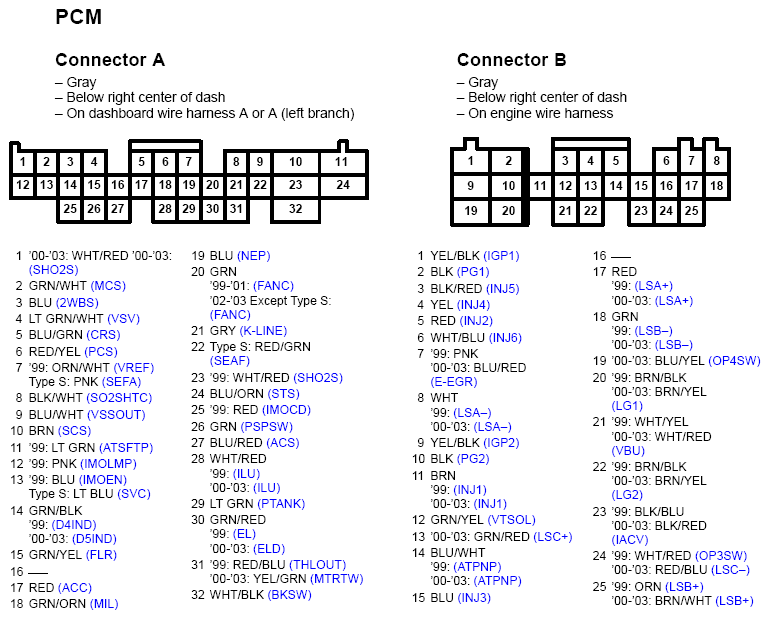

Fig 1: PCM Connector End View (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

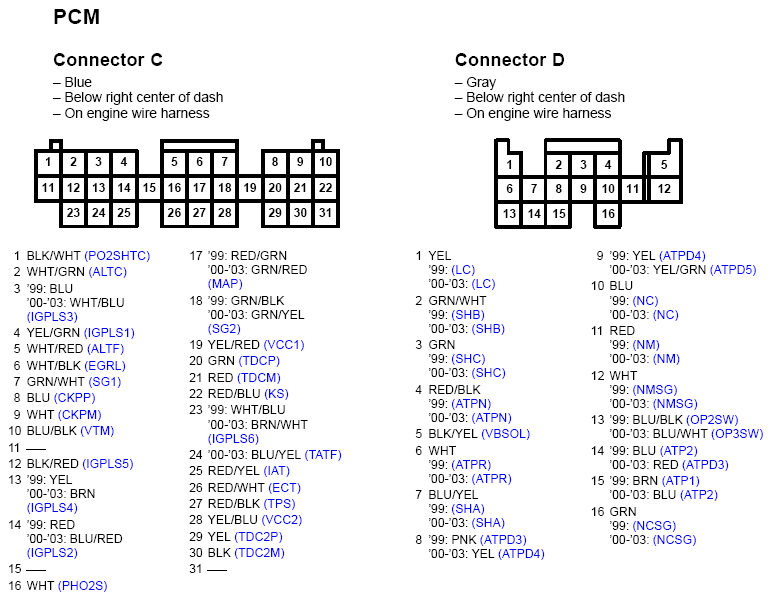

Fig 2: PCM Connector End View (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

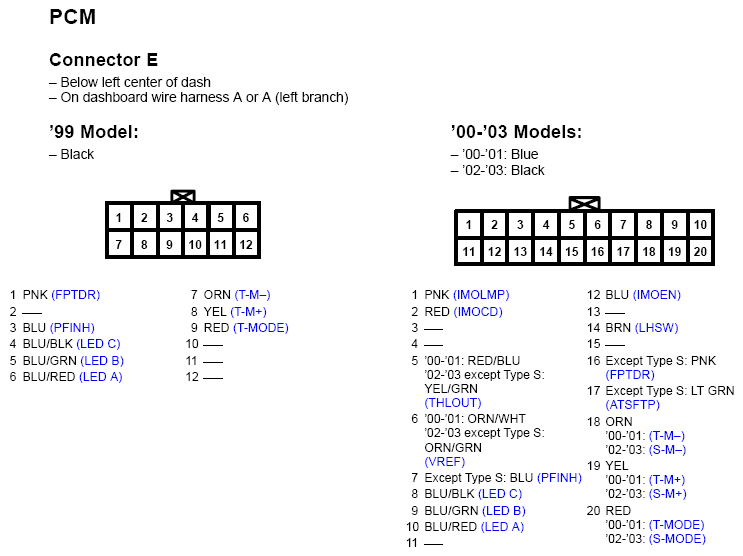

Fig 3: PCM Connector End View (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
